What are the advantages of using a gate valve?

You want a tool that works well and fits many jobs. The gate valve is special because it seals better, lasts longer, and keeps people safe. Here is how experts rate its good points:

More people want gate valves in factories. People who make and use materials like how they move liquids. Pick this valve if you want things to be safe, fast, and save money for a long time.

Key Takeaways

• Gate valves seal well. This stops leaks and saves money.

• They last a long time. They need less fixing. This saves money on repairs.

• Smart technology lets you watch them all the time. This helps you spot problems early.

• Gate valves let lots of water flow through. They do not lose much pressure. This makes systems work better.

• Picking the right gate valve, like rising or non-rising stem, makes things safer. It also makes them easier to use.

• Doing regular checks and adding oil helps gate valves last longer.

• Gate valves can be used in many ways. They work for water supply and big pipes in factories.

• Using strong materials for gate valves helps them handle tough places. It also makes them last longer.

Gate Valve Types

When you pick a gate valve, you need the right type. Each kind has its own good points. Choosing the right one helps you save time and money. It also makes your work easier.

Rising Stem Gate Valves

Rising stem gate valves have a big benefit. You can tell if the valve is open or closed by looking at the stem. This makes your job safer and simpler.

Visual Position Indicator

You do not have to guess if the valve is open. The stem goes up when you open the valve. It goes down when you close it. This helps you avoid mistakes. You can check the valve from far away. This saves time and stops errors.

Corrosive Fluid Applications

If you use harsh fluids, rising stem gate valves help protect your system. The stem is not in the flow path, so chemicals do not hurt it. This means the valve lasts longer. You will fix it less often. Your system works better and does not stop as much.

Tip: Use rising stem gate valves if you need to check the valve often or work with tough fluids.

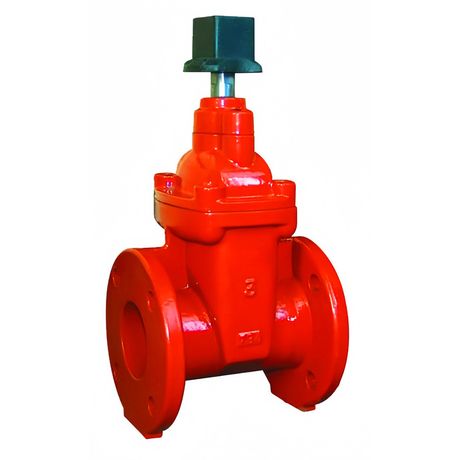

Non-Rising Stem Gate Valves

Non-rising stem gate valves are best for small spaces. The stem does not move up or down. It just turns in place. This makes it good for tight spots.

Space-Saving Design

You can put these valves where there is not much room above. The stem stays inside the valve body. You do not need extra space on top. These valves work well in buried pipes or crowded rooms.

Clean Fluid Uses

Non-rising stem gate valves work best with clean fluids. The stem sits in the flow path, so harsh chemicals can wear it out. For water or other clean stuff, this valve works well.

Note: Pick non-rising stem gate valves if you need to save space and use clean fluids.

Internal Structure Variations

Gate valves have different inside designs. Each one changes how the valve works and how long it lasts.

Single, Double, Elastic, Parallel Plate

You can choose single gate, double gate, elastic gate, or parallel plate types. Each one has special features:

You should pick the inside design that fits your needs. Double gate is best for high pressure. Elastic or parallel plate types seal better.

When you know about these types, you can make better choices. The right gate valve keeps your system safe, works well, and saves money.

You can see rising stem valves are more flexible and last longer. Non-rising stem valves are great for small spaces with clean fluids. Pick the type that fits your job for the best results.

Key Advantages of Gate Valves

Low Fluid Resistance

Gate valves help your system work better. They let liquids move easily through the valve. The fluid does not have to turn or twist. This keeps the flow fast and smooth. The straight path inside the valve helps with this.

Straight-Through Flow Path

When you open a gate valve, the liquid goes straight. It does not slow down or lose pressure. This is good if you need lots of liquid to move quickly.

• Globe valves slow down the fluid much more than gate valves.

• Ball valves slow it less than globe valves, but gate valves are best for easy flow.

Gate valves help you save energy and make your system work well. You will see less pressure drop and better results.

Superior Sealing Performance

Gate valves are good at stopping leaks. They close tight and keep the fluid inside. This helps protect your machines and saves money.

Leak Prevention

Gate valves work well even in hard jobs. For example, a DN300 slab gate valve did great in tests. Engineers made the gate plate better, and it passed over 100 pressure tests with no leaks. Gate valves can handle high pressure and stop leaks.

Gate valves keep your system safe and help you avoid repairs. Their strong seal lets you worry less.

Bidirectional Flow

Gate valves let you control flow both ways. You do not have to think about which way the liquid goes. This makes it easier to set up your pipes.

Flexible Installation

Gate valves seal well no matter which way the fluid moves. You can use them in pipes where the direction changes. The table below shows how they work with flow in both directions:

Gate valves give you more choices. They fit many systems and make your job easier.

High Capacity Flow

You want your system to move large amounts of fluid quickly. Gate valves give you this power. When you open a gate valve, the full pipe size becomes available for flow. The design allows liquids, gases, or slurries to pass through without squeezing or slowing down. You get the most out of your pipeline.

Minimal Head Loss

Gate valves help you keep pressure strong. The straight-through path inside the valve means fluid does not twist or turn. This design reduces head loss. Your pumps work less, and you save energy. You see better results in water supply, oil, and gas systems. If you need high flow rates and low pressure drop, gate valves are the smart choice.

Tip: Choose gate valves for jobs that demand high volume and steady pressure. You will notice smoother operation and fewer problems with flow.

Simple Operation and Design

You want equipment that works easily and lasts long. Gate valves offer a simple design with fewer moving parts. You do not need special tools or skills to operate them. The wheel or handle lets you open or close the valve with a simple turn.

Easy Handling and Maintenance

Gate valves make your job easier. You spend less time on repairs. Regular checks and basic care keep them working well. Many users report that gate valves need less maintenance than other types. The simple structure means fewer breakdowns and lower costs. You avoid long downtimes and keep your system running.

• You can inspect gate valves quickly.

• You do not need to replace parts often.

• You save money on service and repairs.

Note: Gate valves help you focus on your work, not on fixing equipment. Their easy handling and low maintenance make them a top pick for busy operations.

If you want a valve that gives you high flow, low pressure loss, and simple care, gate valves deliver. You get reliable performance and peace of mind.

Gate Valve Applications

Industrial Pipelines

You want your industrial pipeline to run smoothly and safely. Gate valves help you reach that goal. These valves handle high flow rates with ease. You can use them in many industries, from manufacturing to chemical processing. Gate valves work well with liquids, gases, and even slurries. You get reliable shut-off and simple operation every time.

• Gate valves fit perfectly in irrigation systems. They move large amounts of water quickly.

• You can trust them with slurries, heavy oils, light grease, and varnish.

• Many factories choose gate valves for non-flammable liquids because they last longer and need less maintenance.

When you install gate valves, you make your system more efficient. You also reduce downtime and save money on repairs. If you want a valve that stands up to tough jobs, gate valves are the smart choice.

Tip: Choose gate valves for pipelines that need strong, steady flow and easy shut-off.

Water Supply Systems

You need clean, safe water in your home, business, or city. Gate valves help you control water flow with confidence. You can turn water on or off quickly and easily. These valves meet strict standards, so you know they will perform well.

• Gate valves give you on/off control in water supply systems.

• They follow important standards like ANSI/AWWA C500, C509, and C515.

• The C509 standard means no leaks and better corrosion protection.

• The C515 standard uses ductile iron for more strength and less weight.

You get a valve that lasts longer and keeps your water system safe. Gate valves resist rust and damage, even after years of use. You can trust them in underground pipes, water treatment plants, and municipal water lines.

Note: Gate valves help you deliver water where it is needed, without leaks or worries.

Oil, Gas, and Steam Lines

You want safety and efficiency in oil, gas, and steam lines. Gate valves give you both. Their design lets fluids move with almost no resistance. You save energy and keep your system running at top speed. Gate valves also seal tightly, so you avoid leaks and spills.

You can use gate valves in pipelines that carry oil, natural gas, or steam. They handle high pressure and temperature changes with ease. You get peace of mind knowing your system is protected.

Gate valves help you keep your oil, gas, and steam lines safe, efficient, and easy to maintain.

Slurry and Granular Media

You need a valve that handles hard jobs. Moving slurry or granular media is not easy. These materials are thick, gritty, and sometimes can damage metal. Picking the wrong valve can cause clogs, leaks, and costly stops. Gate valves help you control these tough flows.

Gate valves work well with slurries and granular materials. Slurries mix solids and liquids. Granular media includes sand, pellets, or powders. The straight-through design lets thick stuff pass without getting stuck. When open, the valve gives a clear path. This means less buildup and smoother work.

Many industries use gate valves for these reasons:

• Mining uses them to move ore slurries and tailings.

• Wastewater plants use them for sludge and grit.

• Food factories use them for grains, sugar, and bulk solids.

But there are problems with these jobs. Gate valves face:

• Abrasive Wear: Slurries and granular media can wear down parts. You can fix this by picking valves made with strong steel or tough materials. This helps your valve last longer and saves money.

• Blockages and Clogging: Solids can block the valve. You can stop this with regular checks and by picking valves that clean themselves. This keeps your system working and avoids shutdowns.

• Corrosion: Some slurries have chemicals that harm metal. You protect your valve by picking ones with coatings or special materials. This means fewer leaks and longer life.

• Seal Deterioration: Seals can wear out faster with rough materials. Good seals and regular checks help keep leaks away and performance strong.

• Pressure and Temperature Variations: Slurries often flow with changing conditions. You need valves rated for the right pressure and temperature. Pressure relief devices add extra safety.

Tip: Always pick a gate valve that matches your media. Look for tough seats, strong seals, and designs that are easy to clean.

When you pick the right gate valve, you get reliable shut-off and smooth flow. Even with hard materials, you cut downtime and save on repairs. Gate valves give you control and strength for slurry and granular media. Make a smart choice and let your system work well.

Comparison with Other Valves

Gate Valve vs Globe Valve

Flow Resistance and Sealing

You want your system to work well and use less energy. Gate valves let fluid go straight through. This means you lose less pressure. Globe valves slow the fluid down more. You need more power to push fluid through a globe valve.

Sealing is important too. Globe valves press down to seal tight. This keeps leaks away, even if the valve core moves. Gate valves use fluid pressure to close against the seat. If you do not close a gate valve all the way, leaks can happen. Globe valves have less friction and wear. They last longer in tough jobs.

Pick a gate valve for easy flow and low resistance. Choose a globe valve if you need tight sealing and good control.

Gate Valve vs Ball Valve

Space Efficiency and Maintenance

You want to save space and do less maintenance. Ball valves are smaller than gate valves. Their design fits tight spaces in your system. Gate valves are bigger and need more room to install.

Maintenance is important for saving money. Gate valves need regular care. You must lubricate the stem, check packing, and clean out dirt. Ball valves have fewer parts. Most ball valves do not need much care. You replace them when needed, which saves money. Ball valves last longer if you open and close them often.

Ball valves help you save time and money. Their small size and easy care make them a smart pick for busy places.

Gate Valve vs Butterfly Valve

Application Suitability

You want the best valve for each job. Butterfly valves are good when you need quick action and easy control. You turn a butterfly valve just a quarter turn to open or close it. This fast action helps in emergencies and keeps your system safe.

Butterfly valves work in many industries. You see them in food factories, water plants, and HVAC systems. They respond fast and need less space. You get good flow control and fewer repairs.

• Quick action with a simple quarter-turn for opening and closing.

• Gives faster response in important jobs, like emergency shut-off.

• Works in many industries, including food and beverage.

Pick a gate valve for strong shut-off and high flow. Choose a butterfly valve for speed, saving space, and easy control.

Limitations of Gate Valves

When you choose a valve for your system, you want to know both the strengths and the limits. Gate valves offer many benefits, but you should also understand where they may not fit your needs. Here are the main limitations you need to consider:

Slow Operation

Gate valves open and close slowly. You must turn the handwheel many times to move the gate up or down. This takes time and effort, especially in emergencies.

Not for Rapid Actuation

• Butterfly valves close quickly with just a quarter turn.

• Gate valves need more space and time to operate.

• You cannot use a gate valve if you need fast flow changes or quick shut-off.

If you work in a place where speed matters, like fire protection or emergency shut-off, you should look for a faster option. Ball and butterfly valves give you quick action and easy control.

Poor Throttling Control

You may want to control the flow rate in your system. Gate valves do not work well for this job. Their design makes it hard to adjust flow smoothly.

Seat and Disc Erosion

Research shows that using a gate valve for flow control can cause problems. The linear stem design creates turbulent flow and high-speed jets. This wears out the seat and disc much faster. You may need to replace the valve up to 40% sooner if you use it for throttling instead of just on/off control. Inconsistent flow rates can also signal trouble. If you see lower flow than expected, a partially closed gate valve could be the cause.

Tip: Use gate valves for full open or full close positions. Pick globe or butterfly valves for better flow control and longer life.

Maintenance Challenges

You want your equipment to last and work well. Gate valves can face maintenance issues, especially in large systems.

Potential for Scratches and Cavitation

Here are some common maintenance challenges:

Scratches on the seat or disc can lead to leaks. Cavitation, which happens when pressure drops inside the valve, can damage parts and shorten the valve’s life. You may also face problems with temperature compliance, sealing material failure, or actuator issues if your system runs in extreme conditions.

Regular checks and cleaning help you avoid most problems. Always pick the right valve for your system’s needs.

You want a valve that fits your job, works fast when needed, and stays easy to maintain. Knowing these limits helps you make the best choice for your system.

Installation and Maintenance Tips

You want your gate valve to last a long time. Good installation and regular care help avoid problems. These steps keep your system working well. Follow these tips to get the best results from your gate valve.

Proper Opening and Closing

Gate valves work best when used the right way. Always open or close the valve all the way. If you leave it partly open, it wears out faster. Move the valve slowly to protect your pipes and equipment.

Prevent Hydraulic Shock

Hydraulic shock can hurt your system. Opening or closing the valve too fast causes sudden pressure changes. This can make leaks or break parts. Operate the valve slowly to stop this. Take your time so the pressure can adjust.

Tip: Turn the handwheel slowly. This protects your pipes and makes your valve last longer.

Lubrication and Cooling

Lubrication helps your gate valve move easily. It lowers friction and stops parts from sticking. Cooling helps the valve deal with heat and keeps it safe.

Reduce Erosion and Wear

You can pick different kinds of lubricants. Liquid lubricants make a film that stops wear. Solid lubricants, like graphite, work well in high heat and pressure. Lubrication also cools the valve by moving heat away.

• Lubrication lowers friction and stops sticking.

• It helps cool the valve during use.

• Liquid lubricants make a film and protect against wear.

• Solid lubricants, like graphite, work well in hot and high-pressure jobs.

Note: Lubricate your valve often. This helps it last longer and saves money on repairs.

Leak Prevention

Leaks waste product and can be dangerous. Check your valve often and use the right materials to keep it tight.

Gasket Care

Gaskets seal the valve and stop leaks. Look at them often and change them if they look worn. Protect your valve from rust by using anti-rust paint and coatings. Keep working temperatures below 250°C to stop softening or bending.

• Make a schedule to check your valve often. This helps find problems early and stops leaks before they start.

Callout: Take care of gaskets and coatings. You stop leaks early and keep your system safe.

You can help your gate valve last longer and work better. Use these tips to protect your equipment and keep your operation strong.

Choosing the Right Gate Valve

You want your system to run smoothly and avoid costly mistakes. Picking the right gate valve is the first step. You need to match the valve to your job, your environment, and your budget. Let’s break down what you should look for.

Application Requirements

Start by thinking about where you will use the gate valve. Every job has its own demands. You must check these key points:

1. Operating Conditions: Look at the temperature, pressure, and flow rate. Choose a gate valve that can handle these conditions without breaking down.

2. Valve Size: Match the valve size to your pipe and flow needs. The right size keeps your system efficient and stops pressure loss.

3. Valve Design: Decide if you need a rising stem or non-rising stem. Rising stem valves are easier to check, while non-rising stem valves fit tight spaces.

4. End Connections: Pick the right connection type—flanged, threaded, or welded. This makes installation easier and safer.

5. Industry Standards: Make sure your valve meets important standards and certifications. This guarantees quality and safety.

Tip: Always check your system’s requirements before buying. The right gate valve prevents leaks, saves energy, and keeps your operation safe.

Material and Size Selection

You want your valve to last and perform well. The material and size matter a lot. Here’s what you need to know:

• The material affects how well the valve resists corrosion and handles heat. Stainless steel works well for harsh chemicals. Cast iron is good for water and mild fluids.

• The right size ensures the valve fits your pipe and handles the flow. If you pick a valve that’s too small, you risk leaks and failures.

• Choosing the best material lowers maintenance and keeps costs down over time.

• Valves that aren’t rated for your pressure or temperature can fail. This leads to downtime and expensive repairs.

Note: Pick materials that match your fluid and environment. The right choice keeps your system running longer.

Cost and Efficiency Considerations

You want to get the most value for your money. Gate valves cost more upfront than butterfly valves, but they last longer and need less maintenance. Think about these points:

• Gate valves have a complex design, so they cost more to buy and install.

• Butterfly valves are cheaper and easier to maintain, but may not last as long in tough jobs.

• The initial cost affects your budget, but the total cost of ownership matters more. Gate valves save money over time because they rarely need repairs.

• Efficient valves reduce energy use and keep your system running without interruptions.

If you want reliability and long-term savings, invest in a quality gate valve. You will see fewer breakdowns and better performance.

You can make a smart choice by matching your needs, picking the right material and size, and weighing the costs. The right gate valve gives you peace of mind and keeps your operation strong.

When you pick gate valves, you get strong seals and easy flow. These valves work in many places, like water pipes or with thick slurries. Think about some important things before you choose:

1. What kind of fluid, its heat, and how much pressure it has.

2. How fast you need the valve to open or close.

3. How much pressure you can lose and how tight the seal must be.

4. How you will use the valve and what it will cost.

Think about your choices. For the best help, ask valve experts or companies you trust.

FAQ

What makes gate valves better for high-flow systems?

You get a full, straight path for liquids. This design lets you move large volumes quickly. You save energy and keep your system running strong.

Can you use gate valves for both directions of flow?

Yes! Gate valves work in both directions. You install them anywhere in your pipeline. You get flexible options and easy setup.

How do you know if a gate valve is open or closed?

Rising stem gate valves show you the position. The stem moves up when open, down when closed. You check the status at a glance.

Are gate valves easy to maintain?

You spend less time on repairs. The simple design means fewer parts to fix. Regular checks and lubrication keep your valve working longer.

Which industries use gate valves most?

You see gate valves in water supply, oil and gas, chemical plants, and mining. They handle tough jobs and keep your operation safe.

What materials work best for gate valves?

Pick the right material for your fluid. You get longer life and better performance.

Can gate valves help prevent leaks?

Gate valves seal tightly when closed. You avoid leaks and protect your system. You save money and keep your workplace safe.
