What is the difference between grooved and flanged connections?

Grooved vs Flanged Connections: Key Differences Explained

Compare grooved and flanged pipe connections for speed, cost, and use.

Have you ever thought about why some pipes go together fast, but others take a long time? I notice this difference all the time. Grooved fititng makes putting pipes together quick and easy. Flanged connections need more time and careful work. Picking the right fitting can change how much your project costs. It also affects how fast and strong it is. Look at this table to see how grooved fititng and flanged connections are different in important ways:

In this post, I will explain how each connection type works. I will help you pick the one that is best for you.

Key Takeaways

• Grooved fittings are quicker to put in and need less tools than flanged connections. This helps save time and money on work. Grooved systems are flexible and easy to fix. You can repair them fast by loosening two bolts. Flanged connections make very strong and stiff joints. These are best for jobs with high pressure or heat. Grooved fittings fit well in small spaces. They are good for projects that change a lot or need to finish fast. Pick the right connection for your project. Use grooved if you want speed and flexibility. Use flanged if you need strength and high pressure.

Quick Comparison

Key Differences

Grooved fititng and flanged connections work in different ways. Grooved systems are fast to put together. You only need two bolts, even for big pipes. There is no welding or special tools needed. This saves time and money. I saw a project finish much faster with grooved systems. It took less than half the time compared to flanged connections. This means less waiting and quicker jobs.

Flanged connections need more work. You have to line up many bolts. Big pipes can need over twenty bolts. You must tighten them in a star shape. This takes longer and needs skill. Flanged joints are heavy and large. They are hard to use in small spaces. They also make the pipeline heavier. This matters on ships or tall buildings.

Grooved fititng lets you move pipes around. You can turn pipes all the way around. Flexible couplings help with shaking or small mistakes in lining up. Flanged joints do not bend. If pipes do not match up, you must fix them. This slows down the work.

Grooved systems are easy to fix. You just take out two bolts to open a joint. You do not always need a new gasket. Flanged connections often need new gaskets. You must put them back together carefully to stop leaks. This takes more time and costs more.

Here is a table that shows the main differences:

Tip: Grooved systems are good if you want fast and easy pipe work. Flanged connections are better for strong and high-pressure jobs.

Pros and Cons

I always think about the good and bad points before I pick a connection. Here is what I learned from doing many jobs:

Grooved Fititng (Grooved Systems):

✅ Fast to install and saves lots of work time.

✅ No welding or threading, so it is safer and cooler.

✅ Flexible couplings help with shaking and small mistakes.

✅ Easy to fix—just take out two bolts.

✅ Lighter pipes are easier to move and carry.

✅ Works with steel, PVC, copper, and ductile iron pipes.

❌ May cost more at first, but the whole job costs less.

❌ Needs grooves done right or it might leak.

❌ Rigid couplings do not let pipes move in some cases.

Flanged Connections (Flanged):

✅ Very strong and good for high-pressure and hot pipes.

✅ Easy to take apart for fixing or changing.

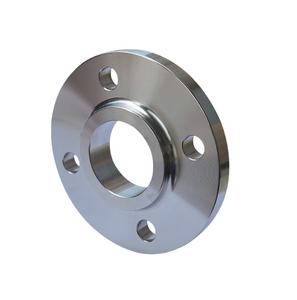

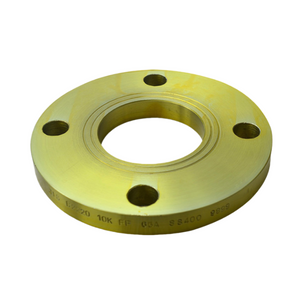

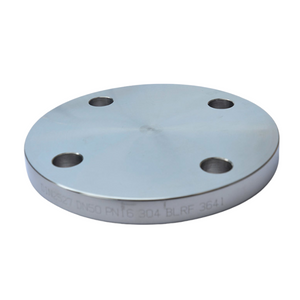

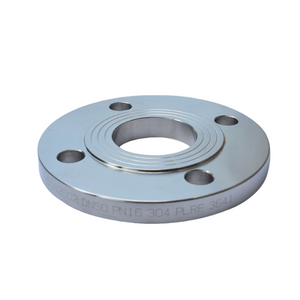

✅ Many types for different jobs (slip on, weld neck, socket weld, lap joint).

✅ Gaskets seal tight if put in the right way.

❌ Slow and hard to install, especially for big pipes.

❌ Heavy and big, so hard to move and cover.

❌ Needs perfect lining up and careful tightening to stop leaks.

❌ Gaskets must be changed when fixing, which takes more time.

Note: Grooved fititng is best when you need speed, movement, and easy fixing. Flanged connections are best when you need strength and pressure resistance.

How They Work

Grooved Fitting: How It Works

When I use grooved fititng, I start by preparing the pipe ends. I roll or cut grooves into each pipe. These grooves let the joint lock together. I slide a gasket over the grooved ends. This gasket sits between the pipes and forms a tight seal. Next, I place the coupling housing around the gasket and pipe ends. The housing fits into the grooves and holds everything in place. I tighten two bolts to clamp the joint. This method creates a strong, leak-proof connection. I like that grooved pipe joining spreads stress evenly across the joint. It lets the system handle movement and thermal changes. I can use rigid couplings for solid joints or flexible couplings for pipes that need to move. The ductile iron housing and precision gaskets make these joints reliable, even under high pressure. I always check the groove and gasket before assembly to keep the seal strong.

Flanged Connections: How They Work

When I work with flanged connections, I attach flanged ends to the pipes. I either weld or thread the flange onto each pipe. I place a gasket between the flanged ends. Then, I line up the bolt holes and insert the bolts. I tighten the bolts in a specific pattern, usually a star shape. This step is important. If I do not tighten the bolts correctly, the gasket might not seal. Flanged systems rely on the right amount of bolt tension. Too little, and the joint leaks. Too much, and I can damage the gasket or flange. I follow industry guidelines, like ASME PCC-1, to get it right. Flanged joints work well in high-pressure and high-temperature jobs. I see them often in oil, gas, and chemical plants. These joints need careful assembly and trained workers.

Main Functional Differences

I notice big differences between grooved pipe joining and flanged systems. Grooved systems use a mechanical lock with grooves and a gasket. They allow for some movement and are quick to assemble. Flanged systems use bolts to press two flanged ends together with a gasket. They create a rigid joint. Grooved joints need only two bolts, while flanged joints can need many. Grooved pipe joining lets me handle vibration and misalignment better. Flanged systems give me a very strong, stiff joint but need more time and skill. I choose grooved when I want speed and flexibility. I pick flanged when I need strength and a rigid connection.

Installation and Speed

Grooved Fitting Installation

I always notice how quickly I can finish grooved fitting installation. I start by preparing the pipe ends. I use a grooving machine to make a groove on each pipe. I check the pipe for burrs and make sure the ends are straight. Next, I slide a gasket over the grooved ends. I place the coupling housing around the gasket and pipe. I tighten two bolts. The joint locks in place. I inspect the clamp and gasket to make sure everything fits. I find that grooved fittings work well in tight spaces. I can adjust the pipes easily. I do not need welding or threading. This makes the process safer and faster. In a recent HVAC project, I finished over 120 grooved couplings in less than half the time compared to other methods.

Tip: Always check the groove depth and gasket position before tightening the bolts. This helps prevent leaks and keeps the joint strong.

Flanged Connections Installation

When I install flanged connections, I spend more time on each step. I weld or thread the flange onto the pipe ends. I line up the bolt holes. I place a gasket between the flanges. I insert many bolts and tighten them in a star pattern. I use special tools like welding machines, cutting machines, and gas cylinders. Skilled workers must handle these tools. Flanged installation takes up more space. The process feels bulky and slow. I often need to replace gaskets during repairs. I see flanged connections used in places where high pressure matters most.

Time, Tools, and Labor

I compare grooved and flanged installation times on every job. The difference stands out. Here is a table that shows average installation times for each method:

Grooved fittings need simple tools: grooving machines, wrenches, and hole openers. Ordinary workers can do the job after basic training. Flanged connections require welding machines, power cables, and skilled labor. The process is more complex. Grooved systems save labor and reduce hazards. I find it easier to work in confined spaces using grooved fittings. Flanged connections slow me down and need more careful alignment.

Note: Grooved installation is safer and faster. Flanged installation needs more skill, time, and space.

Maintenance and Reliability

Maintenance Needs

When I work on a pipeline, I always check the maintenance needs of each connection type. Grooved fittings make my job easier. I only need to inspect the gasket and make sure the bolts stay tight. Most of the time, I can spot problems right away. If I see a leak or feel a loose joint, I can fix it fast. I do not need to cut or destroy anything. I just loosen the bolts, check the gasket, and put it back together. This saves time and keeps the pipeline running. I also like that the parts are standard. I do not need to keep many different spares in stock.

Here is what I usually do for grooved fittings:

• Inspect the gasket for wear or damage.

• Check bolt tightness, especially in high-pressure areas.

• Remove and replace the gasket quickly if needed.

• Use visual checks and pressure tests to confirm joint integrity.

• Disassemble and reassemble without damaging the parts.

Flanged connections take more effort. I must look for corrosion, scratches, or dents on the flange face. I also check the gasket for signs of blowout or chemical damage. Bolts need careful inspection. Sometimes, I find stretched or corroded bolts. I use special tools to check for hidden cracks. When I take apart a flange, I often need to scrape off the old gasket and clean the surfaces. This takes longer and can slow down the whole pipeline.

Durability and Common Issues

I trust grooved fittings for long-term use in most pipelines. They handle pressure up to 285 psi and resist corrosion well. The epoxy coating protects the joints from rust and suspended solids. I notice that these fittings stay light and easy to move, even after years in service. When I need to work on a high-pressure pipeline, I see that grooved fittings keep their seal and do not leak easily.

Flanged connections also last a long time, especially in high-pressure and high-temperature jobs. They use strong materials and thick gaskets. However, I see more problems with corrosion and surface damage. Flanges can warp or crack if the pressure changes too fast. I often find rust spots or pitting on old flanges. Gaskets sometimes stick to the flange face, making them hard to remove. I must polish or treat the surface before putting the joint back together.

Here is a table that shows what I see most often:

Tip: I always recommend regular inspection for both types of joints, especially in high-pressure pipelines. This keeps the system safe and reliable.

Performance Factors

Vibration and Flexibility

I always check how joints handle shaking and movement. Grooved pipe joining is great for this. Flexible grooved couplings soak up vibration and let pipes move a bit. This helps when pipes get hot, pumps shake, or there are small earthquakes. I have seen flexible grooved systems make pipelines quieter and stop shaking from spreading. The elastomeric gaskets inside these joints take in pressure changes and keep things steady. Rigid grooved couplings work more like flanged systems. They keep pipes tight and do not let them move. Flanged joints bounce vibration back. This can make the pipeline shake more with heavy machines. I pick flexible grooved joints for branch lines or pump spots where pipes might move.

• Flexible grooved couplings soak up shaking and let pipes stretch.

• Flanged connections stay stiff and can pass shaking through the pipeline.

• Grooved joints help pipelines deal with pressure changes and movement.

Alignment and Sealing

Grooved pipe joining is much easier for lining up pipes. I can turn the pipe all the way around. I do not have to match up bolt holes like with a flange. This saves time and makes it easy to work in small spaces. The way they seal is different too. Grooved joints use a strong elastomer gasket inside the coupling. This gasket makes a tight seal and does not need much care. Flanged systems need bolts tightened just right to seal the gasket between flanges. If I do not tighten them enough, leaks can happen. Grooved systems let me finish faster and with fewer tools.

Leak Prevention

Stopping leaks is the most important thing in any pipeline. I trust grooved pipe joining because it works well under pressure. In tests, grooved joints stayed sealed even after a long time at high pressure. I have seen pipelines pushed above their limits for a whole day with no leaks. The gasket and coupling design stop pipes from pulling out and keep the joint tight. Even after some use, grooved joints almost never leak. Flanged systems can also work well, but only if I keep the bolts tight and change gaskets when needed. I have not seen as much proof about flanged leaks, but I know grooved systems work well, even with high pressure or earthquakes.

Applications and Suitability

Where Grooved Fitting Excels

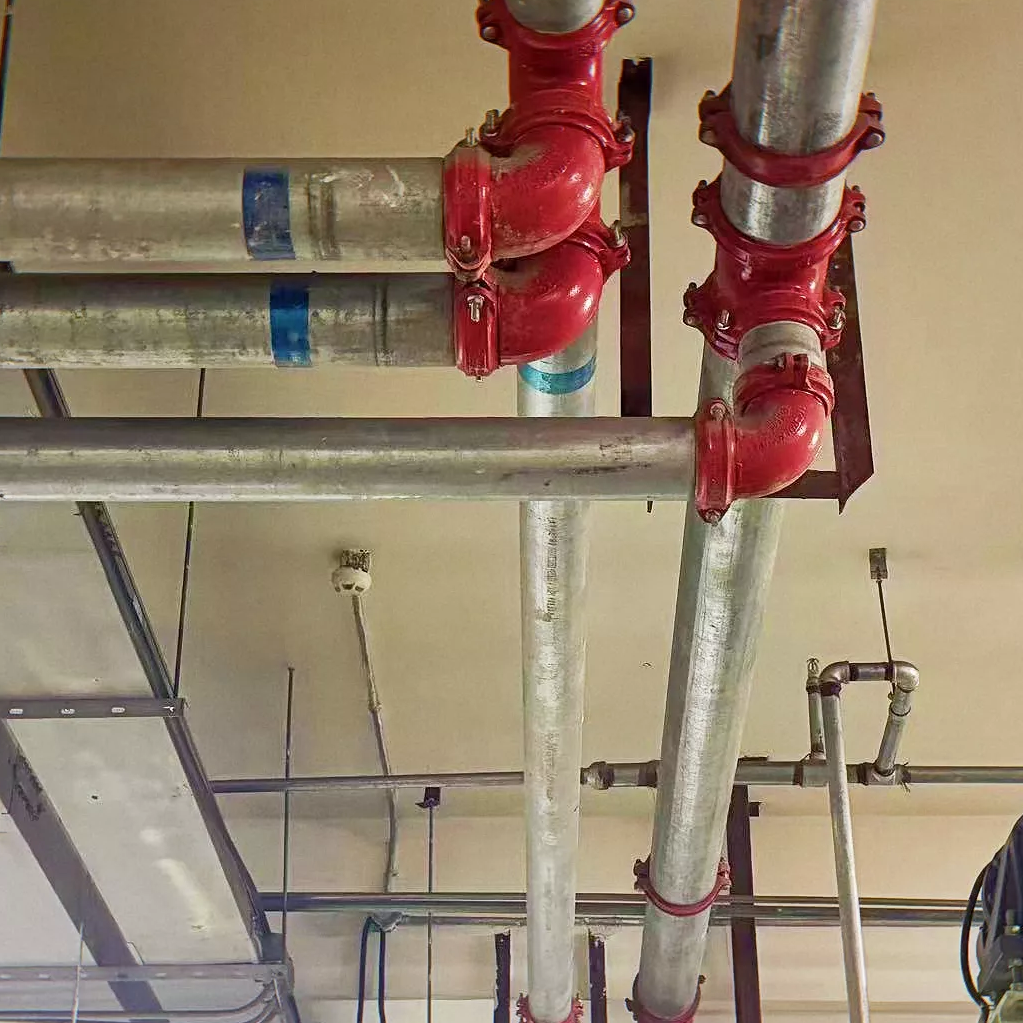

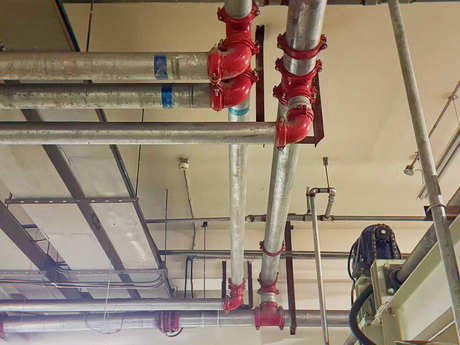

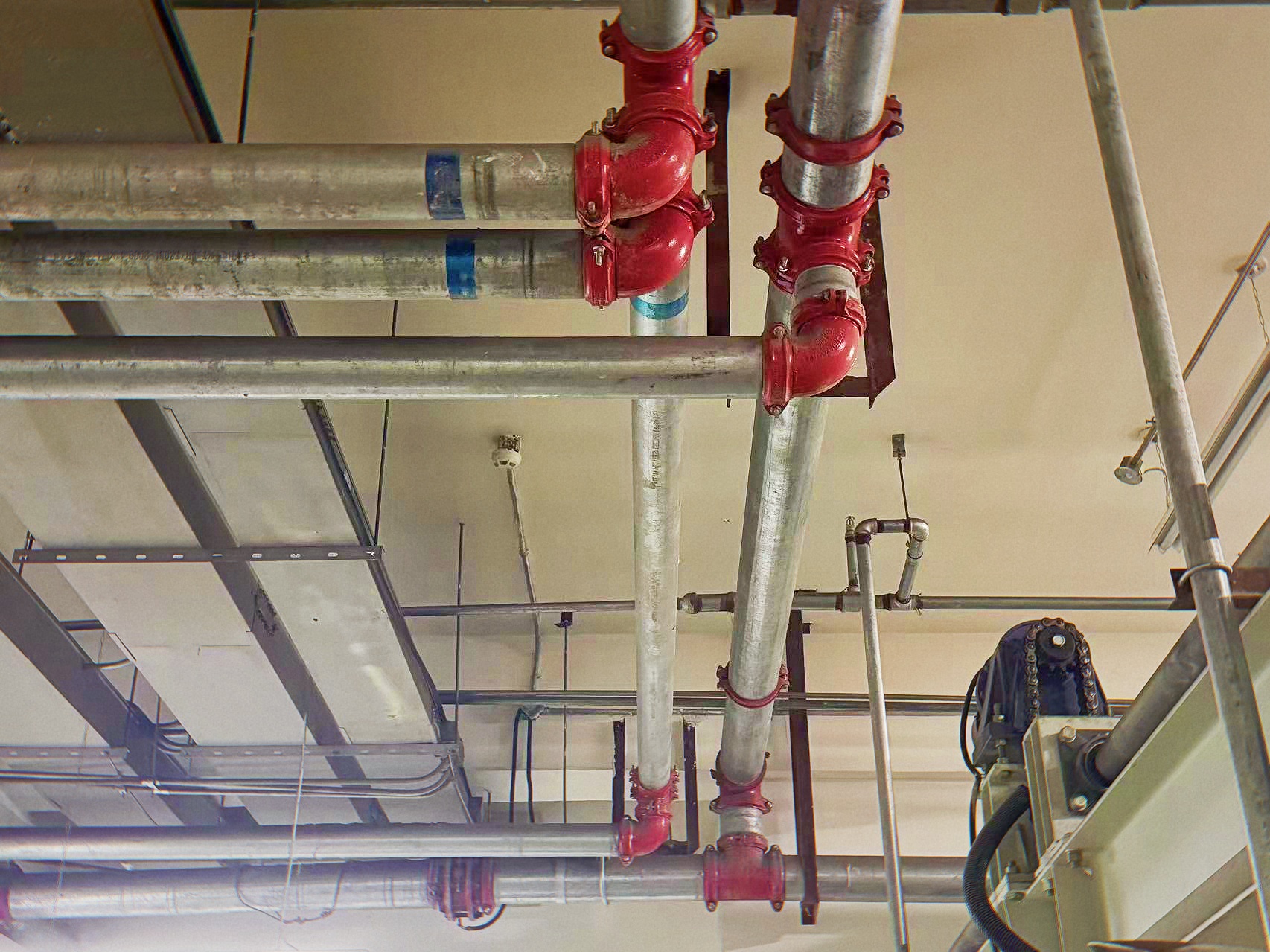

Grooved fittings work well in many new buildings. They are best when you need speed and flexibility. I use them for fire protection, HVAC, and water pipes in factories. These jobs need quick changes and easy fixes. Grooved fittings help me finish fast, even in small spaces. I do not need big tools or welding. I can turn and move pipes easily. This helps when I work above ceilings or behind walls.

Here are some places I pick grooved fittings:

• Fire sprinkler systems in office buildings

• Chilled water lines in hospitals

• Industrial piping in factories

• Temporary or modular pipe setups

• Projects with tight deadlines

Tip: I use grooved fittings to save time and lower labor costs.

Where Flanged Connections Are Preferred

Flanged connections are strong for tough jobs. I use them in oil plants, chemical plants, and power stations. These places have high pressure and heat. Flanged joints hold heavy loads and keep things safe. I also use them when I need to take pipes apart to clean or check. The stiff design keeps pipes lined up.

Common uses for flanged connections are:

• Oil and gas pipelines

• Steam lines in power plants

• Chemical process systems

• Large pumps and valves

• High-pressure water mains

Note: I pick flanged connections when safety and pressure matter most.

Choosing the Right Method

I match the connection to the job every time. If I need fast work and easy changes, I use grooved fittings. They help me finish on time and save money. When the system has high pressure or needs perfect alignment, I use flanged connections. I look at pipe size, pressure, and how often I need to open it.

Here’s a simple table I use to choose:

I always check the details and talk with my team before I decide.

Cost and Project Impact

Material and Labor Costs

When I plan a piping project, I always look at the costs first. Grooved fittings save me money in several ways. I do not need certified welders. Mechanical installers can handle the job, and they charge less per hour. The work goes faster, so I pay for fewer labor hours. I also skip expensive welding equipment and permits.

Here is a table that shows how the numbers stack up on a typical commercial job:

I see these savings add up fast, especially on big projects. The difference in labor and equipment costs can reach tens of thousands of dollars. I also avoid extra costs for inspections and safety permits when I use grooved fittings.

Tip: Grooved fittings help me keep my project under budget and on schedule.

Project Timelines

I always want to finish jobs quickly. Grooved fittings let me do that. I can install a joint in about 15 minutes. Flanged connections take about an hour for each joint. That means I can finish four times as many joints in the same amount of time.

Shorter installation times mean less downtime for the building or plant. I can move on to the next phase sooner. My team does not have to wait for welders or inspectors. We use simple tools, so we work faster and safer.

Here is what I notice on most projects:

• Grooved fittings cut total labor hours by more than half.

• I need fewer workers on site.

• I avoid delays from welding inspections or permit checks.

• The project moves forward without long pauses.

When I use grooved fittings, I see the whole job finish faster. That helps me meet deadlines and keep clients happy.

Grooved Coupling Installation Process

The speed and simplicity of grooved connections are best illustrated by their installation process. The following steps show how a standard flexible or rigid coupling is installed.

1. Take out the coupling: Begin with the complete coupling assembly.

2. Split the coupling: Separate the two halves of the housing and remove the gasket.

3. Pipe preparation: Ensure the grooved pipe ends are clean and free of debris.

4. Lubricate gasket: Apply a thin layer of compatible lubricant to the gasket. This helps it slide on easily and prevents pinching.

5. Gasket installation: Stretch the gasket over one pipe end, then bring the other pipe into position and center the gasket over both ends.

6. Housing installation: Place the two halves of the coupling housing over the gasket, ensuring the keys on the housing engage with the grooves in the pipe.

7. Tighten nuts: Securely tighten the nuts, alternating between sides to ensure even pressure.

8. Installation completed: The grooved coupling is now fully installed and the joint is secure.

---

I have used both grooved fittings and flanged connections. I notice big differences between them. Grooved fittings go in much faster than flanged ones. They can be up to six times quicker to install. Grooved fittings also deal with shaking well. They are easy to fix and check. Flanged connections are very strong. They work best for high-pressure jobs. But they take more time and skill to put together. Here is a simple chart to help you choose:

It is smart to talk to a good supplier or engineer before you decide.

FAQ

What pipes work best with grooved fittings?

I use grooved fittings on steel, ductile iron, copper, and even some plastic pipes. They fit a wide range of sizes. I find them most helpful in commercial and industrial jobs where speed and flexibility matter.

Can I reuse grooved fittings after disassembly?

Yes, I often reuse grooved fittings. I check the gasket for damage first. If it looks good, I put the joint back together. This saves time and money on repairs or changes.

Do grooved fittings leak more than flanged connections?

No, I see grooved fittings hold tight seals. The gasket design prevents leaks, even under pressure. I always check the groove and gasket before assembly. Proper installation keeps the joint leak-free.

When should I choose flanged connections instead?

I pick flanged connections for high-pressure, high-temperature, or critical systems. They work best in oil, gas, and power plants. I use them when I need a strong, rigid joint that can handle tough conditions.

How fast can I install grooved fittings compared to flanged joints?

I finish grooved fittings up to four times faster than flanged joints. I use fewer bolts and simple tools. This speed helps me meet tight project deadlines and reduce labor costs.
