Views: 0 Author: Site Editor Publish Time: 2025-08-13 Origin: Site
Explore key differences between grooved and threaded pipe fittings.
| Features | Grooved Fittings | Threaded Fittings |
|---|---|---|
| Installation Speed | Faster, 10–20 minutes per joint | Slower, 30–60 minutes per joint |
| Connection Method | Mechanical coupling with gasket seal | Screw threads with sealant |
| Tools Required | Basic wrench, no threading tools | Threading machine, dies, skilled labor |
| Maintenance Ease | Easy to disassemble and repair | Unscrew fittings, can be difficult |
| Pressure Handling | Up to 363 PSI, flexible joints | Handles very high pressure, tight seal |
| Material Composition | Ductile iron with corrosion-resistant coatings | Malleable iron, galvanized or black finish |
| Best Application | Large fire protection, HVAC, industrial | Small plumbing, oil, gas pipelines |
| Cost Consideration | Higher initial cost, lower labor cost | Lower initial cost, higher labor cost |
| Flexibility | Allows easy system changes and branches | Less flexible, needs re-threading |
When I look at grooved fittings and threaded fittings, I notice they connect pipes in different ways. Grooved fittings use a mechanical coupling with a gasket. Threaded fittings use screw-like threads to join pipes. This choice is important for my work. It changes how fast I can finish a job. It also changes what tools I need and how much money I spend. For example, grooved fittings help me install pipes much faster. I can finish the job up to three times quicker than with old methods. This helps me save money on labor and equipment. It also keeps projects safe and efficient.
Grooved fittings join pipes fast with a special clamp and gasket. This helps save time and lowers work costs.
Threaded fittings make tight, strong joints by screwing pipes together. They are good for small pipes and high pressure.
Grooved fittings are best for big jobs that need quick setup. They also make repairs and changes easy.
Threaded fittings are better for small systems that do not need many repairs. They are great when you need a strong, tight seal.
You should pick the right fitting by looking at pipe size, project plan, pressure, and how much fixing it may need later.
I pick grooved fittings when I want to connect pipes fast. These fittings have a groove cut into each pipe end. The groove lets me join pipes without welding or threading. MaitoLead grooved fittings use strong ductile iron for the housing. The gasket can be EPDM, Nitrile, or Silicone. I choose the gasket based on the pipe’s temperature and fluid. Bolts and nuts hold the parts together and keep the joint tight. Surface finishes like epoxy paint and hot-dip galvanizing stop rust. I trust these fittings because they meet strict standards. They have certifications like UL, FM, CE, VDS, NSF, and CCC.
Tip: Grooved fittings are great when you need speed and safety.
First, I make a groove at each pipe end with a roll-grooving machine. I put a gasket around the joint to seal it. Then, I place the coupling housing over the gasket and line it up with the grooves. I tighten the bolts and nuts to lock the housing. This makes a leak-tight connection. I finish the job much faster than with flanged or welded joints. Grooved couplings let me turn the pipe all the way around. This helps me line up the pipes. If I need to fix or check the system, I loosen two bolts and take off the housing. Maintenance is easy and quick.
Based on expert guidelines, installing grooved fittings is a systematic process that ensures a secure and leak-free connection. Here are the essential steps I follow:
Pipe Preparation: I first check the pipe ends to confirm they are properly grooved to the correct dimensions. It's crucial to ensure the pipe end is free of any indentations or projections that could prevent a proper seal.
Gasket Inspection and Lubrication: I inspect the gasket to be sure it is compatible with the intended service (e.g., water, oil). Then, I apply a thin layer of an approved lubricant to the outside and sealing lips of the gasket, which helps ensure a smooth installation and a tight seal.
Gasket Installation: I slip the gasket over one end of the pipe, making sure the gasket lip does not overhang the pipe end. After aligning the two pipe ends, I pull the gasket into position so it is centered between the grooves on each pipe. The gasket must not extend into the groove on either pipe.
Housing Installation: Next, I place one housing segment over the gasket, ensuring its keys fit correctly into the pipe grooves. I then swing the other housing segment into place over the gasket and into the grooves on both pipes, re-inserting the bolt to connect the two housings.
Tightening Nuts: I start by hand-tightening the nuts to make sure the oval neck bolts fit completely into the bolt holes. Finally, I use a spanner to securely tighten the nuts, alternating between them to ensure they are tightened equally until I reach the specified bolt torque. A properly completed installation will have evenly spaced gaps at the bolt pads, and the gasket will not be visible.
| Step | Action | Purpose |
|---|---|---|
| 1 | Groove & Check pipe ends | Get pipes ready for connection |
| 2 | Lubricate & Position gasket | Make the joint sealed |
| 3 | Place coupling housing | Hold the pipes together |
| 4 | Tighten bolts and nuts | Keep the joint locked and secure |
Grooved fittings help me save time and money. I do not need a flame or welding permit, so the job is safer. I can install pipes up to six times faster than with flanged connections. Grooved couplings handle vibration and heat changes well. The connection stays strong and does not leak. I use grooved fittings in fire protection, water supply, mining, shipbuilding, and power plants. These fittings work in fire sprinkler systems, standpipes, and water mains. Mechanical tees let me add branches fast without welding. I count on grooved fittings because they last long, work well, and are easy to fix.

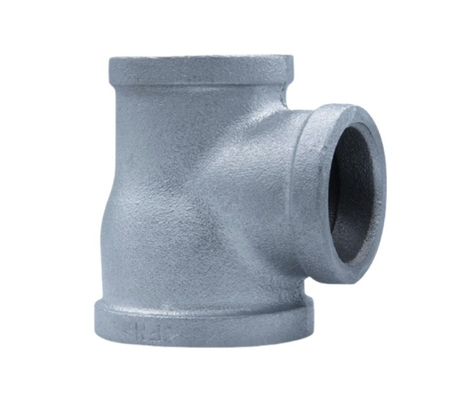

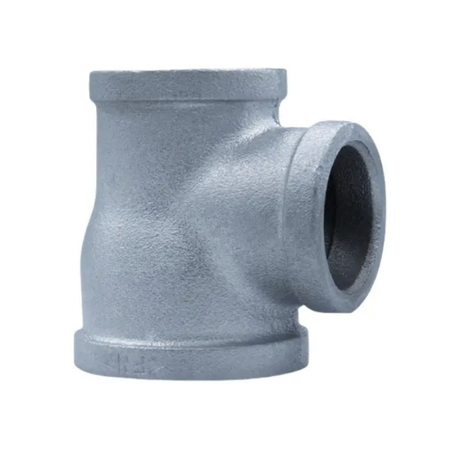

I pick a threaded fitting when I need a strong joint. Jianzhi Malleable Iron Thread Fittings use high-quality blackheart malleable cast iron. This makes the fitting tough and long-lasting. Each fitting has very exact threads. I see NPT, BSP, and BSPT thread types. These threads must comply with standards like ISO 7-1 or EN10226 to ensure a perfect connection. The surface can be black, hot-dip galvanized, or electro-galvanized. I trust these fittings because they follow strict rules. They have certifications like FM, UL, CE, BSI, and ISO 9001. I know they pass tests for safety and quality.
| Attribute | Details |
|---|---|
| Material | Blackheart Malleable Cast Iron |
| Working Pressure | 2.5 MPa (363 PSI) |
| Temperature Range | -20 to 120°C |
| Thread Types | ISO 7-1, EN10226 (BSPT) |
| Surface Treatments | Hot-dip galvanized, electro-galvanized, black |
| Certifications | FM, UL, CE, ABNT, TSE |
| Warranty | Over 3 years |
| Customization | OEM, ODM |
First, I cut the pipe to the right size. Next, I use a die to make the thread on the pipe end. I screw the threaded mechanical tee or other fitting onto the pipe. The thread grabs the pipe and makes a tight seal. Sometimes, I use tape or sealant to stop leaks. The threaded mechanical tee lets me add a branch without welding. I can use a threaded pipe joint for fast repairs or changes. If I need to take things apart, I just unscrew the fitting. This makes fixing things easy.
Installing threaded fittings requires precision to create a strong, leak-proof joint. The process relies on creating accurate threads that meet international standards.
Pipe Cutting and Threading: I cut the pipe to the required length. Then, using a threading machine with the correct die, I cut threads onto the pipe end. These threads must conform to standards like ISO 7-1 or EN10226 to guarantee a proper fit and a secure seal.
Chamfering and Cleaning: For proper assembly, the outlet of the fitting should have a chamfer. I inspect both the pipe and fitting threads to ensure they are clean and free from any debris or cutting oils that could interfere with the connection.
Applying Sealant: To ensure a leak-proof connection, I apply a high-quality pipe thread sealant or PTFE tape to the male threads before assembly.
Assembly and Tightening: I screw the fitting onto the pipe by hand until it is snug. Then, using a pipe wrench, I tighten the fitting further to create the mechanical seal. It is important that the axes of the threads are precisely aligned, typically within a tolerance of ±0.3°, to prevent cross-threading and ensure a reliable joint.
I use threaded fittings for many reasons. They work well under high pressure and stop leaks. The threaded mechanical tee gives a strong, safe connection. I use these fittings in plumbing, HVAC, oil, and gas pipelines. The threaded mechanical tee is good for fire protection and irrigation. I also see them in chemical plants and factories. They last a long time, so I do not replace them often. The threaded mechanical tee and pipe joint help me change or grow a system easily. I trust the threaded connection to stay tight and safe.
Note: I always look at the thread for damage before I connect. A clean, sharp thread gives the best seal.
Some common uses for threaded mechanical tee and threaded pipe joint:
Plumbing in homes and buildings
Oil and gas pipelines
HVAC systems for heating and cooling
Fire protection and sprinkler systems
Chemical plants and factories
Farm irrigation
When I install grooved fittings, I notice the steps are quick and simple. I start by making a groove at each pipe end. I slide a rubber gasket over the ends. I align the pipes, then clamp the housing and tighten two bolts. The process takes less time than threading. I do not need to cut threads or use sealant. Grooved fittings let me finish a joint in about 10–20 minutes. Threaded fittings take longer. I must cut threads on each pipe end, check for sharpness, and screw the fitting tightly. Sometimes, I use tape to prevent leaks. This process can take 30–60 minutes per joint.
| Connection Type | Average Installation Time per Joint (minutes) |
|---|---|
| Grooved Joint | 10–20 |
| Threaded Joint | 30–60 |
Grooved fittings help me work faster, especially on large projects. I can train new workers quickly. Threaded fittings require more skill and patience.
I use basic tools for grooved fittings. A wrench is enough to tighten bolts. I do not need threading machines or welding equipment. The grooved system lets me use semi-skilled labor. I can teach someone the process in a short time. Threaded fittings need special tools. I use a threading machine, dies, and sometimes a pipe vise. Skilled workers must handle these tools. The process is more labor-intensive. Grooved fittings save me time and reduce labor costs.
Grooved fittings:
Wrench for bolts
No threading or welding tools
Semi-skilled labor
Threaded fittings:
Threading machine and dies
Skilled labor
More time and effort
I find grooved connections easy to maintain. If I need to repair a pipe, I loosen two bolts and remove the housing. I can inspect or replace the gasket quickly. The system allows me to make changes without shutting down the whole line. Threaded connections are harder to fix. I must unscrew the fitting, which can be tough if the pipe rusts. Large diameter pipes make the job even harder. Grooved couplings let me check the assembly visually. I can finish repairs with less downtime and fewer tools. The flexible design helps manage vibration and movement, so I do not see as many leaks or failures.
When I pick between grooved and threaded fittings, I think about pressure and shaking. Threaded fittings, like NPT and BSPT, can handle very high pressure. I have seen them work in systems with over 10,000 psi if sealed right. These fittings have threads that get tighter as you screw them in. In hydraulic and aerospace jobs, straight threads with O-rings stop leaks and handle shaking. Special threads, like JIC and SAE, make the connection even stronger in tough places.
Grooved fittings are best for medium pressure systems. I use them for up to 360 psi. Their flexible design helps take in shaking, so the joints do not break. This is good when pipes move or shake a lot. Grooved fittings are easy to check and fix. I can look at them and repair them fast. I do not use grooved fittings where it is very hot or where pipes rust a lot. For most buildings, grooved fittings give strong, leak-free joints.
Tip: I always pick the fitting that matches the pressure and shaking for my job.
I look at both price and value over time. Grooved fittings cost more at first. I pay extra for the metal and design. But I save money because they are quick to put in. I do not need special workers or permits. Grooved fittings use metals that do not rust, so I fix them less. The tight seal helps stop leaks and problems.
Threaded fittings are cheaper to buy. I use them for small jobs where labor is not a big deal. Over time, threaded fittings might need more fixing. They can rust or leak, so I spend more on repairs. I need special tools and skilled workers to put them in. This makes the total cost go up.
Here is a quick comparison:
| Feature | Grooved Fittings | Threaded Fittings |
|---|---|---|
| Initial Cost | Higher | Lower |
| Labor Cost | Lower (fast install) | Higher (slow install) |
| Maintenance | Minimal | More frequent |
| Lifespan | Long (corrosion-resistant) | Long, but may need repairs |
| Downtime | Less (easy repair) | More (harder to fix) |
Grooved fittings help me stop long breaks in work.
Threaded fittings are good for simple jobs that do not need much fixing.
I choose grooved or threaded fittings based on the job. Grooved fittings let me put pipes together three times faster than threading or welding. I do not need to weld or line up pipes just right. This makes grooved fittings great for big jobs. I use them in fire safety, HVAC, and big factories. Grooved fittings make it easy to add more pipes or fix things fast. They are good where pipes shake and need to be quiet.
Threaded fittings are better for small systems. I use them where I do not need to take pipes apart often. They make a strong joint. I see them in plumbing, oil and gas, and places with high pressure but not much shaking.
Here is a table that shows where I use each type:
| Fitting Type | Preferred Application Scenarios | Key Advantages and Reasons for Preference |
|---|---|---|
| Grooved Fittings | Large fire protection systems, industrial sprinkler networks | Fast installation, allows expansion, easy maintenance, minimal space interference, quick repair access |
| Threaded Fittings | Small systems, infrequent disassembly | Strong connection, durability, good for high pressure, needs more installation time and space |
Grooved fittings are good for systems that change a lot.
Threaded fittings are best for jobs that stay the same for a long time.
Note: I always check the size of the job, the pressure, and how much fixing it will need before I pick a fitting.

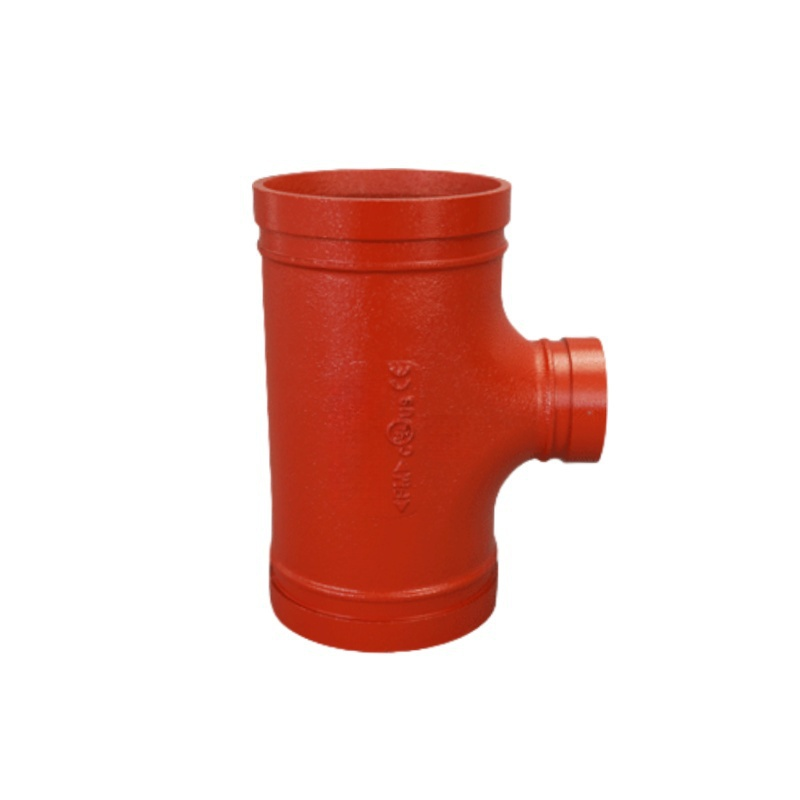

When I work on commercial or industrial piping, I often reach for a grooved tee. This fitting lets me connect three pipes at a T-junction. I can change the direction of flow with a 90-degree branch. I do not need to weld or solder, so I finish the job quickly and safely. I see grooved tees in many places where speed and safety matter.
I use a grooved tee in fire protection systems. It helps me install sprinkler lines fast.
I rely on a grooved tee for hydronic heating and cooling systems. It keeps the system flexible and easy to maintain.
I choose a grooved tee for compressed air plumbing. It gives me a strong, leak-proof joint.
I install a grooved tee in industrial process piping. It handles high pressure and keeps the system running smoothly.
I find a grooved tee in commercial buildings like hospitals and malls. It fits well in tight spaces and tricky layouts.
The grooved design means I do not need special tools or open flames. I can finish the job even in places where welding is not allowed. The mechanical joint gives me a pressurized, sealed connection. I trust a grooved tee to deliver fast installation, strong performance, and low maintenance.
When I need to add a branch to an existing pipe, I pick a grooved mechanical tee. This fitting stands out from a regular grooved tee. It has extra threads, nuts, and rubber rings. These parts help me connect branch pipes of different diameters without cutting the main pipe. I can use grooves or threads, depending on what the job needs.
A grooved mechanical tee lets me connect a branch pipe quickly. I do not need to cut or weld the main line.
I see extra nuts and rubber rings on a grooved mechanical tee. They give me a tight, leak-proof seal.
I use a grooved mechanical tee when the main pipe is between 33 and 60 millimeters. It fits many common sizes.
I can connect the branch by groove or thread. This gives me more options for different systems.
I finish the installation fast. I do not need special tools or welding permits.
I can take apart a grooved mechanical tee easily for repairs or changes. This saves me time and effort.
The grooved mechanical tee uses a coupling system that matches grooved pipes. It handles movement and expansion well. I rely on a mechanical tee for quick assembly, easy maintenance, and strong, reliable joints. I use a mechanical tee in fire protection, industrial piping, and any job where I need a fast, flexible branch connection.
Grooved pipe joints are used in many places. They help workers finish jobs fast and safely. In fire protection systems, grooved pipe joints let pipes get installed quickly. The seal stops water from leaking. HVAC systems use grooved fittings because they handle shaking well. They work with different kinds of pipes. Water and wastewater plants use grooved fittings too. The flexible design helps with pressure changes. It also makes fixing things easy. Oil and gas projects need strong joints. Grooved fittings work well in tough places and save time. Mining and industrial plants use grooved connections. These fittings do not rust easily. They handle hot and cold temperatures. Workers do not worry about leaks or broken pipes.
Here’s a table that shows where grooved fittings are used and why:
| Industry / Environment | Reasons for Use and Advantages |
|---|---|
| Fire Protection Systems | Fast to install, stops leaks, bends with heat, keeps safety systems working. |
| HVAC Systems | Quick to put in, does not break from shaking, fits many pipe types. |
| Water and Wastewater Systems | Seals tight, works with pressure and heat changes, easy to fix. |
| Oil & Gas Industry | Stays strong in hard places, installs fast far away, saves money. |
| Mining and Industrial | Handles rough places, bends for new pipes, easy to fix and keep working. |
Tip: Pick a grooved pipe joint when you need a fast, safe, and flexible connection in tough places.
I trust grooved fittings that follow strict rules. These certifications show the fittings are safe and work well. For fire protection or water supply, I look for these marks:
UL Certification: Shows the fitting is safe for fire systems.
FM Approval: Means it works well in fire protection.
ISO Certification: Proves good quality and matches product rules, like ISO 9001.
ASTM Standards: Sets rules for materials and sizes, like ASTM A536 for ductile iron.
EN Standards: Covers European rules.
NSF Certification: Makes sure it is safe for drinking water.
CE Marking: Means it follows EU health and safety laws.
VdS Certification: Meets European fire protection rules.
NFPA Standards: Follows National Fire Protection Association rules, like NFPA 13 for sprinklers.
Local Regulatory Approvals: Passes rules from local leaders, like CCC certification.
Manufacturer’s Certifications: Extra proof it works well and is high quality.
I always check for these certifications before starting a job. They help me build safe and strong systems with grooved fittings.
When I compare grooved fittings and threaded fittings, I see clear differences in how they help me on the job. I rely on both types, but each one brings its own strengths to the table. Here’s a side-by-side look at what I notice most:
| Aspect | Grooved Fittings | Threaded Fittings |
|---|---|---|
| Installation Speed | I finish jobs faster, sometimes in half the time. | I spend more time, especially on pipes over 2 inches. |
| Leak Prevention | The mechanical coupling gives me a tight, leak-proof seal. | I need to check threads and use sealant to stop leaks. |
| Maintenance | I can open and fix joints quickly, saving time and effort. | I unscrew fittings, but sometimes need to reseal them. |
| Best Use | I choose these for fire protection, HVAC, and big industrial jobs. | I use these for small plumbing and low-pressure systems. |
| Material & Strength | Ductile iron and coatings fight rust and handle high pressure. | Malleable iron or steel works well, but depends on thread. |
| Flexibility | I add branches or change layouts without welding or cutting. | I need extra work for changes or new branches. |
Tip: I always pick grooved fittings for pipes larger than 2.5 inches. They save me time and trouble on big projects.
I see grooved fittings shine when I need speed and reliability. They let me install miles of pipe quickly. I trust them in fire safety jobs because they hold up under pressure and heat. The design lets me branch off or change the system without welding. I find threaded fittings work best for smaller pipes. They give me a strong joint, but I spend more time on each connection. When I work with high-pressure or large-diameter pipes, I reach for grooved fittings every time.
Grooved fittings:
Fastest to install
Easy to maintain
Great for high-pressure and large pipes
Flexible for system changes
Threaded fittings:
Simple for small jobs
Strong for low-pressure systems
Good when I need a basic, tight seal
Note: Industry guides recommend grooved fittings for pipes 2.5 inches and up. I follow this advice to keep my projects safe and efficient.
When I choose between grooved fittings and threaded fittings, I look at several important points. Each project brings its own challenges. I want to make sure I pick the best option for safety, speed, and cost. Here are the main things I check:
Pipe size matters. I use threaded fittings for pipes 2 inches or smaller. They give me a tight, simple joint.
Grooved fittings work best for bigger pipes and systems with the same branch sizes. They help me finish jobs faster and save on labor.
I look at the layout. Grooved fittings need long, straight runs to be cost-effective. Threaded fittings fit well in systems with lots of changes or offsets.
If I need to change or expand the system later, threaded fittings make it easier. I can cut and re-thread pipes without much trouble.
Company rules and what I have in stock can affect my choice. Sometimes, I pick what is available to keep the job moving.
The type of project guides me. New builds with uniform piping often use grooved fittings. Retrofit jobs or complex layouts work better with threaded fittings.
My own experience and what my team prefers also play a role. I trust what has worked well before.
Tip: I always match the fitting to the job’s size, layout, and future needs.
I notice grooved and threaded fittings are not the same. Grooved fittings go in fast and are easy to fix. Threaded fittings make a stronger joint that does not leak much. They work well for high-pressure jobs. Here is a table to compare them:
| Aspect | Grooved Fittings | Threaded Fittings |
|---|---|---|
| Installation | Quick and easy | Slower, needs more skill |
| Leak Resistance | Medium | Very good |
| Pipe Damage Risk | Not much | More likely |
| Best Use | Fire safety, HVAC | Plumbing, gas, factories |
I use grooved fittings when I need to finish fast, like in fire safety or HVAC.
I choose threaded fittings for plumbing or gas lines that must be strong and tight.
I always look at pipe size, pressure, and how often I will fix it before I pick. If I do not know what to use, I ask someone who knows more.
I use grooved fittings for pipes larger than 2 inches. Threaded fittings fit best on pipes 2 inches or smaller. This helps me get a tight seal and finish jobs faster.
Yes, I can. I use adapters to connect grooved and threaded fittings. This lets me join different pipe sections and match the needs of my project.
Grooved fittings save me time. I finish jobs up to three times faster than with thread fittings. I do not need to cut threads or use sealant.
Absolutely. I trust grooved fittings for fire protection. They meet strict standards like UL and FM. The tight seal and fast installation keep systems safe and reliable.
I always check the threads for damage. I use PTFE tape or pipe sealant on the threads. This helps me stop leaks and keep the joint tight.
