Overview

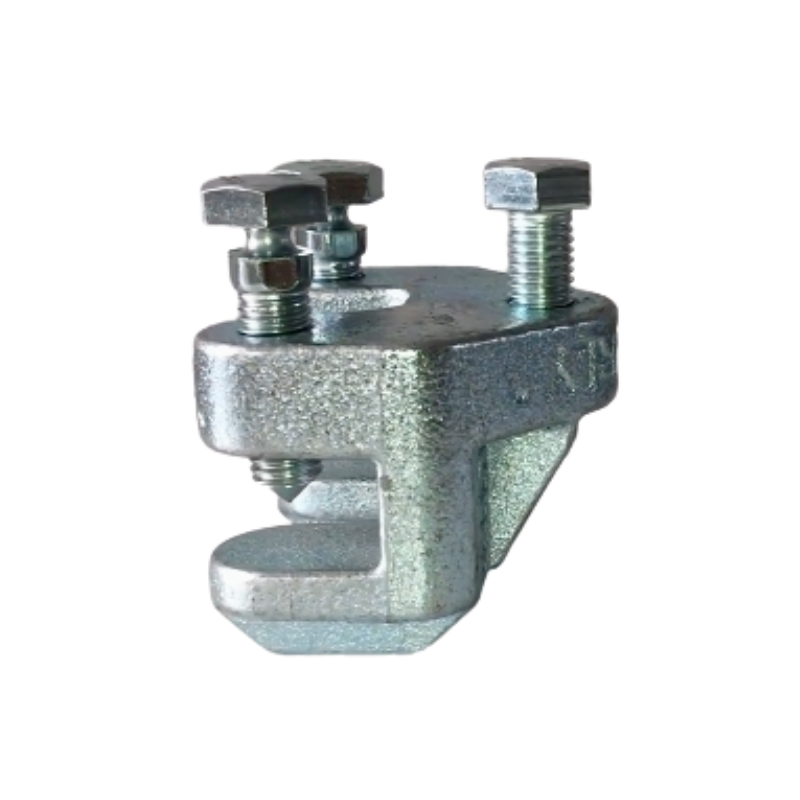

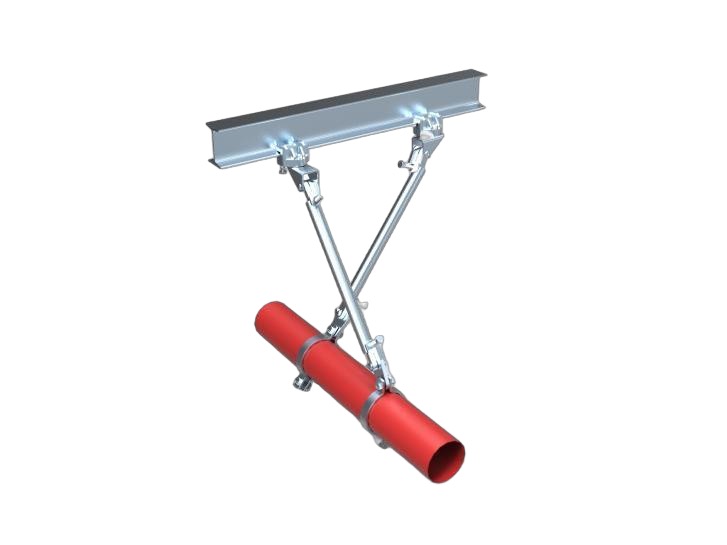

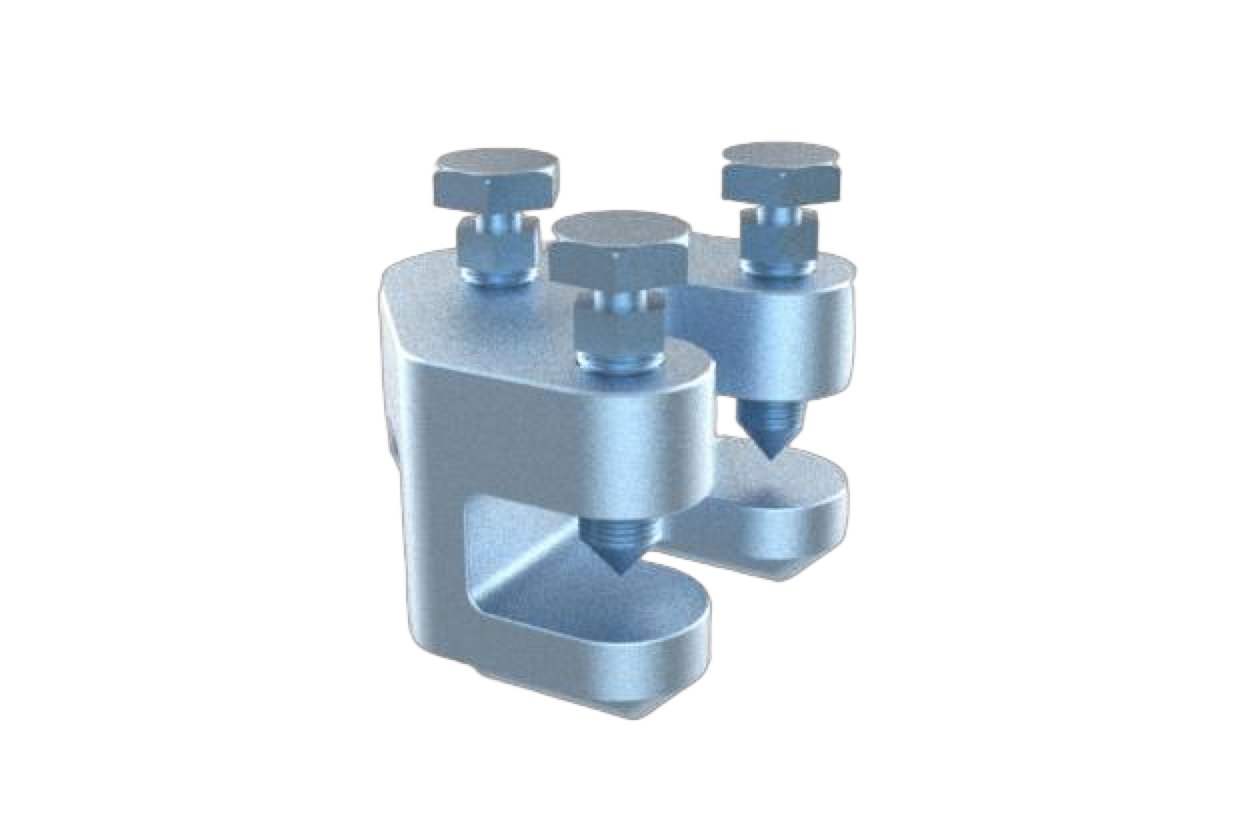

A beam adapter is a structural attachment used in seismic sway bracing systems to connect brace assemblies to steel beams or other building structural members. It plays an important role in transferring seismic or lateral forces from the suspended pipe system to the building structure, helping reduce unwanted movement and improve overall support reliability.
This type of adapter is commonly used in fire sprinkler systems, mechanical service piping, HVAC lines, and industrial piping installations where seismic restraint is required. With ductile iron construction and an electro-galvanized finish, it provides both mechanical strength and corrosion resistance for long-term use in indoor construction environments. In your catalog, this product is listed under the seismic sway bracing category and described as being designed for bracing pipe against sway and seismic disturbance. It is also specified for sprinkler pipe systems and structural mounting applications with bolt hole options.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | Beam Adapter |
| Product Type | Structural Attachment / Seismic Sway Bracing Component |
| Main Function | Designed for bracing pipe against sway and seismic disturbance |
| Application | Fire sprinkler systems, suspended piping, seismic restraint systems |
| Suitable Pipe Standards | Sch 10, Sch 40, GB/T 3091, JIS G3454 |
| Pipe Capacity | Up to 8" |
| Structure Hole Option | 1/2" or M12 bolt hole |
| Material | Ductile Iron QT450 |
| Surface Finish | Electro-galvanized |
| Approval | UL & FM & CE approved |
| Installation Use | Structural attachment to beam in sway bracing assembly |
| Typical Industry | Fire protection, HVAC, mechanical piping, industrial piping |
 |  |  |
FAQA beam adapter is used as a structural attachment in seismic sway bracing systems. It connects the brace assembly to the building structure and helps secure piping against sway and seismic disturbance.
According to your catalog, this product is made from ductile iron QT450, which provides strong mechanical performance and durability for structural attachment applications.
It is suitable for sprinkler pipe Sch 10, Sch 40, GB/T 3091, and JIS G3454.
The catalog indicates that it is suitable for applications up to 8 inches.
This product is listed with 1/2 inch or M12 bolt hole options for structural attachment.
It is electro-galvanized, which helps improve corrosion resistance in indoor and general building support environments.
Yes. The product is marked in your catalog as UL, FM, and CE approved.
It is widely used in fire sprinkler systems, mechanical rooms, commercial buildings, industrial piping systems, and other suspended pipe installations requiring seismic restraint and structural beam attachment.
