Overview

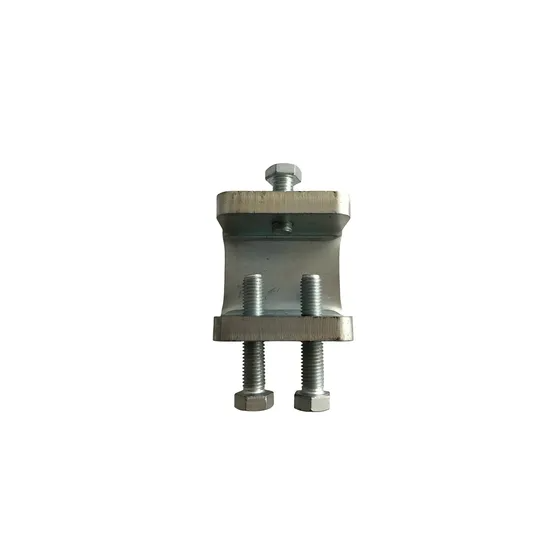

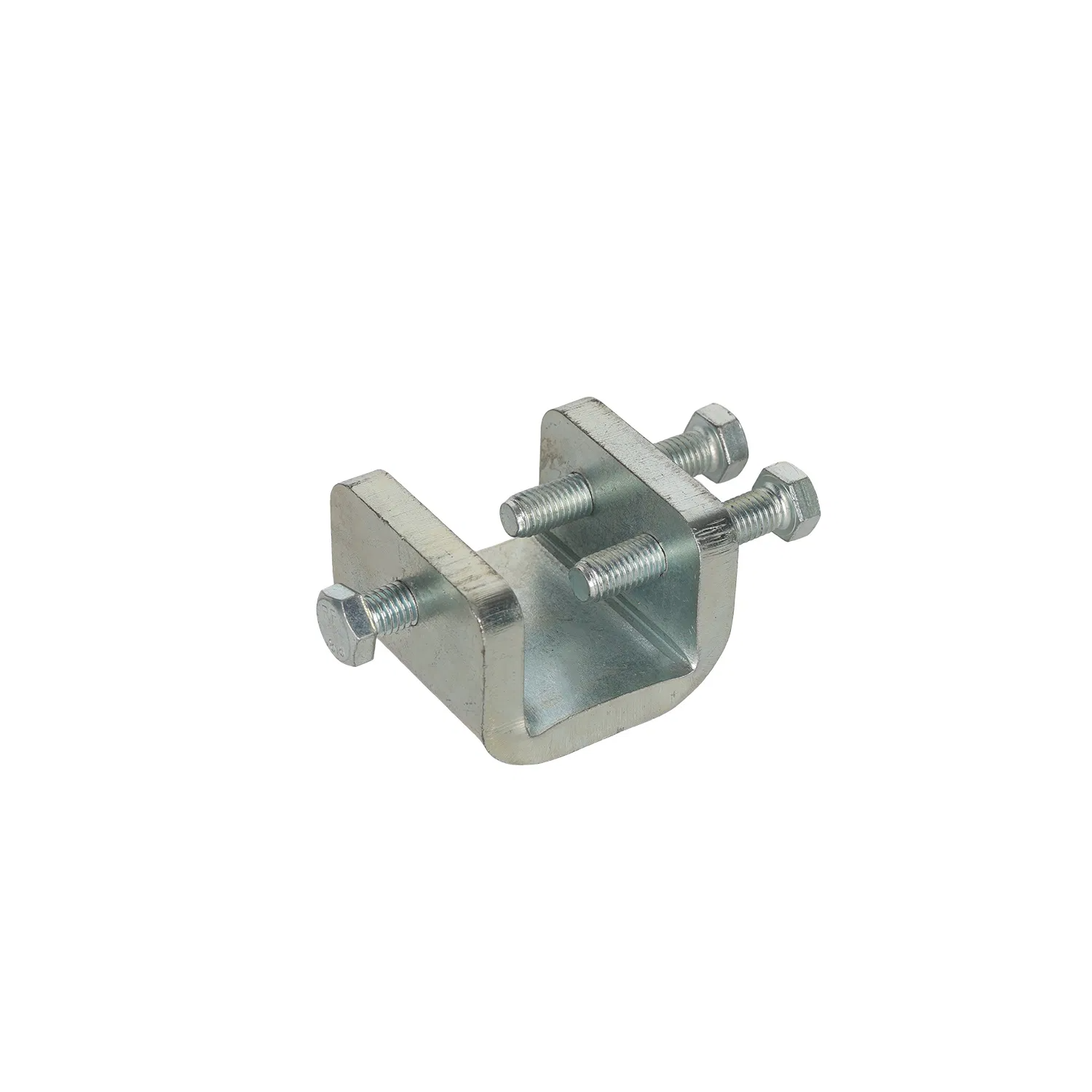

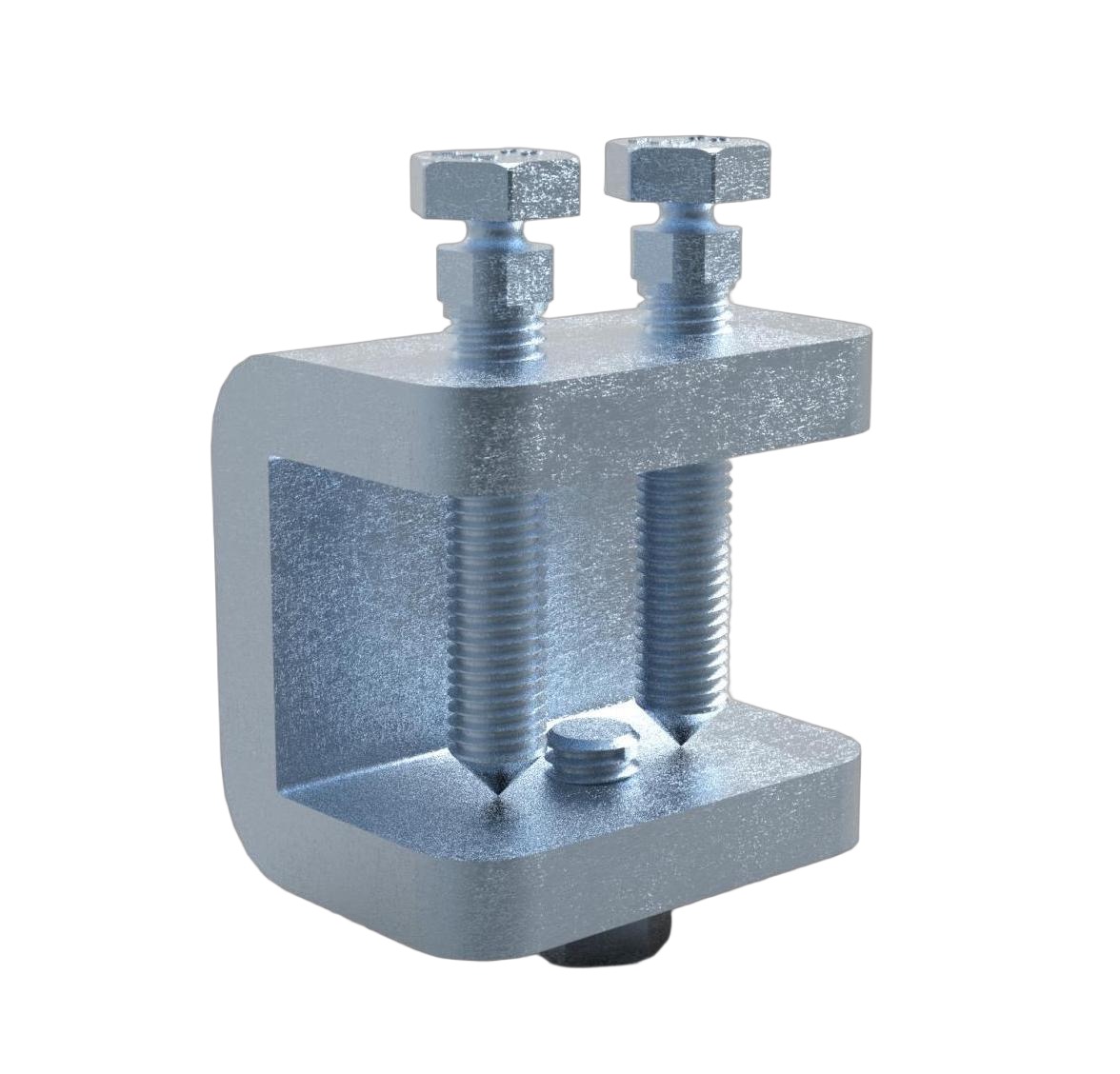

A beam adapter is a structural attachment used in seismic sway bracing systems to connect bracing components to steel beams or other building structural members. Its purpose is to transfer lateral force from the suspended piping system to the building structure, helping reduce unwanted movement caused by vibration, sway, or earthquake-related activity.
This type of beam adapter is commonly used in fire sprinkler systems, HVAC piping, mechanical service lines, and industrial piping installations where seismic restraint is required. Carbon steel construction offers reliable mechanical support, while the electro-galvanized finish helps improve corrosion resistance in standard indoor service environments. In your catalog, this product is listed under the seismic sway bracing section and described as being designed for bracing pipe against sway and seismic disturbance, with suitability for sprinkler pipe applications and structural bolt hole options.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | Beam Adapter |
| Product Type | Structural Attachment / Seismic Sway Bracing Component |
| Main Function | Designed for bracing pipe against sway and seismic disturbance |
| Application | Fire sprinkler systems, suspended piping, seismic restraint systems |
| Suitable Pipe Standards | Sch 10, Sch 40, GB/T 3091, JIS G3454 |
| Pipe Capacity | Up to 8" |
| Structure Hole Option | 1/2" or M12 bolt hole |
| Material | Carbon steel |
| Surface Finish | Electro-galvanized |
| Installation Use | Structural attachment to beam in sway bracing assembly |
| Typical Industry | Fire protection, HVAC, mechanical piping, industrial piping |
| Service Environment | Indoor/general building support use |
 |  |  |
FAQA beam adapter is used as a structural attachment in seismic sway bracing systems. It connects the brace assembly to the building structure and helps secure piping against sway and seismic disturbance.
According to your catalog, this product is made from carbon steel, which provides reliable structural strength for beam attachment and seismic bracing applications.
It is suitable for sprinkler pipe Sch 10, Sch 40, GB/T 3091, and JIS G3454.
The catalog indicates that it is suitable for applications up to 8 inches.
This product is listed with 1/2 inch or M12 bolt hole options for structural attachment.
It is electro-galvanized, which helps improve corrosion resistance in indoor and general building support environments.
Yes. It is suitable for sprinkler piping systems and is widely used in fire protection projects requiring seismic sway bracing.
It is commonly used in fire sprinkler systems, mechanical rooms, commercial buildings, industrial piping systems, and other suspended pipe installations that require structural beam attachment and seismic restraint.
