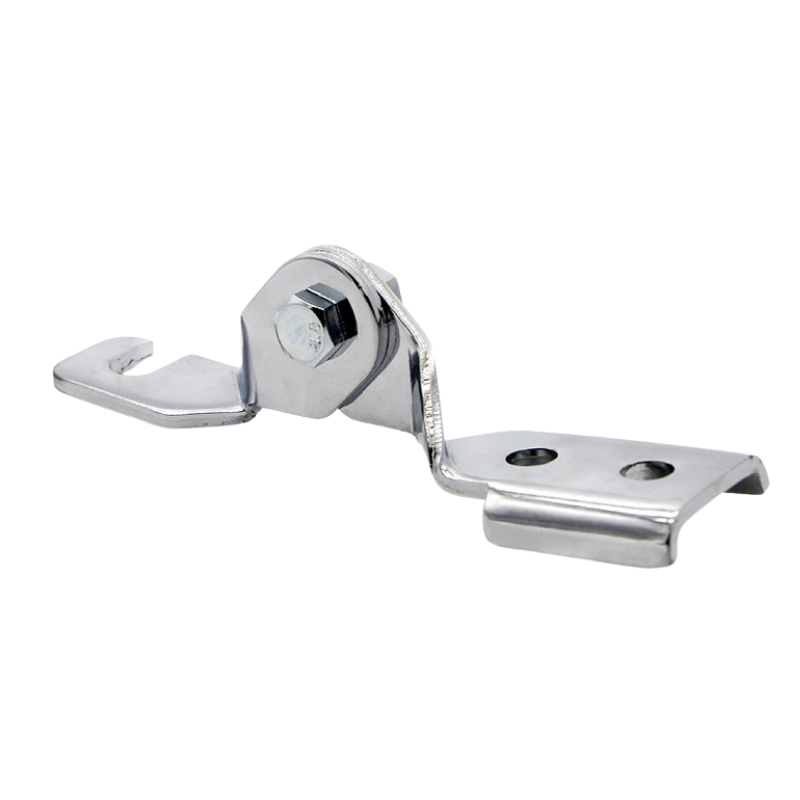

Product Overview
A seismic hinge is an important connection component in sway bracing systems because it allows controlled movement and angle adjustment within the brace assembly. In practical installations, seismic bracing often needs to adapt to different support directions and structural layouts. A hinge connection helps simplify installation and creates a more flexible brace configuration when used with channel steel members.
This product is specifically described in the catalog as used in combination with channel steel. It is made of carbon steel and finished with galvanized surface treatment for corrosion resistance. It is suitable for use in fire sprinkler piping, HVAC systems, plumbing lines, and other suspended mechanical piping installations requiring seismic restraint.
Designed for seismic sway bracing systems
Used together with channel steel in brace assemblies
Hinge connection allows flexible angle adjustment
Helps improve field installation efficiency
Suitable for fire sprinkler and mechanical piping systems
Carbon steel construction for dependable support
Galvanized finish for corrosion resistance
Product Parameters
| Item | Description |
|---|---|
| Product Name | Seismic Hinge |
| Product Type | Seismic Bracing Connection Component |
| Application | Sway bracing / seismic restraint connection |
| Typical Use | Fire sprinkler piping, HVAC piping, mechanical pipe systems |
| Matching Support Member | Channel steel |
| Function | Flexible hinge connection in brace assemblies |
| Material | Carbon steel |
| Surface Finish | Galvanized |
Fire sprinkler piping systems
HVAC pipe support systems
Mechanical piping systems
Plumbing installations
Commercial and industrial buildings requiring seismic restraint
It is used in sway bracing systems to create a flexible connection within the brace assembly, helping support proper alignment and restraint against seismic or lateral movement.
According to the catalog, this product is used in combination with channel steel.
A hinge connection allows controlled movement and angle adjustment, which helps installers adapt the brace assembly to different installation conditions and support directions.
It is suitable for fire sprinkler piping, HVAC systems, plumbing installations, and other mechanical piping systems requiring seismic restraint.
The catalog lists the material as carbon steel.
The product is shown with a galvanized finish to improve corrosion resistance.
Yes. It is designed as a connection component for sway bracing systems where flexible installation and brace alignment are needed.
Yes. This type of hinge connection is suitable for fire sprinkler seismic bracing systems and other suspended piping restraint applications.
Its main advantages include flexible hinge movement, compatibility with channel steel assemblies, durable carbon steel construction, and corrosion-resistant galvanized finish.
It is typically installed in seismic brace assemblies where channel steel members are used and a flexible hinge connection is required between bracing components.
