Overview

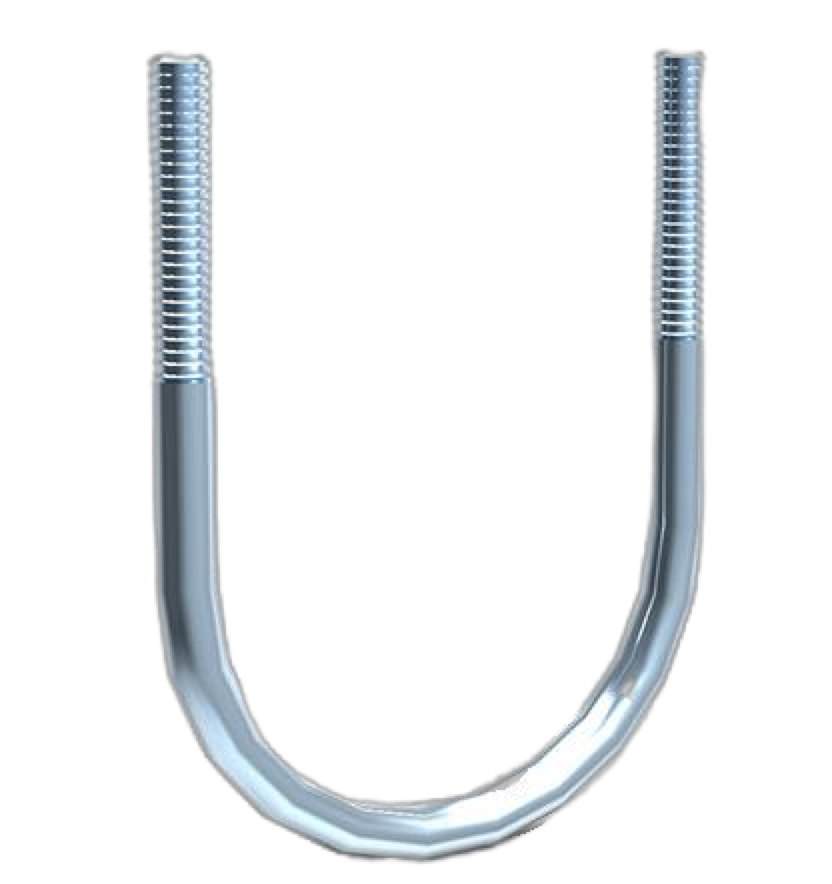

A U-bolt is a common fastening component used to secure round pipes, tubes, or conduit to channel steel, support frames, or structural members. It is widely used in suspended piping systems and mechanical support installations because of its simple structure, strong holding force, and easy adjustment during assembly.
This type of U-bolt is especially suitable for projects where pipes need to be mounted onto channel steel or strut support systems. Carbon steel construction provides reliable structural performance, while the galvanized finish helps improve corrosion resistance for standard indoor and utility service environments. In your catalog, this product is listed as a U-Bolt and is specifically noted as being used in combination with channel steel.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | U-Bolt |
| Product Type | Pipe Fastening / Support Accessory |
| Main Function | Used in combination with channel steel |
| Application | Pipe fixing, pipe support, suspended piping systems |
| Thread / Size Range | 1/2" through 12" |
| Material | Carbon steel |
| Surface Finish | Galvanized |
| Compatible Support | Channel steel / strut support systems |
| Installation Use | Pipe fastening to support framework |
| Typical Industry | Plumbing, HVAC, fire protection, industrial piping |
| Service Environment | Indoor/general building support use |
 |  |
FAQA U-bolt is used to secure and support pipes, tubes, or conduit to channel steel, support frames, or other structural members. It is commonly applied in suspended piping and mechanical support systems.
Yes. According to your catalog, this U-bolt is used in combination with channel steel.
The product is made from carbon steel, which provides reliable strength for pipe fastening and support applications.
It has a galvanized finish, which helps improve corrosion resistance in indoor and general support environments.
The catalog lists the size range as 1/2 inch through 12 inch.
It is commonly used in plumbing systems, HVAC installations, industrial piping, fire protection support systems, and general building service applications.
A U-bolt offers a simple and effective fastening method, strong holding force, convenient installation, and easy adjustment during assembly.
Yes. It is suitable for suspended piping systems where secure fastening to channel steel or support structures is required.
