Overview

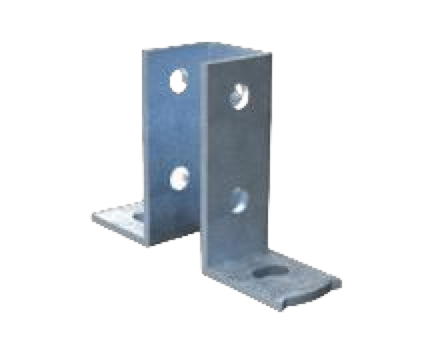

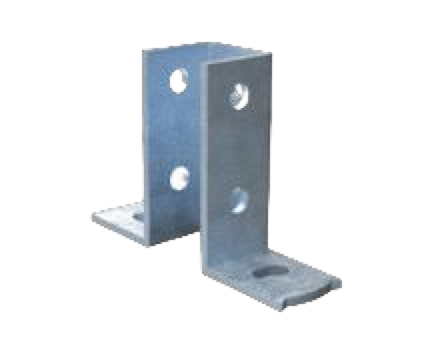

A strut base is a structural fitting used at the bottom of strut channel frameworks to provide stable anchoring and support for metal frame systems. It is commonly used in modular support assemblies for piping, cable tray supports, mechanical equipment frames, wall-mounted brackets, and seismic restraint structures. By connecting strut channels to the base structure, it helps improve overall rigidity, load transfer, and installation stability.
This type of component is widely used in construction, MEP support systems, industrial plants, and infrastructure projects where strut channels are assembled into customized support frames. Carbon steel construction ensures mechanical strength, while electro-galvanized or hot-dip galvanized finishes provide corrosion resistance according to different project environments. In your new catalog, this product is listed as a Strut Base used to create metal frames for attachment to strut channel systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | Strut Base |
| Product Type | Strut Base / Support Fitting |
| Main Function | Post base to create metal frames for attachment to strut channel |
| Size | Customized Size |
| Material | Carbon Steel |
| Surface Finish | Electro-Galvanized / Hot-Dip Galvanized |
 | |
 | |
| A | 43 mm |
| B | 41 mm |
| C | 98 mm |
| D | 154 mm |
| E | 54 mm |
| Application | Strut channel framing, support systems, equipment frames, pipe support |
| Order Information | Part No., Size, Finish |
FAQA strut base is used to create stable metal frames and provide a connection point for strut channel systems. It is commonly used in pipe support, equipment support, and modular framing applications.
According to your catalog, this product is made from carbon steel, which provides reliable structural strength for support frame applications.
This strut base is available in electro-galvanized and hot-dip galvanized finishes, allowing it to meet different corrosion protection requirements.
The catalog lists this product as customized size, which means it can be adapted according to project requirements.
It is commonly used in strut channel framing systems, metal support structures, pipe support assemblies, wall brackets, equipment bases, and mechanical or electrical support projects.
Yes. A strut base can be used as part of seismic restraint and structural support systems where a stable channel frame connection is required.

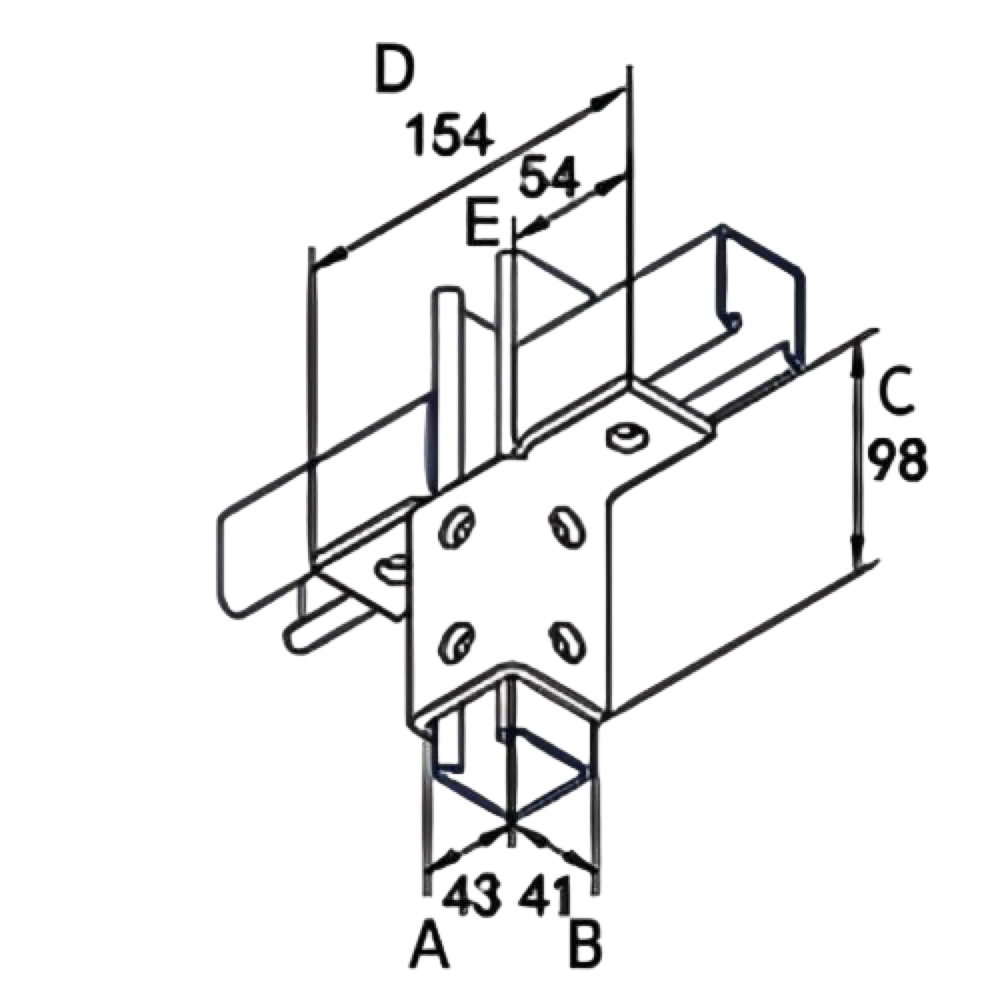

The catalog shows dimensions A 43 mm, B 41 mm, C 98 mm, D 154 mm, and E 54 mm.
A galvanized strut base offers better corrosion resistance, making it more suitable for environments where moisture, humidity, or outdoor exposure may affect service life.
