| Quantity: | |
|---|---|
Overview
A threaded rod, also known as an all-thread rod or hanger rod, is a basic fastening and support component used in suspension and support systems. It is commonly installed with nuts and washers to suspend pipes, cable trays, HVAC ducts, electrical supports, equipment frames, and channel structures. Because of its continuous thread design, it allows flexible length adjustment and easy on-site installation.
This product is widely used in commercial buildings, industrial plants, infrastructure projects, and modular framing systems. Carbon steel threaded rods are typically used for general structural support, while stainless steel versions are preferred in environments requiring improved corrosion resistance. In your new catalog, this product is listed under anchors and fasteners, with both imperial and metric size ranges, multiple finishes, and strength grades 4.8 and 8.8.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | Threaded Rod |
| Product Type | Fastener / Support Rod |
| Main Function | Enables connection, adjustment, support, or simple transmission when used in conjunction with nuts |
| Size Range | 1/4"–1" or M6–M24 |
| Material | Carbon Steel / Stainless Steel |

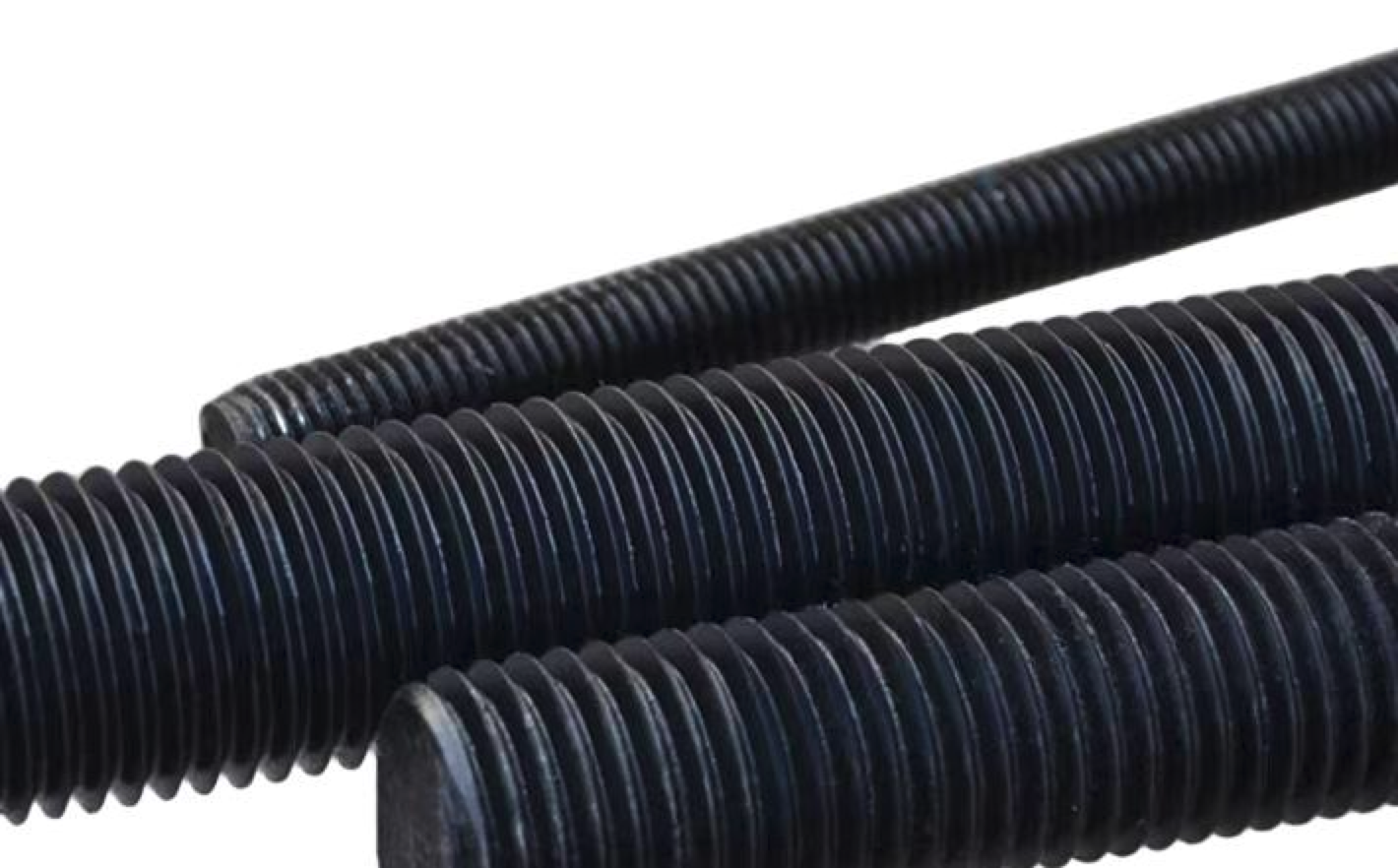

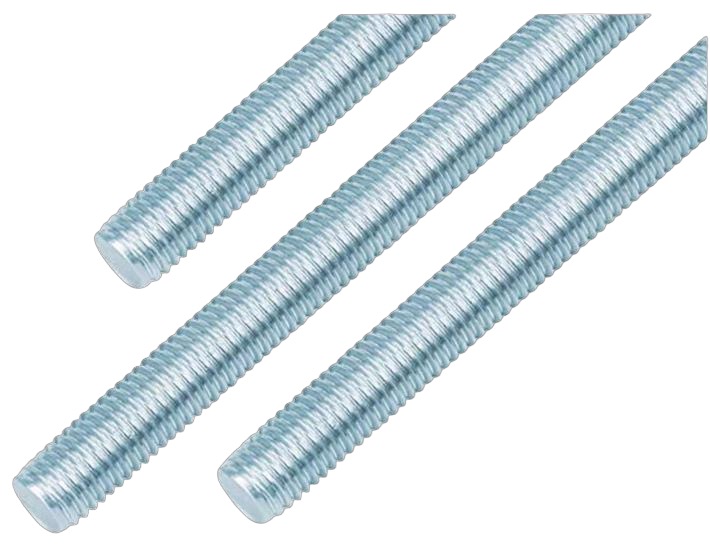

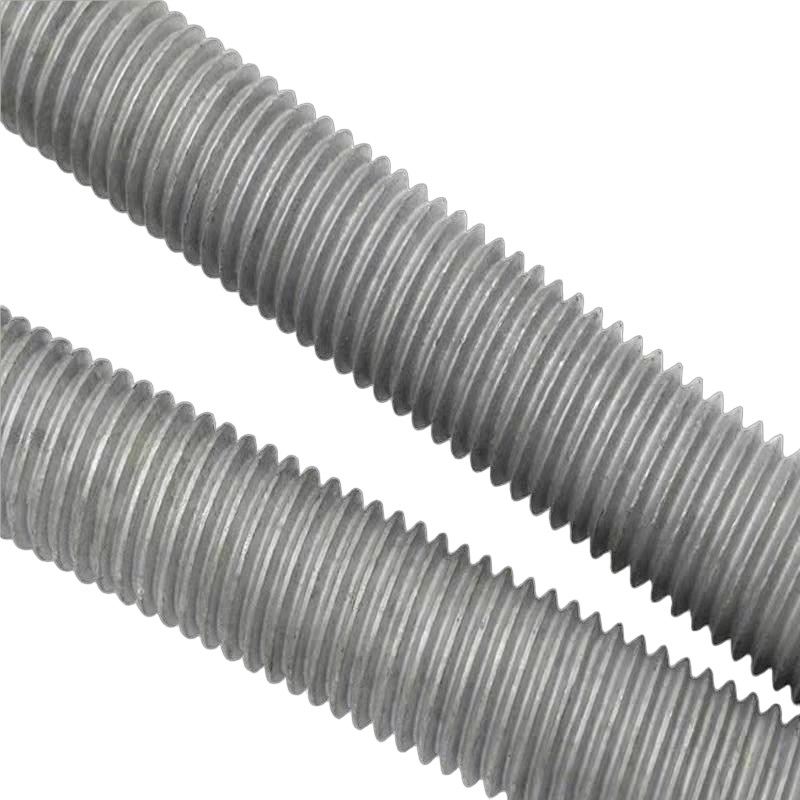

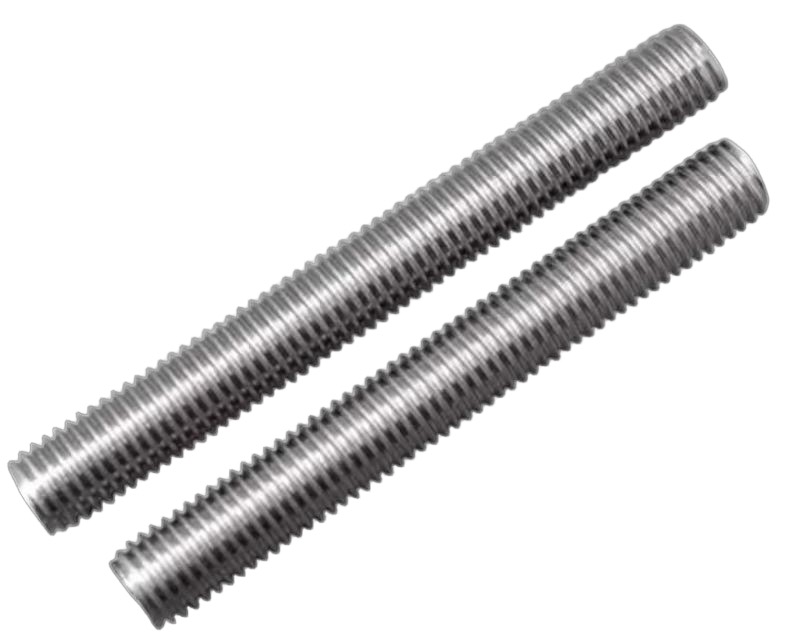

| Surface Finish | Black Plain / Electro-Galvanized / Hot-Dip Galvanized / Stainless Steel |
| Grade | 4.8 / 8.8 |
| Application | Pipe support, hangers, strut channel systems, framing, suspension systems |
| Installation Use | Used with nuts, washers, clamps, and support fittings |
| Order Information | Part No., Size, Length, Finish |
| Size | Weight | Max. Recommended Load |
|---|---|---|
| 1/4" | 0.14 lb/ft | 240 lbs |
| 3/8" | 0.31 lb/ft | 730 lbs |
| 1/2" | 0.57 lb/ft | 1350 lbs |
| 5/8" | 0.91 lb/ft | 2160 lbs |
| 3/4" | 1.30 lb/ft | 3230 lbs |
| 7/8" | 1.81 lb/ft | 4480 lbs |
| 1" | 2.35 lb/ft | 5900 lbs |
| M6 | 0.18 kg/m | 1060 N |
| M10 | 0.52 kg/m | 3240 N |
| M12 | 0.76 kg/m | 6000 N |
| M16 | 1.38 kg/m | 9600 N |
| M20 | 2.15 kg/m | 14300 N |
| M22 | 2.64 kg/m | 19900 N |
| M24 | 3.09 kg/m | 26200 N |
 |  |  |  |
FAQA threaded rod is used for connection, suspension, adjustment, and structural support when installed with nuts and washers. It is widely used in pipe hangers, strut channel systems, equipment supports, and building service installations.
According to your catalog, the available size range is 1/4 inch to 1 inch, or metric sizes from M6 to M24.
This product is available in carbon steel and stainless steel, allowing it to suit both standard support environments and more corrosion-sensitive applications.
The catalog lists black plain, electro-galvanized, hot-dip galvanized, and stainless steel finishes. These options help match different environmental and project requirements.
The catalog lists strength grades 4.8 and 8.8.
Yes. Threaded rods are widely used in pipe support and suspension systems, especially together with clamps, channel supports, and fastening accessories.
Galvanized threaded rods provide corrosion resistance for general service environments, while stainless steel threaded rods are better suited for applications where higher corrosion resistance is required.
Because it is easy to cut, adjust, install, and combine with nuts and fittings, making it one of the most practical and versatile support components in construction and industrial applications.
