Views: 0 Author: Site Editor Publish Time: 2026-03-11 Origin: Site
Specifying the correct AWWA C606 grooved fittings is a critical engineering prerequisite for ensuring long-term fluid integrity in municipal waterworks, fire protection networks, and industrial HVAC systems. Proper selection dictates the system's operational reliability under sustained hydrostatic pressure, dynamic surge conditions (water hammer), and mechanical stress. This guide is specifically formulated for procurement engineers, EPC (Engineering, Procurement, and Construction) contractors, project distributors, and fluid control technicians.
Unlike generic plumbing components, project-grade grooved mechanical joints require rigorous evaluation of metallurgical standards, specific pressure ratings, elastomeric seal compatibility, and comprehensive compliance documentation. This technical buyer's guide details the critical parameters required when sourcing ductile iron grooved fittings and outlines the supply chain capabilities of Maitolead Pipeline Technology (Tianjin) Co., Ltd.
The structural foundation of any reliable grooved piping network is the housing material. For heavy-duty industrial, municipal, and fire water applications, the coupling housings and mechanical fittings must be cast from Ductile Iron conforming to ASTM A536 Grade 65-45-12 (equivalent to ISO 1083 JS/450-10 or Chinese standard QT450-12).
The engineering advantage of ductile iron lies in its microstructure. Through the addition of nodularizing agents (like magnesium) during the casting process, the graphite within the iron forms spherical nodules rather than the sharp flakes found in standard grey cast iron. This nodular structure eliminates the internal stress-concentration points that typically cause cast iron to fracture under impact.
By specifying ASTM A536 Grade 65-45-12, engineers guarantee the following mechanical properties:
Tensile Strength (Min 65,000 psi / 448 MPa): Ensures the coupling housing will not rupture under extreme hydrostatic overloads.
Yield Strength (Min 45,000 psi / 310 MPa): Guarantees the fitting maintains its structural geometry and dimensional stability without permanent plastic deformation when subjected to maximum pipeline stresses.
Elongation (Min 12%): Provides exceptional ductility and fracture toughness. This elasticity is critical for absorbing seismic waves and mechanical vibrations in suspended fire protection standpipes and pump room headers.
At Maitolead, our manufacturing base in Cangzhou utilizes advanced DISA automated vertical molding lines. This automated foundry technology ensures absolute uniformity in casting wall thickness, eliminates internal porosities, and guarantees that the internal coupling keys dimensionally interlock with AWWA C606 cut or roll grooves with zero variance.
System operating pressures and transient surge conditions dictate the specific coupling profile required. Grooved fittings must be engineered to match the outer diameter (O.D.) tolerances of the pipe and the specific hydraulic demands of the application.
Maitolead manufactures a complete portfolio of grooved fittings spanning from small-diameter branch lines to massive municipal trunk mains. Our standard production covers sizes from DN15 (½″) up to DN600 (24″), with capabilities for even larger custom diameters required by heavy civil infrastructure projects.
Pressure tolerances are not uniform; they vary significantly based on the pipe schedule (wall thickness), the nominal diameter, and the specific coupling design. Procurement teams must verify the following:
Standard-Duty Couplings (Up to 300 PSI / 20.6 Bar): Engineered for the vast majority of commercial applications, including standard wet/dry fire sprinkler branch lines, municipal water distribution, and low-rise commercial HVAC chilled water systems.
Heavy-Duty / High-Pressure Couplings (Up to 500 PSI / 34.5 Bar): Designed with thicker housing cross-sections, reinforced bolt pads, and heavy-duty track bolts. These are mandatory for high-rise building standpipes, industrial reverse osmosis (RO) plants, mining dewatering systems, and high-pressure municipal pumping stations.
Engineering Note: Always refer to the specific Maitolead technical datasheet for the exact working pressure rating based on the pipe material (e.g., Schedule 10 vs. Schedule 40 carbon steel) being utilized in your project.
The elastomeric gasket serves as the primary hydrostatic sealing barrier in a grooved joint. Selecting an incompatible polymer will result in rapid chemical degradation, loss of resilience, and eventual catastrophic joint failure. Maitolead offers specialized gasket options formulated for precise media and thermal profiles:
The exterior surface treatment of ductile iron fittings is critical for preventing atmospheric oxidation, soil-induced galvanic corrosion, and chemical degradation. Specifying the correct factory-applied coating maximizes the lifecycle of the piping joint and minimizes maintenance overhead. Maitolead provides a comprehensive suite of coating options:
Red Paint / Standard Epoxy Coating: The default specification for Fire Protection systems (UL/FM approved networks). It provides high-visibility safety color coding and robust base-level corrosion resistance for indoor, climate-controlled environments.
Hot-Dip Galvanized: Provides superior cathodic protection. A zinc-iron alloy layers metallurgically bond to the ductile iron, offering self-healing protection against scratches. This is the mandatory choice for outdoor exposed pipelines, high-humidity pump rooms, coastal environments, and agricultural irrigation networks subject to continuous moisture.
Blue / White Epoxy Coating: Delivers a highly chemical-resistant, electrostatically applied, and thermally cured finish. The smooth surface resists bacterial growth and scaling. Frequently specified for Waterworks, potable municipal drinking water networks, wastewater processing facilities, and specific architectural HVAC pump rooms requiring color-coded systems.
The versatility of AWWA C606 grooved fittings allows them to be the primary jointing method across multiple heavy-duty infrastructure sectors:
Fire Protection (Fire Water): Wet, dry, pre-action, and deluge sprinkler systems rely on our UL Listed and FM Approved rigid and flexible couplings, mechanical tees, and reducers for rapid, reliable assembly.
Municipal Water & Waterworks: Large-diameter grooved networks are utilized in water treatment plants (WTP), desalination facilities, and urban fluid distribution lines due to their ability to accommodate pipe misalignment and ground settlement.
HVAC (Heating, Ventilation, and Air Conditioning): Flexible couplings are deployed strategically around chiller headers, cooling towers, and boiler connections to absorb thermal expansion/contraction cycles and isolate mechanical noise and vibration.
Irrigation & Mining: Rugged, galvanized mechanical joints capable of withstanding shifting terrain, hydraulic shock, and harsh abrasive environments in agricultural and extraction operations.
Procuring materials for large-scale engineering projects requires more than just high-quality hardware; it demands rigorous supply chain integration, total quality traceability, and robust compliance verification. With an annual capacity of 2 million sets of valves and 800 tons of stainless steel fittings, Maitolead provides comprehensive B2B support for global EPC contractors and distributors.
To support stringent site inspections, consulting engineer approvals, and regulatory audits, Maitolead supplies complete traceability documentation with every project batch:
Technical Datasheets: Providing exact dimensional tolerances, torque specifications, and hydraulic performance curves.
MTC (Material Test Certificate): Mill test reports verifying the ASTM A536 metallurgy, chemical composition, and physical properties per EN 10204 3.1 standards.
Hydrostatic Test Reports: Documented proof of factory pressure testing to guarantee zero-leakage performance under extreme loads.
Coating Reports: Verification of epoxy/galvanized thickness and adhesion testing results.
Compliance Statements: Official documentation confirming alignment with AWWA C606 standards, UL/FM approvals, and our ISO 9001 quality management framework.
We streamline the procurement lifecycle from the factory floor to the construction site:
Project Package Consolidation: We supply a complete Bill of Materials (BOM). From grooved couplings and cast fittings (elbows, tees, crosses) to mechanical tees, flange adapters, and integrated fire/water valves, we reduce vendor management complexity by providing a unified fluid control solution.
OEM & Custom Packaging: We offer palletized, barcode-labeled, and customized carton packaging to streamline on-site inventory management, reduce sorting time, and support distributor brand identity.
Engineering Sample Support: Dedicated sample dispatches are available for pre-project approval, destructive testing, and physical evaluation by third-party quality control teams.
A frequent engineering oversight is the misapplication of rigid versus flexible couplings. Selecting the correct coupling type is vital for the mechanical integrity of the piping run.
Rigid couplings feature an interlocking tongue-and-groove or angled pad design that clamps the pipe ends tightly together. They prevent both linear displacement and angular deflection. Application: Utilized in long straight runs, vertical standpipes, and pump room headers where the piping must remain entirely static and supported precisely like a welded or flanged system.
Flexible couplings are designed with a slightly wider keyway, allowing controlled linear displacement and angular deflection at the joint. Application: Strategically installed to accommodate thermal expansion, seismic shifts, structural settlement, and to isolate vibration from rotating equipment (pumps/chillers) without transmitting stress to the pipe wall.
Yes. Our core range of fire protection grooved fittings, including rigid couplings, flexible couplings, mechanical tees, and elbows, carry active UL Listings and FM Approvals. These certifications guarantee that the products have undergone rigorous third-party destructive testing and are fully compliant with NFPA 13 installation standards.

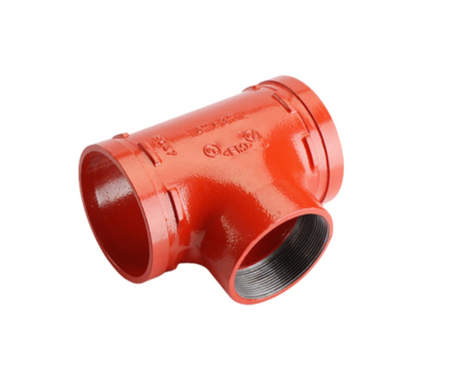

Mechanical tees (e.g., XGQT03 series) allow for rapid branch creation by cutting a precise hole in the main pipe and bolting the fitting around the diameter. This drastically optimizes field labor, especially during retrofits. However, the branch size is mechanically restricted by the structural integrity of the main pipe (branch outlets must be smaller than the main run). For full-flow characteristics or line-size branching, a standard cast grooved tee must be installed.
Unlike threaded fittings where tightness is subjective, grooved couplings require specific torque values depending on the bolt diameter (e.g., M10 to M22). Installation technicians must utilize a calibrated torque wrench. Over-torquing can fracture the ductile iron housing or yield the bolt, while under-torquing prevents the gasket lips from creating a primary hydrostatic seal. Engineers should refer directly to the Maitolead installation datasheet for the exact Nm/ft-lb parameters required for each coupling size.
EPDM gaskets can only be utilized if the compressed air system is 100% oil-free. If the system relies on lubricated air compressors, atomized synthetic or mineral oil vapor will travel through the pipeline. This oil carryover will chemically degrade the EPDM polymer, causing it to swell and eventually leak. For any system with hydrocarbon or oil exposure, NBR (Nitrile) gaskets must be specified during procurement.
Absolutely. We understand that government and large municipal waterworks projects require strict documentation. We provide complete MTCs (Material Test Certificates) according to EN 10204 3.1, hydrostatic test reports, and ISO 9001 compliance statements to satisfy the most rigorous bidding and handover requirements.
