In the realm of mechanical piping systems, the integrity of a fluid network relies entirely on the precise metallurgical and chemical composition of its connecting components. For mechanical contractors, municipal engineers, and procurement specialists, asking "what kind of material are grooved fittings made of" requires a highly technical answer. Selecting the appropriate material configuration dictates a system's hydrostatic pressure threshold, its resistance to galvanic and chemical corrosion, and its long-term lifecycle in demanding industrial environments.
This comprehensive technical guide dissects the exact materials utilized in manufacturing high-performance grooved fittings. By exploring the microstructure of standard housing metals, the advanced vulcanization chemistry of elastomeric seals, and the application of heavy-duty surface coatings, this guide serves as a definitive resource for specifying mechanical couplings in fire protection, HVAC, municipal waterworks, and heavy industrial fluid systems.
While specialty applications may demand stainless steel or copper, the undisputed industry standard for grooved fitting housings is Ductile Iron. However, strictly regulated manufacturing requires adherence to a very specific metallurgical grade: ASTM A536 Grade 65-45-12. This specific alloy provides the foundational strength for rigid couplings, flexible couplings, mechanical tees, and grooved valves.
To understand why ductile iron is utilized exclusively over traditional grey cast iron, one must examine the material at a microscopic level. During the foundry casting process, the molten iron is treated with precise amounts of magnesium. This inoculation process alters the crystallization of carbon within the metal. Instead of forming sharp, flake-like graphite structures—which create stress fracture points in grey iron—the graphite forms into spherical nodules.
This nodular microstructure grants ductile iron its unique name and physical properties, effectively bridging the gap between the superior castability and corrosion resistance of raw iron and the immense tensile strength of carbon steel. It is this precise composition that prevents catastrophic cracking under dynamic mechanical stress, hydraulic shock, or seismic activity.
Procurement engineers must verify that material test certificates (MTCs) reflect the exact mechanical properties outlined in the ASTM standard. The numbers "65-45-12" represent three critical performance metrics:
| Mechanical Property | Minimum Requirement | Engineering Significance in Piping Systems |
|---|---|---|
| Tensile Strength | 65,000 PSI (448 MPa) | Ensures the housing can withstand massive internal hydrostatic pressure without rupturing, critical for high-rise fire risers and heavy-duty industrial pump stations. |
| Yield Strength | 45,000 PSI (310 MPa) | The exact stress threshold before the fitting undergoes permanent plastic deformation. This guarantees the precise groove dimensions remain intact under operational load. |
| Elongation | 12% Minimum | Measures ductility. A 12% elongation factor ensures the coupling can stretch and absorb vibration, pipe deflection, and thermal expansion without brittle fracturing. |
The raw material is only half the equation; precision machining dictates the joint's success. Ductile iron housings must be CNC-machined to conform to ANSI/AWWA C606, the definitive standard governing the exact geometry of cut and roll grooves, as well as the coupling keys. Concurrently, the overall mechanical performance of the assembled fitting must comply with ASTM F1548. Strict adherence to these frameworks guarantees global cross-compatibility among different pipe schedules and prevents gasket extrusion under pressure.
If the ductile iron housing acts as the structural skeleton, the elastomeric gasket serves as the lifeblood of the mechanical joint. Grooved systems utilize a highly engineered, pressure-responsive C-shaped profile. Upon installation, the gasket stretches over the pipe ends, creating an initial seal. As the system is pressurized, fluid enters the internal cavity of the C-profile, forcing the sealing lips outward against the pipe exterior. The higher the internal pressure, the tighter the seal.
Specifying the correct elastomer compound is paramount to preventing chemical degradation, thermal hardening, or premature system failure.
Identified by a green color stripe or dot, EPDM is the predominant gasket material for water-based infrastructure. Through advanced vulcanization, EPDM achieves exceptional resistance to oxidation, ozone degradation, and ultraviolet exposure.
Operating Temperature Range: -34°C to +110°C (-30°F to +230°F).
Optimal Applications: Municipal potable water distribution, wastewater treatment, chilled water HVAC loops, hot water heating networks, and dilute acidic solutions.
Strict Limitations: EPDM exhibits zero resistance to hydrocarbons. It must never be exposed to petroleum-based fluids, mineral oils, combustible fuels, or lubricants, as these chemicals will rapidly swell and disintegrate the polymer structure.
Often designated with an orange color code, NBR (Buna-N) is a synthetic rubber copolymer engineered specifically for environments where EPDM fails: non-polar hydrocarbon exposure.
Operating Temperature Range: -29°C to +82°C (-20°F to +180°F).
Optimal Applications: Industrial hydraulic fluid lines, petroleum processing, lubricating oil networks, and compressed air systems utilizing oil-lubricated compressors.
Strict Limitations: NBR is highly susceptible to degradation from extreme heat and ozone. It is expressly prohibited for use in hot water applications exceeding 82°C or any steam systems.
Silicone gaskets (typically featuring a red or white designation) are reserved for highly specialized, extreme-environment fluid networks requiring rigorous hygienic compliance or massive thermal tolerance.
Operating Temperature Range: -40°C to +177°C (-40°F to +350°F).
Optimal Applications: High-temperature dry air blowers, specialized chemical processing, food and beverage manufacturing, and medical gas distribution lines. Its non-toxic, odorless composition ensures zero contamination of the transport medium.
Bare ductile iron oxidizes rapidly when exposed to atmospheric moisture or buried underground. To guarantee decades of uninterrupted service, grooved fittings must be shielded by industrial-grade surface coatings. The selection of this protective barrier depends entirely on the ambient installation environment and the specific regulatory approvals required by the project.
Epoxy coatings provide a highly dense, cross-linked thermoset polymer barrier that effectively halts galvanic and chemical corrosion. The application process typically involves rigorous surface preparation (sandblasting) followed by electrostatic powder deposition or liquid immersion, baked at high temperatures to achieve a permanent bond.
Blue Epoxy: The universal standard for municipal waterworks and potable water infrastructure. High-quality blue epoxy coatings are formulated to be non-toxic and typically carry international hygienic certifications such as WRAS (Water Regulations Advisory Scheme) or NSF/ANSI 61.
Red Epoxy: Frequently specified for premium, heavy-duty fire protection systems, particularly in highly humid or slightly corrosive industrial environments where standard paint would degrade.
White Epoxy: Deployed in cleanroom environments, semiconductor manufacturing facilities, or architectural applications requiring specific aesthetic integration.
The most ubiquitous coating in the industry is the standard factory-applied liquid paint. Specifically formulated for indoor environments protected from severe weather, this coating is the economic baseline for non-corrosive installations.
Red Paint: The globally recognized standard for wet, dry, and pre-action fire sprinkler systems.
Orange Paint: Often utilized for standard mechanical plumbing, compressed air, and indoor HVAC chiller lines.
For high-corrosion environments, standard paint and basic epoxies are insufficient. Hot-dip galvanization involves submerging the fully machined ductile iron fitting into a bath of molten zinc (typically around 450°C). This creates a highly durable, metallurgical alloy bond between the iron substrate and the zinc layer, offering superior cathodic protection.
Primary Applications: Exterior cooling towers, offshore maritime platforms, subterranean installations, and environments exposed to high atmospheric salinity. It is critical to note that galvanizing must be performed by the original manufacturer to ensure the zinc thickness does not compromise the precise AWWA C606 groove dimensions.
Dacromet is an inorganic coating technology composed of overlapping zinc and aluminum flakes suspended in a chromate binder. It offers exceptional salt-spray corrosion resistance at a fraction of the thickness of hot-dip galvanizing.
Primary Applications: High-stress mechanical bolts and nuts, or specific fitting housings where dimensional tolerances are incredibly tight, and the risk of hydrogen embrittlement (a potential side effect of some plating processes) must be completely eliminated.
In massive capital projects, the supply chain is just as critical as the metallurgy. Sourcing components from generic foundries introduces severe liability risks. MaitoLead Pipeline Technology (Tianjin) Co., Ltd. operates as a fully integrated, tier-one manufacturing base, combining advanced DISA molding lines, precision CNC machining, and rigorous assembly under an audited ISO 9001 quality management framework.
With an annual manufacturing capacity encompassing millions of sets of mechanical piping components, valves, and stainless steel fittings, MaitoLead is engineered from the ground up to support the aggressive procurement timelines and strict compliance demands of global contractors and distributors.
MaitoLead supplies a complete ecosystem for grooved mechanical piping, ensuring single-source accountability for your entire bill of materials. Our core offerings include:
Broad Dimensional Tooling: We manufacture fittings ranging from standard DN15 (1/2") through DN250 (10") and significantly larger specifications, ensuring seamless integration from massive mainlines down to the smallest branch connections.
Verified Pressure Ratings: Our standard ductile iron portfolio is engineered for continuous operation at 300 PSI, while our heavy-duty product tier is built to withstand extreme mechanical loads and hydrostatic pressures up to 500 PSI, depending on coupling size and pipeline schedule.
Exhaustive Certifications: System safety is non-negotiable. MaitoLead products maintain comprehensive global certifications, prominently featuring UL Listings and FM Approvals for critical fire protection deployment. Our adherence to PED, ATEX, AD2000, REACH, ROHS, and WRAS directives ensures compliance across European and North American regulatory bodies.
We understand that modern engineering procurement requires absolute transparency and traceable documentation. MaitoLead empowers project managers through robust technical support:
Traceable Documentation: Upon request, we furnish comprehensive engineering Datasheets, Material Test Certificates (MTC / EN 10204 3.1), Hydrostatic Test Reports, Coating Micron Inspection Reports, and official Compliance Statements.
Custom OEM & Packaging Logistics: We support deep OEM customization, bespoke project-specific packaging logistics, and specialized coating configurations (such as specific municipal blue epoxy shades mandated by local water authorities).
Pre-Production Qualification: To eliminate procurement risk, we actively support engineering qualification by supplying prototype samples, structural test data, and CAD technical drawings prior to mass production commitments.
The synergy of ASTM A536 ductile iron, application-specific elastomers, and advanced coatings enables MaitoLead fittings to dominate diverse industrial sectors.

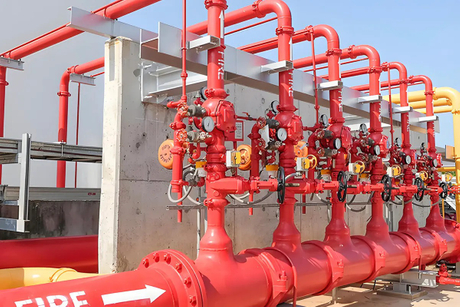

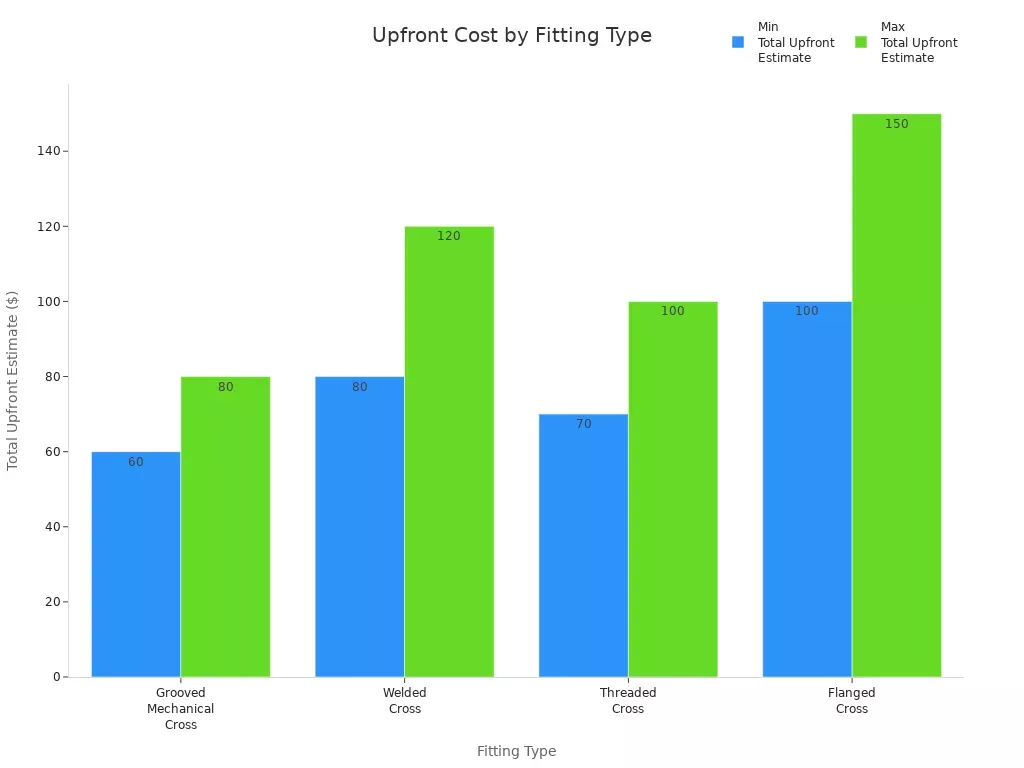

In life-safety fire sprinkler networks, speed and reliability are paramount. Red-painted or galvanized ductile iron housings, paired with UL/FM-approved EPDM gaskets, allow contractors to assemble complex piping arrays without the fire hazards, toxic fumes, and intense labor costs associated with hot welding. Furthermore, the inherent flexibility of grooved joints actively absorbs the extreme hydraulic shock (water hammer) generated when heavy-duty fire pumps engage.
City water mains and wastewater treatment plants demand multi-decade longevity. Heavy-duty ductile iron fittings coated in WRAS-approved blue epoxy provide an impenetrable barrier against subterranean corrosion. The mechanical nature of the joint allows municipal maintenance crews to rapidly unbolt, expand, or repair pipeline sections without requiring system-wide shutdowns or specialized welding crews.
Commercial heating, ventilation, and air conditioning systems generate massive dynamic stress through constant thermal expansion, contraction, and mechanical vibration from chillers and cooling towers. Instead of specifying highly expensive, dedicated expansion joints, mechanical engineers utilize arrays of flexible grooved couplings to naturally attenuate vibration and accommodate linear pipe movement.
When transitioning from blueprint specification to active purchasing, procurement officers must aggressively vet their supply chain to mitigate catastrophic project failures. Always execute the following checks:
Demand Metallurgical Proof: Never accept the vague term "cast iron." Insist on reviewing the MTC to confirm the exact chemical composition aligns with ASTM A536 Grade 65-45-12.
Audit Gasket Chemistry: Cross-reference the system's fluid media, maximum operating temperature, and potential for chemical additives against the manufacturer's elastomer data. Never default to EPDM if hydrocarbon contamination is possible.
Verify Approvals via Database: For fire protection projects, visual stamps on a fitting are insufficient. Proactively cross-reference the manufacturer's UL file numbers and FM approval certificates directly through the respective agency's online database.
Specify Factory Coatings Only: Never purchase raw fittings to be hot-dip galvanized by a third party later. Post-manufacturing galvanization alters the precise AWWA C606 groove dimensions and immediately voids all UL/FM life-safety certifications. Always source factory-coated components.
Constructing resilient, high-pressure pipeline infrastructure requires a foundation built on verified metallurgy, certified sealing technologies, and uncompromising factory quality control. Whether your project demands standard HVAC configurations or heavily specialized, AWWA-compliant municipal waterworks components, MaitoLead Pipeline Technology delivers the rigorous engineering data, product reliability, and comprehensive supply chain support necessary for flawless project execution.
