Overview
Angle connectors are essential fittings in strut channel framing systems, used to join support members at fixed angles and create stable metal frame structures. They are commonly applied in pipe support systems, cable tray supports, mechanical frames, wall-mounted brackets, equipment bases, and seismic restraint assemblies. By offering different angle options, they allow installers to create more flexible and project-specific support structures without complex on-site fabrication.
This connector series is especially suitable for projects requiring modular assembly and efficient installation. The 90° version is ideal for standard right-angle joints, the 45° version is commonly used in diagonal or inclined framing layouts, and the 135° versions provide wider-angle connections for special support structures. In your new catalog, these models are grouped as angle connectors for creating metal frames with strut channels, with carbon steel construction and galvanized finish options.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | Angle Connector |
| Product Type | Strut Fitting / Frame Connector |
| Main Function | Used to create metal frames with strut channels |
| Available Types | 90° Angle Connector / 45° Angle Connector / 135° Two-Hole Angle Connector / 135° Four-Hole Angle Connector |
| Size | Customized Size |
| Material | Carbon Steel |
| Surface Finish | Electro-Galvanized / Hot-Dip Galvanized |
| Hole Option | M12 hole available depending on model |
| Thickness | 5 mm on listed standard models |
| Application | Strut channel framing, support systems, equipment frames, modular metal structures |
| Installation Use | Corner joints, angled joints, support frame assembly |
| Type | Typical Feature |
|---|---|

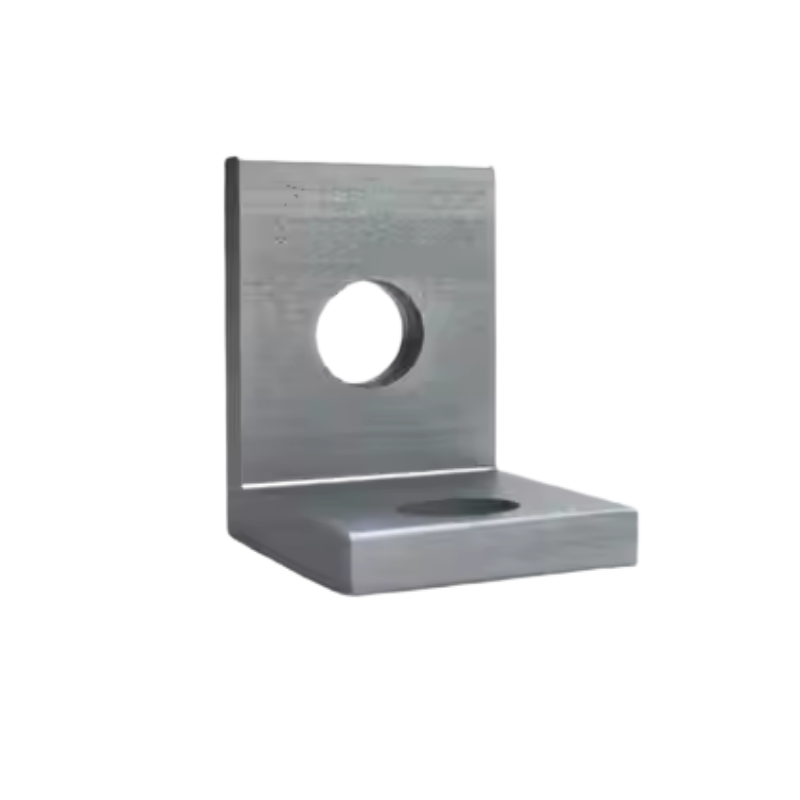

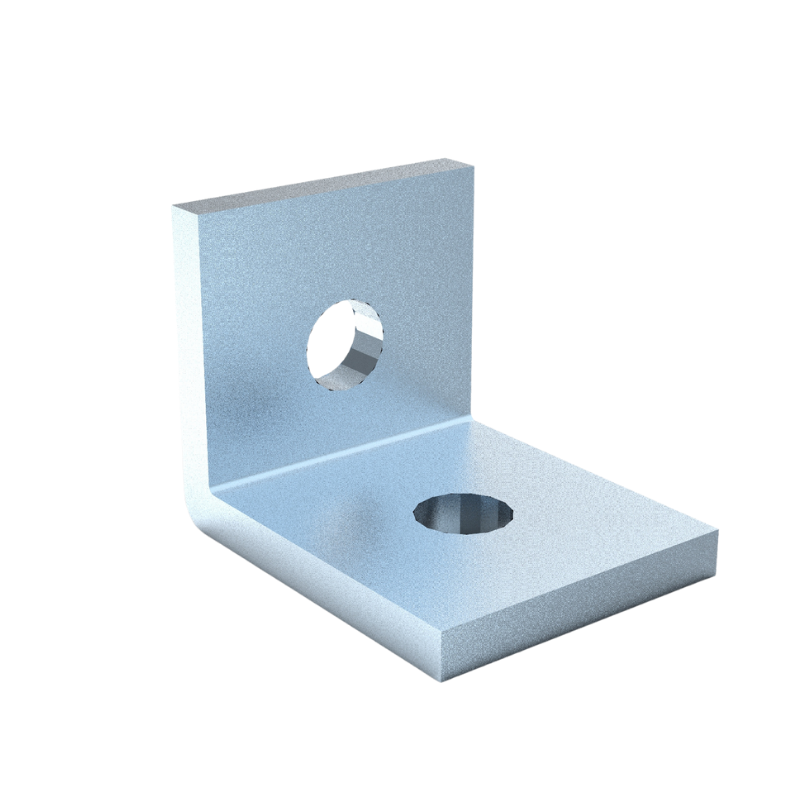

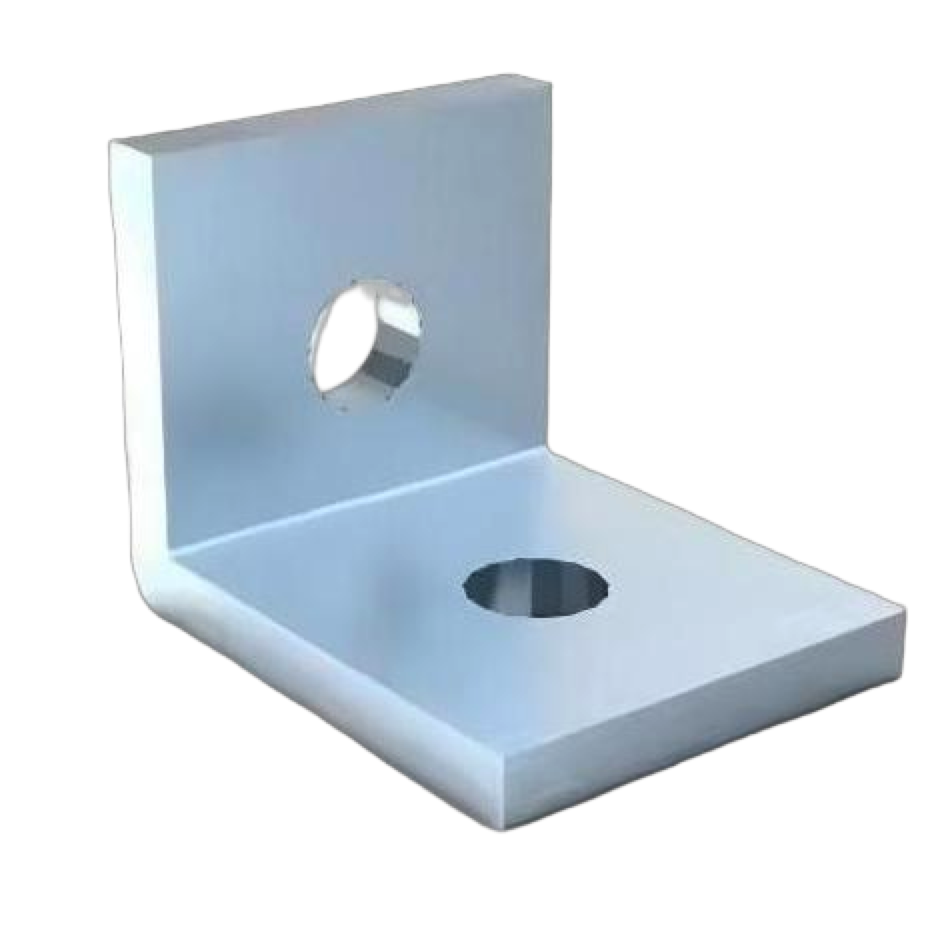

| 90° Angle Connector | Standard right-angle connection for strut channel frames |

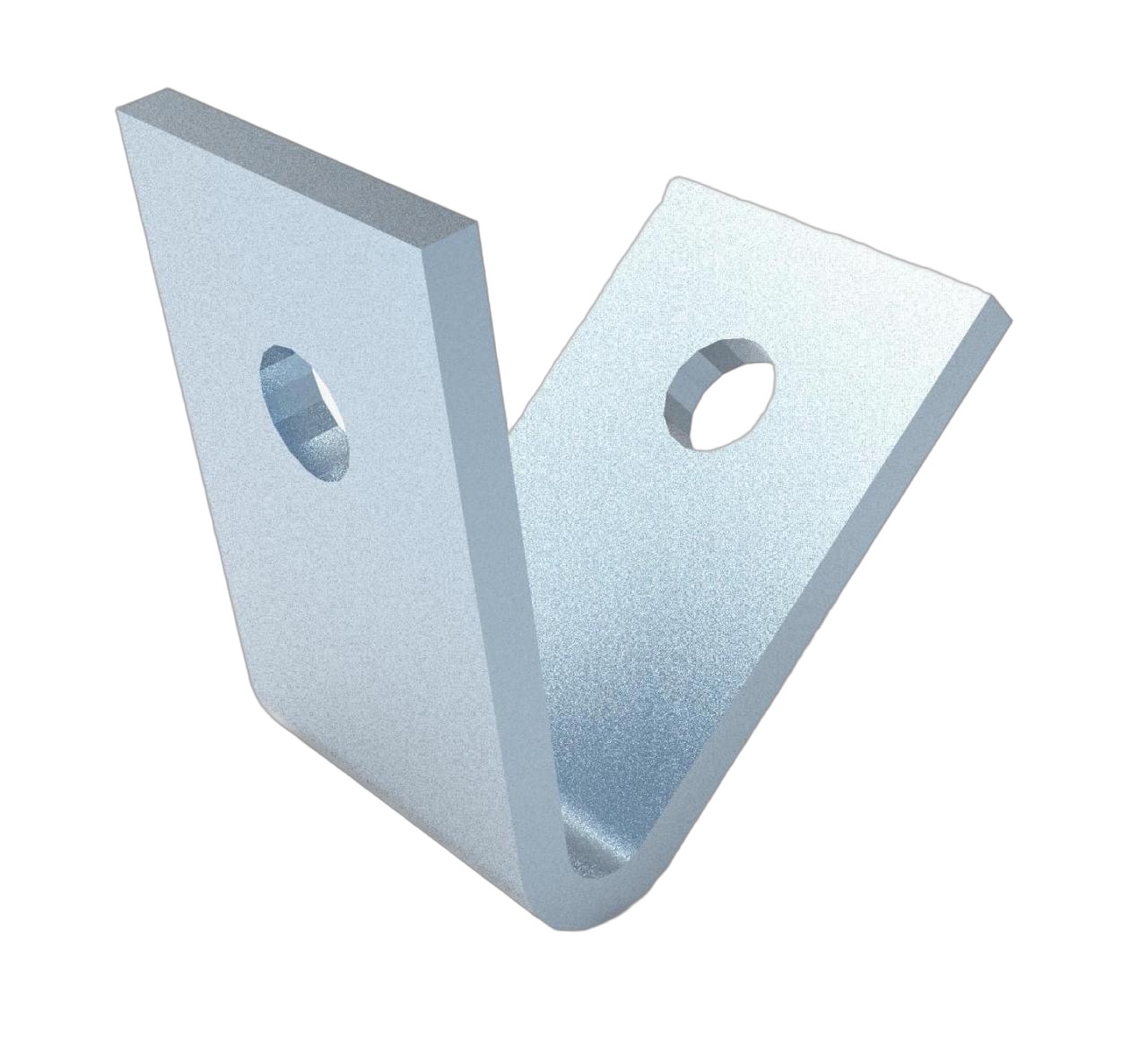

| 45° Angle Connector | Suitable for inclined or diagonal frame connections |

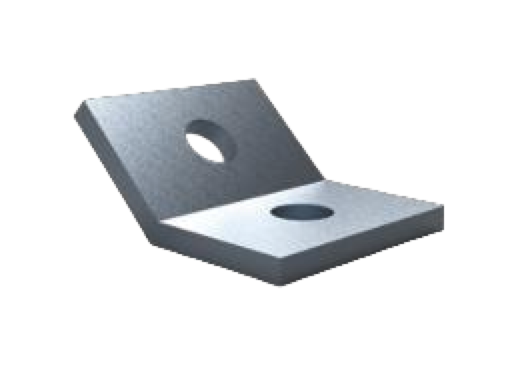

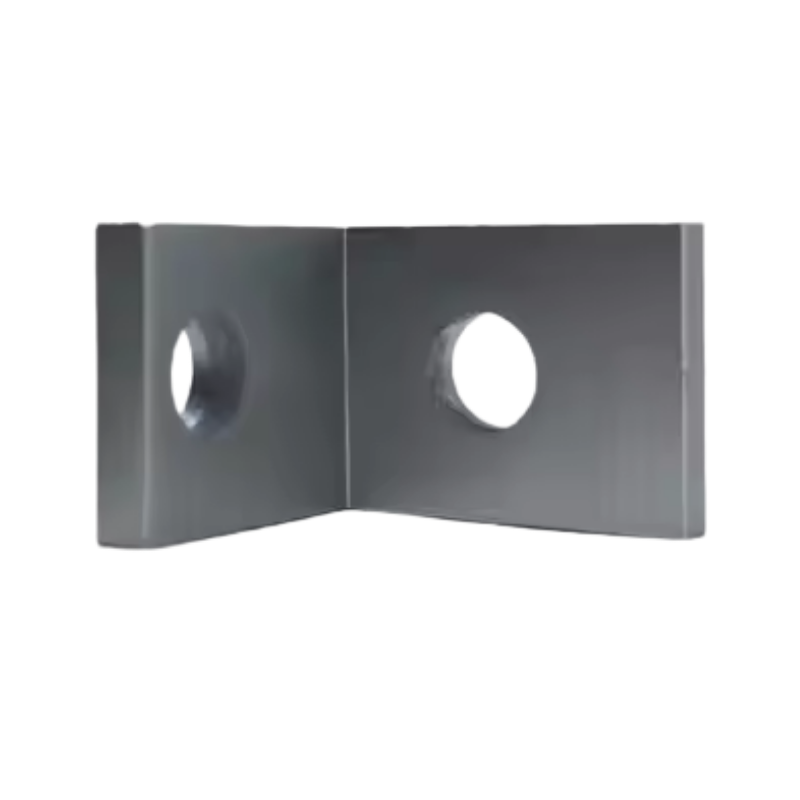

| 135° Two-Hole Angle Connector | Wide-angle connection with two-hole structure |

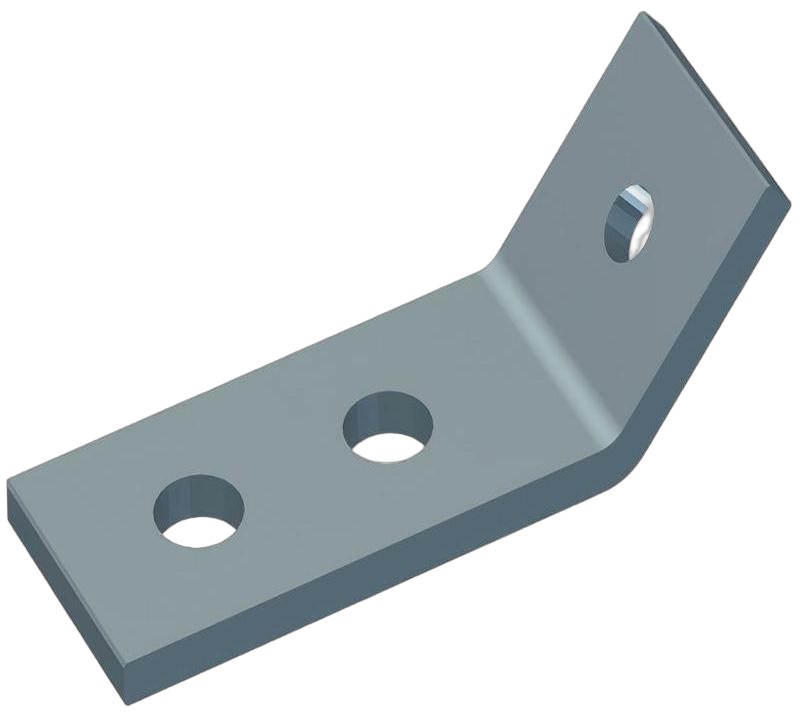

| 135° Four-Hole Angle Connector | Wide-angle connection with stronger four-hole fixing layout |
 |  |  |  |
FAQAn angle connector is used to join strut channels and create metal frames in support and framing systems. It is commonly used in pipe supports, equipment frames, wall brackets, and modular channel structures.
Yes. Since these products share the same main function, material, finish, and application, they can be combined into one general product page with different angle options shown as variants. This is also better for website structure and SEO.
This connector series includes 90°, 45°, 135° two-hole, and 135° four-hole versions. Different angles are suitable for different frame layouts and connection requirements.
According to your catalog, these angle connectors are made from carbon steel, providing reliable strength for structural frame connection applications.
These products are available in electro-galvanized and hot-dip galvanized finishes, which help improve corrosion resistance in different service environments.
Yes. The catalog describes them as customized size products, which means they can be adapted according to project requirements.
They are widely used in strut channel framing systems, pipe support systems, cable tray supports, HVAC installations, equipment support structures, and modular metal frames.
Angle connectors help create strong and consistent joints, reduce field welding or fabrication, improve installation efficiency, and make the support structure easier to standardize.
