Product Overview
A lateral bracing clamp is an important component in seismic restraint systems because it helps connect the bracing assembly to the pipe and provides resistance against horizontal sway. In fire sprinkler and mechanical piping systems, lateral restraints are used to reduce pipe movement during seismic events and improve overall system stability.

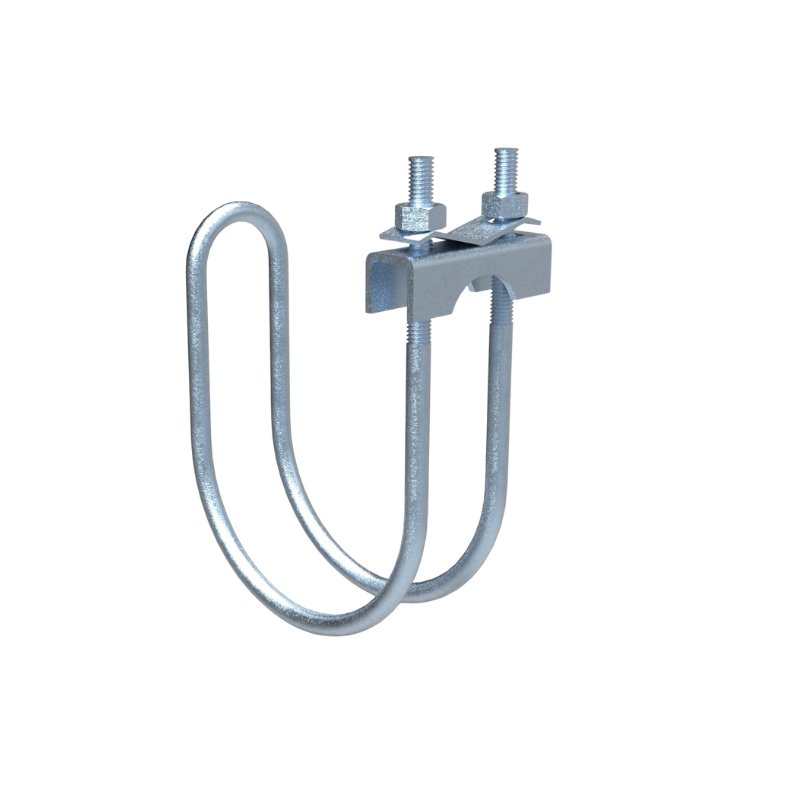

This product is designed as a quick lateral bracing clamp for use in suspended steel piping systems. According to the catalog, it is designed for bracing pipe against sway and seismic disturbance, suitable for Sch 10, Sch 40, GB/T 3091, and JIS G3454 sprinkler steel pipe, and fits pipe sizes from 1-1/2" through 8". The product is made of carbon steel and finished with electro-galvanized treatment for corrosion resistance. The catalog also shows UL & FM & CE approved markings for this product type.
Designed for lateral seismic restraint of steel pipe
Suitable for fire sprinkler and mechanical piping systems
Quick clamp design for efficient installation
Fits multiple common steel pipe standards
Covers pipe sizes from 1-1/2" to 8"
Carbon steel construction for reliable support performance
Electro-galvanized finish for improved corrosion resistance
Suitable for seismic sway bracing applications
Product Parameters
| Item | Description |
|---|---|
| Product Name | Quick Lateral Bracing Clamp |
| Product Type | Seismic Bracing Clamp |
| Application | Lateral sway bracing / seismic restraint for steel pipe |
| Typical Use | Fire sprinkler piping, mechanical pipe systems |
| Compatible Pipe Standards | Sch 10, Sch 40, GB/T 3091, JIS G3454 |
| Pipe Size Range | 1-1/2" thru 8" |
| Material | Carbon steel |
| Surface Finish | Electro-galvanized |
| Certifications | UL & FM & CE approved |
Fire sprinkler piping systems
HVAC pipe support systems
Mechanical piping systems
Plumbing installations
Commercial and industrial buildings requiring seismic restraint
It is used in seismic sway bracing systems to help restrain steel pipe against lateral movement caused by vibration or seismic disturbance.
It is commonly used in fire sprinkler piping systems and other suspended mechanical piping installations that require lateral seismic restraint.
According to the catalog, it is suitable for Sch 10, Sch 40, GB/T 3091, and JIS G3454 sprinkler steel pipe.
The catalog states that it fits pipe sizes from 1-1/2" through 8".
The product is made of carbon steel for reliable strength in seismic bracing applications.
It has an electro-galvanized finish to improve corrosion resistance.
Yes. The catalog specifically states that it is designed for bracing pipe against sway and seismic disturbance.
Yes. It is designed for sprinkler steel pipe systems and is suitable for fire sprinkler seismic restraint applications.
Its main advantages include quick installation, compatibility with multiple steel pipe standards, wide pipe size coverage, durable carbon steel construction, and corrosion-resistant finish.
Yes. The catalog page shows UL & FM & CE approved for this product type. Final project compliance should still be confirmed according to local code and project requirements.
