Overview

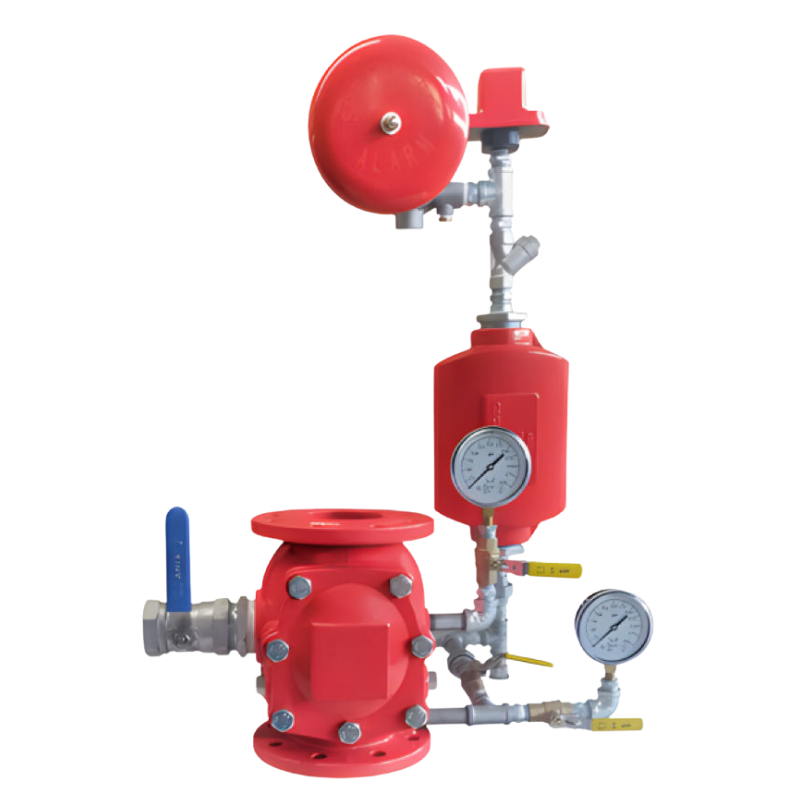

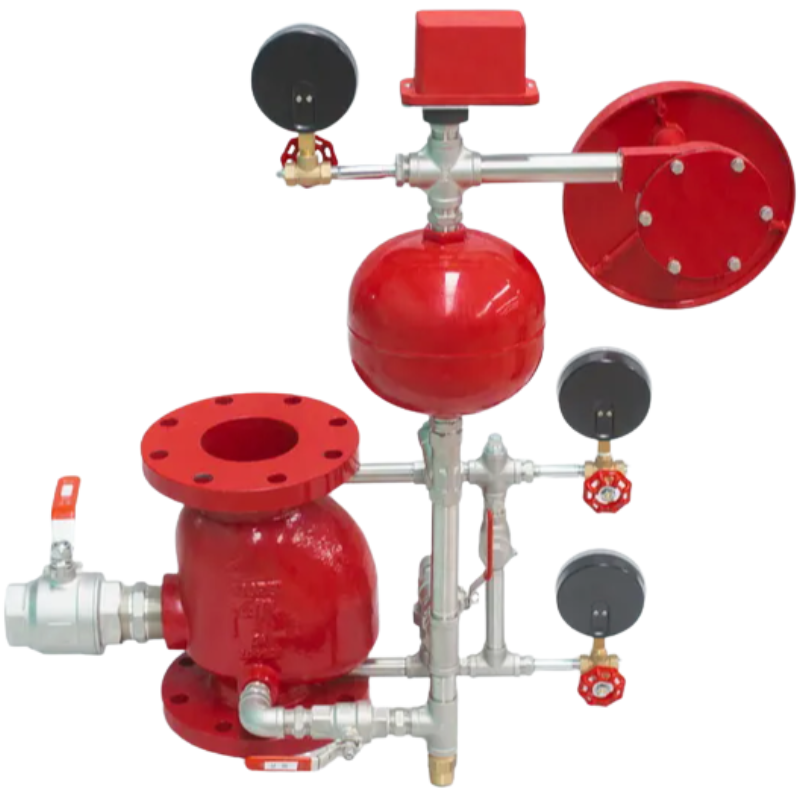

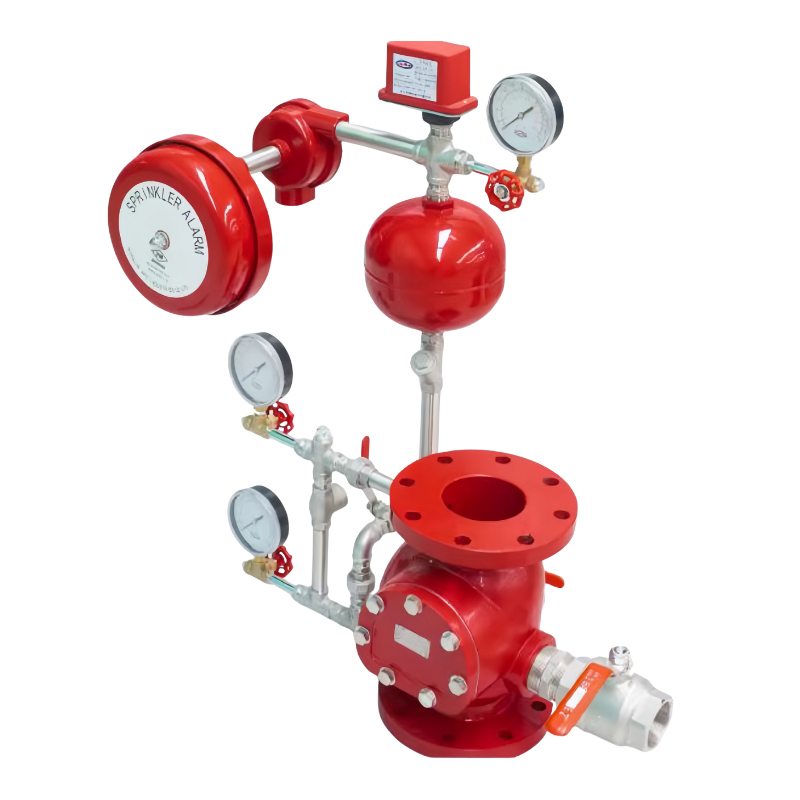

The Wet Alarm Check Valve Assembly is a key component used in wet pipe fire sprinkler systems. It is designed to detect water flow caused by the activation of one or more automatic sprinklers and to initiate both local and remote fire alarms.
The assembly integrates a wet alarm valve, retard chamber, pressure gauges, water motor alarm, pressure switch, drain valve, filter, and associated trim components, providing reliable alarm activation while minimizing false alarms caused by pressure fluctuations.
The Wet Alarm Check Valve functions as a water flow alarm initiating device in wet pipe sprinkler systems. When a sprinkler operates due to fire exposure, water flows through the system, causing the alarm check valve clapper to open. This allows continuous water flow into the system and simultaneously activates the water motor alarm and pressure switches.
The valve is designed for installation under both variable and constant water supply pressure conditions. A built-in bypass line within the valve trim allows a small amount of water to bypass the clapper during temporary pressure surges, effectively eliminating the risk of false alarms.
For proper operation, the valve must be installed vertically with the water flow direction pointing upward, and sufficient space should be reserved for inspection, repair, and maintenance.
Technical Features
| Flange Standard: | ASMEIANSI B16.1 Class 125,ASME/ANSI B18.42 Class 150,BS EN 1092-2PN18,GB/T9113.1 |
| Groove Standard: | AWWA C806,ISO6182-12 |
| Working Pressure: | 300 PSI |
| Coating Details: | Epoxy coated or ooating upon request |
| Wide Temperature Range | 4~70℃/39.2~158°F |
| Approvals: | FM/UL |
| ![]() |
Reliable Water Flow Detection
Activates mechanical and electrical alarms immediately upon sprinkler operation.
False Alarm Prevention Design
Retard chamber and bypass line absorb water pressure surges, preventing nuisance alarms.
Complete Valve Assembly
Includes wet alarm valve, retard chamber, pressure gauges, water motor alarm, pressure switch, drain valve, and filter.
Stable Performance Under Various Pressure Conditions
Suitable for systems with fluctuating or constant water supply pressure.
Easy Observation & Maintenance
Designed for installation in locations with clear visibility and easy access.
Vertical Installation Design
Ensures correct clapper operation and accurate alarm activation.
Install the wet alarm check valve vertically on a pipeline that has been pressure-tested and thoroughly cleaned.
Ensure the arrow indicating water flow direction points upward.
Reserve sufficient operating space for future inspection and maintenance.
The pipeline inner wall must be treated with a rust-proof coating and free from debris or contaminants before installation.
Step 1
Clean the entire pipeline system before installation. Ensure there is no dirt, debris, or residue inside the pipes.
Step 2
To facilitate easy identification of alarm conditions, it is recommended to provide an open discharge port or a clearly visible water discharge point.
Step 3
Check the flange connection, sealing condition, and valve disc movement.
Conduct a leakage test at twice the rated working pressure.
After testing, the valve disc must remain leak-free. Replace damaged parts or eliminate faults before final assembly.
Application
Fire protection systems (sprinkler and water-based fire fighting pipelines)
Municipal water supply and distribution systems
Underground and buried piping installations
Commercial and industrial buildings
Pump stations and mechanical rooms
Infrastructure and utility projects
Retrofit projects combining flanged and grooved piping systems
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |

Faq
It detects water flow caused by sprinkler activation and initiates both local mechanical alarms and remote electrical signals.
A bypass line and retard chamber absorb temporary pressure surges, allowing small amounts of water to pass without triggering alarms.
Yes. The valve is designed to operate reliably under both variable and constant water supply pressure conditions.
The valve must be installed vertically, with the water flow direction pointing upward.
The assembly includes the wet alarm valve, retard chamber, pressure gauges, water motor alarm, pressure switch, drain valve, filter, and trim components.
Sufficient space should be reserved around the valve for inspection, testing, and maintenance operations.
