Views: 0 Author: Site Editor Publish Time: 2026-04-28 Origin: Site
A butterfly valve is a compact, lightweight, and cost-effective flow control solution widely used in fire protection, HVAC, water supply, water treatment, and industrial piping systems. Its quarter-turn operation allows fast opening and closing, while its simple structure helps reduce installation space, installation weight, and maintenance work.
For engineering projects, choosing the right butterfly valve is not only about price. Buyers also need to evaluate product type, body material, seat material, pressure rating, connection standard, application environment, and certification requirements. A valve used in a fire protection system may require UL/FM approval, while a valve used in HVAC or water supply may focus more on connection type, pressure rating, corrosion protection, and long-term sealing performance.
Maitolead provides butterfly valve solutions for fire protection, HVAC, and water supply projects, including grooved, wafer, lug, flanged, and gear-operated designs. With ductile iron body options, EPDM/NBR seat materials, PN10/PN16/Class 150 pressure options, and UL/FM/ISO-related quality support, these products are designed for practical pipeline applications.
A butterfly valve is widely used because it is compact, lightweight, fast to operate, and easy to maintain.
Main product types include wafer, lug, flanged, grooved, resilient seated, and gear-operated designs.
A ductile iron body with EPDM or NBR seat is commonly used for water-based systems.
Common pressure ratings include PN10, PN16, Class 150, and fire protection pressure ratings depending on the approved model.
UL/FM certification is often required for fire protection projects.
The right butterfly valve should be selected based on application, medium, pressure, connection type, operation method, and certification.
Maitolead supplies practical valve solutions for fire protection, HVAC, and water supply systems.
A butterfly valve controls flow through a rotating disc positioned inside the pipe. When the disc turns 90 degrees, the valve changes from fully closed to fully open. This quarter-turn design makes operation faster and simpler than many multi-turn valve structures.
In many pipeline systems, the value of a butterfly valve comes from its balance of performance, installation efficiency, and cost control. It is especially useful for medium and large-diameter pipelines where space, weight, and quick operation matter.
Advantage | Practical Value |
|---|---|
Compact design | Saves installation space in pump rooms, mechanical rooms, and pipeline networks. |
Light weight | Reduces pipe load and makes installation easier. |
Fast operation | Quarter-turn operation allows quick shut-off and flow control. |
Cost efficiency | Uses a simpler body structure and less material than many traditional valve types. |
Easy maintenance | Fewer moving parts help reduce routine maintenance requirements. |
Flexible connection | Available in wafer, lug, flanged, and grooved connection types. |
Wide application | Suitable for fire protection, HVAC, water supply, and water treatment systems. |
Different piping systems require different connection methods. Choosing the correct structure helps improve installation efficiency, sealing performance, and long-term system reliability.
A wafer butterfly valve is installed between two pipe flanges. Its slim body design makes it one of the most compact and economical options for pipeline systems.
This type is commonly used in HVAC systems, water supply pipelines, building service systems, and general industrial piping. It is suitable when the project needs a space-saving valve that can be installed between standard flanges.
A lug butterfly valve has threaded lugs around the valve body. This design allows bolts to be installed from both sides, making the valve easier to use in systems that may require partial pipeline disassembly.
It is often considered for HVAC systems, water distribution systems, and industrial service lines where maintenance flexibility is important. Compared with a wafer design, a lug structure can provide better convenience when one side of the pipeline needs to be removed.
A flanged butterfly valve has integral flanged ends, offering a stable and secure connection for larger pipelines or systems requiring stronger installation support.
This type is commonly used in municipal water supply, pump stations, water treatment plants, HVAC systems, and industrial pipelines. It is a practical option when the project requires easier alignment with flanged piping systems and reliable long-term operation.

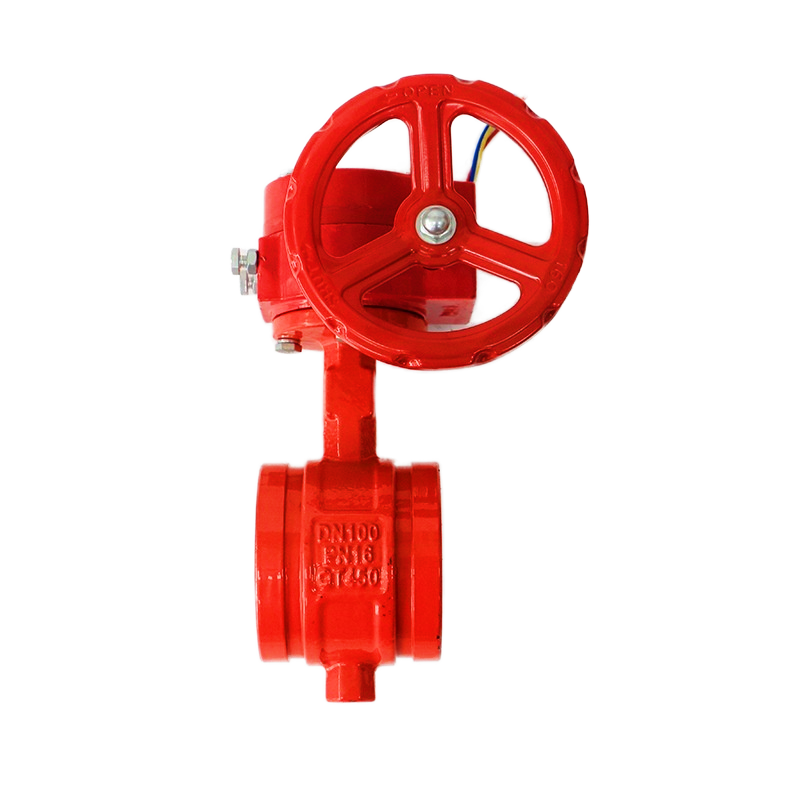

A grooved butterfly valve is widely used in fire protection and building service systems. Its grooved-end connection supports quick installation with couplings and usually does not require welding.
This makes it suitable for sprinkler systems, fire pump rooms, HVAC chilled water systems, heating water systems, and building water supply networks. The main advantages include quick installation, compact structure, reliable sealing, and convenient maintenance.
For larger sizes or higher operating torque, a gear-operated butterfly valve can make manual operation easier and more stable. The worm gear operator helps reduce operating force and provides better control during opening and closing.
This structure is useful in fire protection, HVAC, water supply, and building service systems where valves may be installed in pump rooms, risers, or large-diameter pipeline sections.
Material selection directly affects valve strength, sealing performance, service life, and media compatibility. For water-based piping systems, the most common configuration is a ductile iron body with EPDM or NBR seat.
A ductile iron butterfly valve is widely used in fire protection, HVAC, and water supply systems because ductile iron provides a strong balance of mechanical strength, durability, and cost efficiency.
Compared with gray cast iron, ductile iron offers better impact resistance and pressure-bearing performance. It is suitable for medium and large-diameter pipelines, building service systems, municipal water networks, and fire protection water lines.
EPDM is commonly used for clean water, HVAC water, and fire protection water systems. It has good performance in water-based applications and is often selected for chilled water, heating water, municipal water supply, and general building water systems.
NBR is often selected when the working medium requires better oil resistance. It may be suitable for certain industrial water systems or media containing oil. The final seat material should always be confirmed according to fluid type, working temperature, pressure, and chemical compatibility.
A resilient seated butterfly valve uses an elastic seat material to create tight sealing between the valve disc and body. This structure is commonly used in water-based systems because it provides dependable shut-off performance and simple maintenance.
The pressure rating of a butterfly valve must match the system design pressure and applicable project standard. Before procurement, engineers should confirm working pressure, test pressure, flange standard, groove standard, temperature range, and certification scope.
Pressure Rating | Typical Application |
|---|---|
PN10 | General water supply, HVAC, and low to medium-pressure building systems. |
PN16 | Fire protection, water supply, and higher-pressure building service systems. |
Class 150 | Projects using ANSI/ASME flange standards. |
Fire protection pressure ratings | Used for approved fire protection models depending on size, type, and certification scope. |
A PN16 butterfly valve is often selected when the pipeline requires a higher pressure rating than PN10. For export projects, buyers should confirm whether the piping system follows EN, ISO, ANSI, ASME, AWWA, or other local standards.
Certification is especially important for fire protection systems. A UL/FM butterfly valve is often required when the project specification, consultant, contractor, or local authority requires approved fire protection products.
For a certified fire protection model, buyers should confirm the product model, size range, connection type, pressure rating, UL listing scope, FM approval scope, product marking, and applicable project standard. Not every size, pressure, or connection type is automatically covered by the same approval, so the exact certificate scope should be checked before placing an order.
Maitolead’s valve solutions support project requirements for fire protection and water systems. Available product configurations may include ductile iron body, epoxy coating, EPDM/NBR seat options, grooved or flanged connections, and certification support depending on the selected model.
A fire protection butterfly valve is used to control water flow in sprinkler systems, fire pump rooms, risers, and main pipeline sections. Key requirements usually include reliable sealing, clear open/close indication, fast operation, and UL/FM approval when required.
Grooved-end designs are especially popular in fire protection systems because they allow fast installation with couplings and simplify maintenance during inspection or system modification.
In HVAC systems, a butterfly valve is used for chilled water, heating water, condenser water, and building circulation pipelines. Its compact structure makes it suitable for mechanical rooms, ceiling spaces, and pump stations where installation space is limited.
For larger diameters, gear operation can help reduce operating torque and improve manual control. This makes the valve easier to operate in medium and large-scale HVAC projects.
In water supply systems, a butterfly valve is used for isolation, flow control, and pipeline maintenance. Important selection factors include ductile iron body, EPDM seat, PN10 or PN16 pressure rating, suitable coating, and the correct connection type.
A ductile iron body with EPDM seat is a common choice for clean water supply projects because it provides reliable sealing and practical durability for water-based service.
In water treatment projects, a butterfly valve can be installed in intake lines, filtration systems, discharge pipelines, and process water systems. Engineers should confirm fluid quality, solids content, chemical exposure, working pressure, installation space, and maintenance access before selection.
If the medium contains abrasive particles, heavy solids, or high-viscosity fluid, the valve type and seat material should be evaluated carefully to avoid premature wear or sealing problems.
A correct selection process helps reduce leakage risk, improve installation efficiency, and ensure that the valve matches the actual working condition.
Selection Factor | What to Check |
|---|---|
Application | Fire protection, HVAC, water supply, water treatment, or industrial use. |
Connection type | Wafer, lug, flanged, or grooved connection. |
Body material | Ductile iron or other material specified by the project. |
Seat material | EPDM, NBR, or other material based on medium compatibility. |
Pressure rating | PN10, PN16, Class 150, or approved fire protection pressure rating. |
Operation type | Handle, gear operator, signal gearbox, electric actuator, or pneumatic actuator. |
Standard | EN, ISO, ANSI, ASME, AWWA, or project-specific requirement. |
Certification | UL, FM, ISO, or other required certificate. |
Working medium | Water, air, wastewater, mild industrial fluid, or other media. |
As a butterfly valve manufacturer China, Maitolead provides valve solutions for fire protection, HVAC, water supply, water treatment, and other piping systems. The product range is designed around practical installation needs, international project requirements, and long-term pipeline performance.
Maitolead supplies different butterfly valve options for different project needs, including fire protection, grooved, wafer, lug, flanged, and gear-operated designs. These options help match various connection methods, installation environments, and project specifications.
Common configurations include ductile iron body, EPDM seat, NBR seat, stainless steel shaft options depending on model, and protective coating for water-based systems. These features make the products suitable for fire protection, HVAC, and water supply applications.
Maitolead supports common project pressure requirements, including PN10, PN16, Class 150, and fire protection pressure ratings depending on the approved model. For international projects, the pressure rating should be selected according to system design, project standard, and certification documents.
For fire protection systems, certification is a key purchasing factor. Maitolead provides UL/FM-related valve solutions and ISO quality management support. For approved fire protection models, customers should confirm model, size, pressure rating, connection type, and certificate scope before placing an order.
Maitolead butterfly valve solutions can be used in fire protection systems, HVAC systems, water supply systems, water treatment projects, building service pipelines, and municipal pipeline networks.
A butterfly valve offers clear advantages for modern piping systems: compact design, lightweight structure, fast operation, reliable sealing, flexible connection types, and cost-effective installation. It is widely used in fire protection, HVAC, water supply, and water treatment projects.
However, the best choice depends on more than the basic valve structure. Buyers should evaluate product type, body material, seat material, pressure rating, connection standard, working medium, operation method, and certification requirements.
For projects requiring reliable flow control, Maitolead offers practical butterfly valve solutions with ductile iron body options, EPDM/NBR seat materials, PN10/PN16/Class 150 pressure ratings, and UL/FM/ISO-related support. These products help contractors, distributors, and engineering buyers select suitable valves for fire protection, HVAC, and water supply applications.
A butterfly valve is used to open, close, or regulate flow in a piping system. It is commonly applied in fire protection, HVAC, water supply, water treatment, and industrial pipelines.
The main advantage is its compact and lightweight structure. It requires less installation space, operates quickly with a 90-degree turn, and is easier to maintain than many traditional valve designs.
A wafer design is installed between two flanges and is compact and economical. A lug design has threaded lugs around the body, allowing easier pipeline disassembly and maintenance on one side of the system.
A grooved design is commonly used in fire protection, HVAC, and building water supply systems. Its grooved connection allows fast installation with couplings and simplifies maintenance.
A ductile iron body provides good strength, impact resistance, and cost efficiency. It is suitable for fire protection, HVAC, and water supply systems where reliable pressure-bearing performance is required.
EPDM is commonly used for water, HVAC, and fire protection systems. NBR is more suitable for certain media requiring better oil resistance. The final choice depends on the working medium, temperature, pressure, and project requirements.
PN16 refers to a nominal pressure rating of 16 bar. It is commonly used in fire protection, water supply, and building service systems that require higher pressure performance than PN10.
For many fire protection projects, UL/FM certification may be required by the project specification, consultant, contractor, or local authority. Buyers should confirm the exact model, size, pressure rating, and connection type covered by the certificate before procurement.
