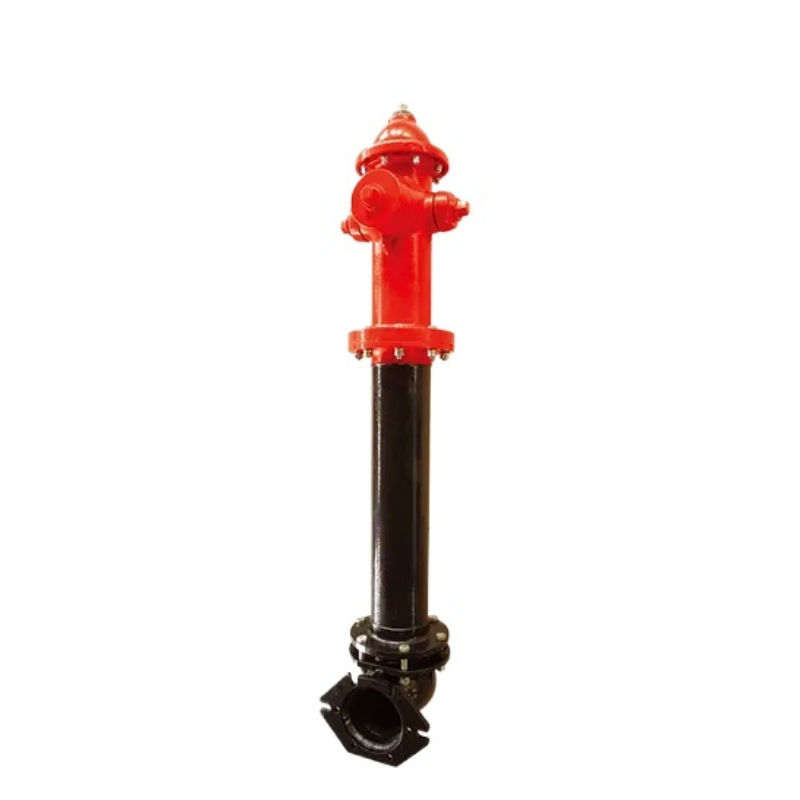

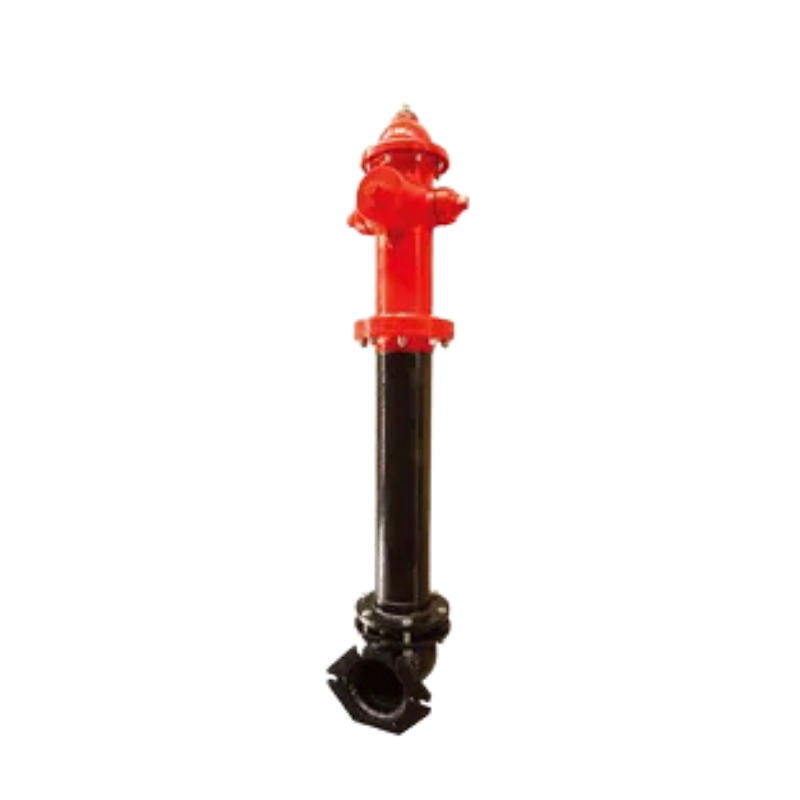

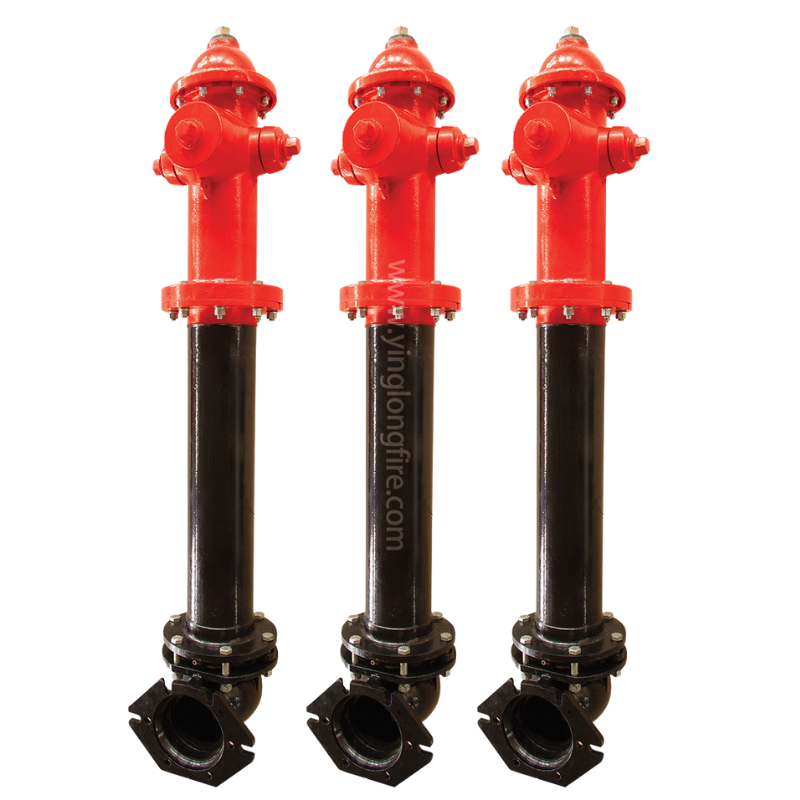

Dry Barrel Fire Hydrant

Overview

The Fire Hydrant is a high-performance water supply device designed for municipal and industrial fire protection systems. Manufactured in accordance with AWWA standards and certified by UL and FM, it provides reliable, rapid access to firefighting water during emergency situations.

With a robust structure, standardized outlet threads, and corrosion-resistant coating, the hydrant is suitable for long-term outdoor installation under demanding environmental conditions.

Product Description

This fire hydrant is designed in accordance with AWWA C502 and rated for a nominal pressure of 250 PSI. It features a 6" (DN150) inlet flange and a main valve size of 5-1/4", ensuring high flow capacity for firefighting operations.

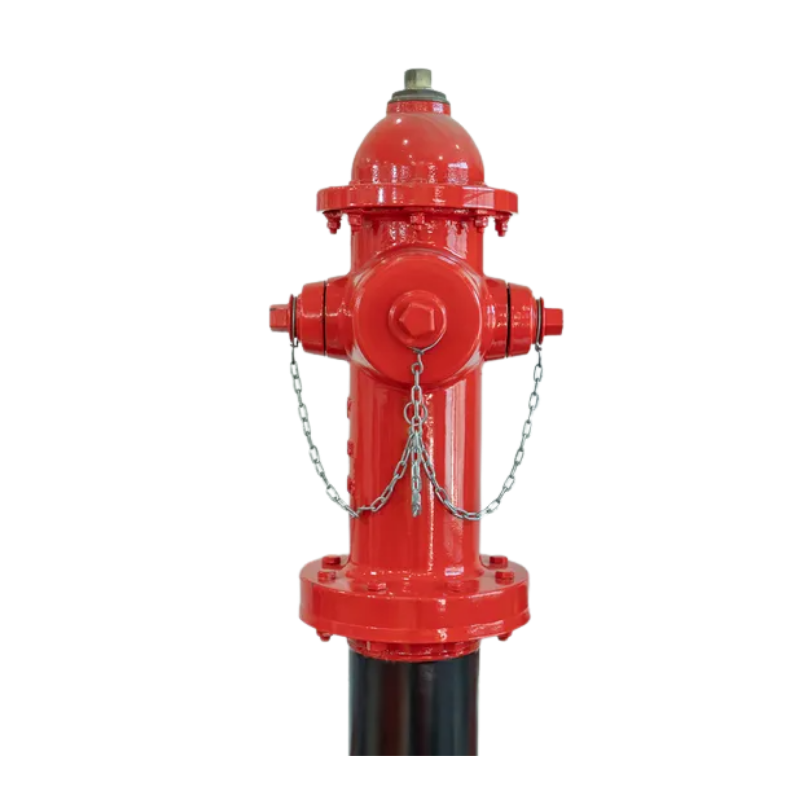

The hydrant is equipped with one pumper nozzle and two hose nozzles, offering flexibility for different firefighting requirements. Multiple connection options are available, including mechanical joint and flanged joint configurations, making the hydrant compatible with various pipeline systems.

Each hydrant is supplied with a dedicated hydrant wrench to facilitate operation.

Technical Features

Features

• High Pressure Rating
  Nominal pressure of 250 PSI ensures reliable performance during firefighting operations.

• Standardized Design
  Designed and manufactured in accordance with AWWA C502 for compatibility with municipal fire systems.

• Multiple Outlet Configurations

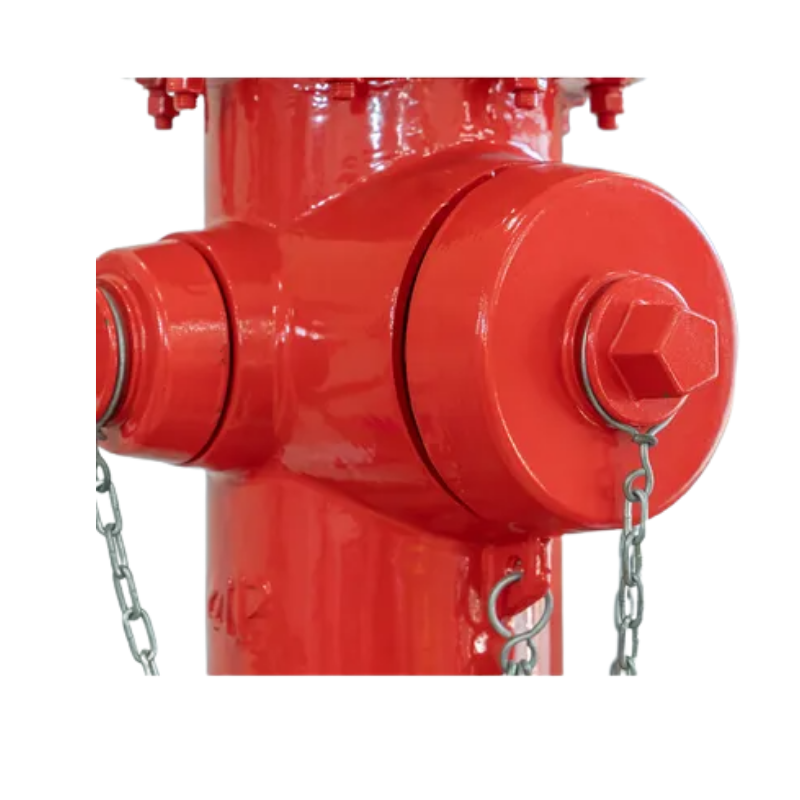

• One pumper nozzle with 4.5" NH thread

• Two hose nozzles with 2.5" NH threads
  Other thread types are available upon request.

• Flexible Connection Options

• Mechanical joint connection per AWWA/ANSI C153/A21.53

• Flanged connection per ASME B16.5 Class 150 or DIN PN16

• Durable Protective Coating
  Red polyurethane paint with bitumen black coating provides excellent corrosion resistance; custom coatings available.

• Ease of Operation
  Supplied with a hydrant wrench for convenient opening and closing.

• Certified Performance
  UL 246 listed and FM approved, ensuring compliance with international fire protection standards.

Application

• This fire hydrant is widely used in fire protection water supply systems, including:

• Municipal fire protection networks

• Industrial facilities and plants

• Commercial complexes

• Residential communities

• Airports, ports, and transportation hubs

• Public infrastructure and utility systems

Faq

Q1: What standards does this fire hydrant comply with?

It is designed according to AWWA C502 and certified by UL 246 and FM.

Q2: What are the inlet and outlet configurations?

The hydrant features a 6" (DN150) inlet and includes one 4.5" NH pumper nozzle and two 2.5" NH hose nozzles. Other thread types are available upon request.

Q3: What connection types are available?

Mechanical joint connections and flanged connections (ANSI Class 150 or DIN PN16) are available.

Q4: How should the hydrant be operated?

The hydrant should be operated only in fully open or fully closed positions. Flow control should be managed using valves installed at the nozzle outlets.

Q5: Is the hydrant suitable for outdoor installation?

Yes. The corrosion-resistant coating and robust construction make it suitable for long-term outdoor use.

Q6: What maintenance checks are recommended?

After installation and testing, the hydrant should be fully flushed before being placed into service. Proper drainage should be verified before reinstalling nozzle caps.
