Product Overview

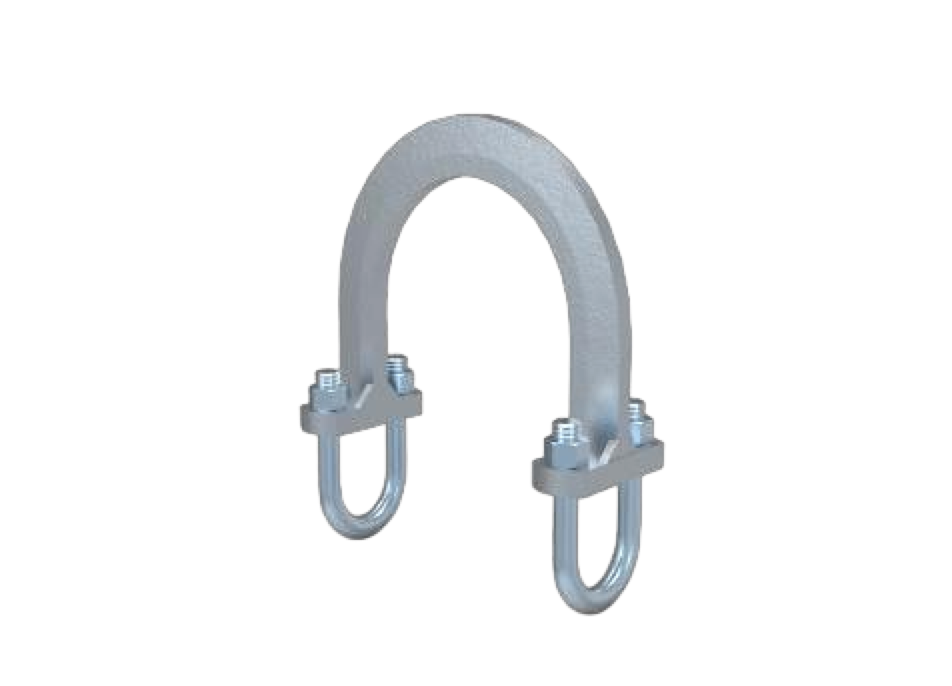

A U Quick Lateral Bracing Clamp is a specialized seismic bracing accessory used to restrain pipes against horizontal movement caused by vibration, sway, or earthquake-related forces. It is typically installed as part of a lateral sway brace assembly in sprinkler piping and other suspended pipe systems. This type of clamp is widely used in commercial, industrial, and public building projects where seismic restraint is required for piping safety.
With ductile iron construction, strong structural performance, and an electro-galvanized finish, the clamp offers durability and reliable installation performance. It is suitable for use in fire protection systems, HVAC piping, mechanical rooms, and industrial pipe support applications. In modern building service systems, this type of product is an essential part of a complete seismic restraint solution.
| Parameter | Specification |
|---|---|
| Product Name | U Quick Lateral Bracing Clamp |
| Product Type | Seismic Sway Bracing Component |
| Main Function | Designed for bracing pipe against sway and seismic disturbance |
| Application | Fire sprinkler systems, suspended piping, seismic restraint systems |
| Suitable Pipe Standards | Sch 10, Sch 40, GB/T 3091, JIS G3454 |
| Pipe Size | 1-1/2"–4" or 8" |
| Material | Ductile Iron QT450 |
| Surface Finish | Electro-galvanized |
| Approval | UL & CE approved |
| Installation Position | Pipe attachment in lateral sway bracing assembly |
| Typical Use | Commercial, industrial, and fire protection piping systems |
 |  |  |
Fire sprinkler piping systems
HVAC pipe support systems
Mechanical piping systems
Plumbing installations
Commercial and industrial buildings requiring seismic restraint

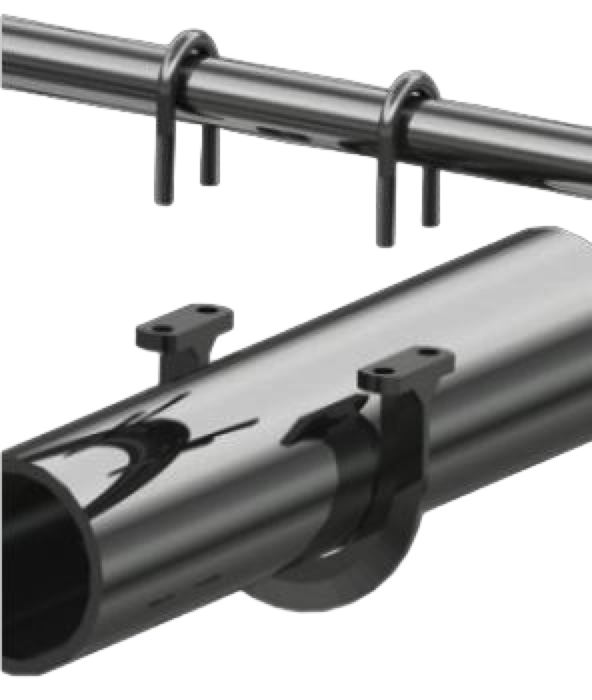

It is used to brace pipe against sway and seismic disturbance. It serves as a pipe attachment component in a lateral seismic bracing assembly and is commonly applied in fire sprinkler and suspended piping systems.
According to the product catalog, it is made from ductile iron QT450, which provides strong mechanical performance for structural pipe support applications.
It is suitable for Sch 10, Sch 40, GB/T 3091, and JIS G3454 pipes, making it compatible with several commonly used piping standards in international projects.
The product uses an electro-galvanized surface finish, which helps improve corrosion resistance for indoor and general building service environments.

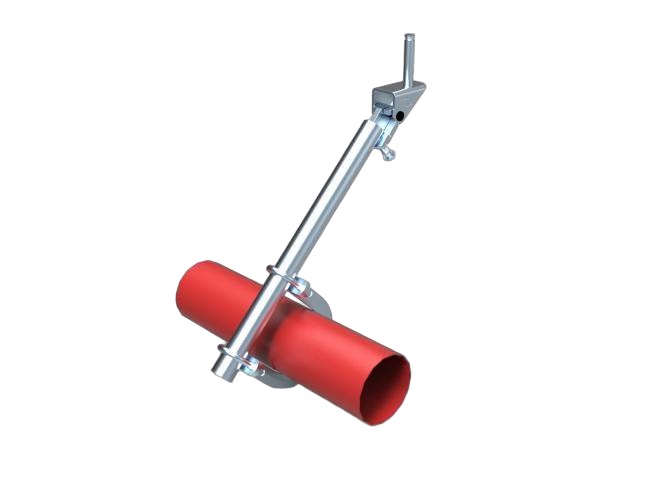

Yes. It is commonly used in fire sprinkler seismic sway bracing systems, where the clamp connects the service pipe to the brace assembly to help resist lateral movement.
It is widely used in fire protection, HVAC, mechanical piping, industrial facilities, commercial buildings, and other applications requiring seismic restraint.
Yes. This type of clamp is specifically designed to help restrain pipe movement under sway and seismic conditions when installed as part of a complete bracing system.
A lateral bracing clamp helps transfer force from the pipe to the brace assembly, reducing unwanted pipe movement and improving the overall stability of the suspended piping system.
