What is the method of HDPE coupling?

When I use HDPE pipes, I always pick the best HDPE coupling method. I know that heat fusion, like butt fusion, electrofusion, and socket fusion, makes strong joints for most jobs. Sometimes, I use mechanical coupling choices like compression, restrained, grooved, flange, or transition fittings. I do this when I need a fast or removable joint. The best joining method depends on the pressure, site access, and rules for installation. Good welding and joint quality keep every HDPE pipe system safe and strong.

Key Takeaways

• HDPE pipes connect mostly by heat fusion or mechanical couplings. The method depends on pressure, space, and what the job needs. Butt fusion makes the strongest joints. These joints do not leak and are best for big or buried pipes with high pressure. Electrofusion is good in small spaces or for fixing pipes. It uses special fittings with heating coils inside. Socket fusion is best for small pipes up to 4 inches. It is quick for short pipe runs or service lines. Mechanical couplings like compression fittings, flange adapters, and restrained couplings make fast, removable joints. Always use standards like ASTM F2620 for fusion. Use ISO 17885 for mechanical fittings to keep things safe and high quality. Quality control means cleaning pipe ends, lining them up right, using the right heat and pressure, and checking for leaks. Training and data logging help make joints stronger. They also help find problems early for long-lasting HDPE pipe systems.

HDPE Coupling Methods Overview

When I use HDPE pipes, I first pick how to join them. There are two main ways: heat fusion and mechanical couplings. Each way has its own rules and best uses. I always look at what the project needs. I check the pressure and the site before I choose.

Heat Fusion Techniques

I use heat fusion when I want the strongest joints. This group has butt fusion, electrofusion, and socket fusion. I follow rules like ASTM F2620 and F1055 to make sure the joints are good.

• Butt Fusion: I use this for straight pipes and big pipes. I line up the pipe ends and heat them with a plate. Then I press them together. This makes one strong joint. Butt welding is good for long pipes. I check the heater is 400–450°F and the pressure is 60–90 psi.

• Electrofusion: I use electrofusion in small spaces or for repairs. I use special fittings with heating coils inside. The control unit sends power to the coils. This melts the pipe and fitting together. I scrape the pipe and clamp it to keep it still. Electrofusion is good for repairs and joining pipes with different wall thicknesses.

• Socket Fusion: I use socket fusion for small pipes, up to 4 inches. I heat the pipe and fitting, then push them together. This is fast and good for short pipes.

Heat fusion gives the best pressure strength. Fusion-welded joints can take high pressure, as shown in the table:

I match the SDR and material grade to the job. If it gets hotter, the pressure rating goes down. For example, a fitting for 10 bar at 20°C may only take 6–8 bar at 40°C. I use fusion for most pressure pipes and important HDPE conduit runs.

Mechanical Coupling Options

Sometimes I need a joint I can take apart or put in fast. Then I use mechanical HDPE coupling options. These are compression fittings, restrained couplings, grooved couplings, flange adapters, and transition fittings. I follow rules like ISO 17885, ASTM F2880, and AWWA C906-21.

• Compression Fittings: I use these for small pipes, irrigation, or temporary lines. They are easy to put on and take off. I make sure the fitting matches the pipe size and SDR.

• Restrained Couplings: I use these when I need more pull-out strength. Products like Victaulic Style 905 are good for plant skids and quick shutdowns. They grip the pipe tight.

• Grooved Couplings: I use HDPE grooved coupling systems for fast work, especially in plants. They let me make changes and fix things easily.

• Flange Adapters: I use flange adapters to connect HDPE pipes to metal pipes or valves. I always tighten the bolts right to stop leaks.

• Transition Fittings: I use these to join HDPE to steel or other pipes. Factory-made transitions save time and lower risk.

Mechanical couplings are best for joints I can take apart, for repairs, or for joining different pipes. I always check the pressure and SDR for each fitting. Mechanical joints usually have lower pressure ratings than fusion-welded joints. I use them where the pressure is lower or the joint needs to come apart later.

Application Scenarios

I always pick the HDPE coupling method that fits the job. Here is how I choose:

• For buried pressure pipes and long runs, I use butt fusion. This gives the strongest, leak-free joints.

• For repairs, tie-ins, or small spaces, I use electrofusion. It works when I cannot use big fusion machines.

• For small pipes or short runs, I use socket fusion or compression fittings.

• For plant skids, joining to steel, or places where I need to remove the joint, I use mechanical couplings like flanges or restrained couplings.

• For HDPE conduit, I use heat fusion or mechanical couplings, depending on what is needed.

I remember the order: butt fusion is strongest, then electrofusion, then mechanical couplings. I check the rules for each way, like ASTM F2620 for fusion and ISO 17885 for mechanical fittings. Good welding and joint quality keep every HDPE pipe joint safe and strong.

How to Join HDPE Pipes with Heat Fusion

Joining HDPE pipes with heat fusion makes strong, leak-free connections. These joints can last for many years. I always follow rules like ASTM F2620 and F1055. This helps every joint meet top quality. Here are the main fusion methods I use: butt fusion, electrofusion, and socket fusion.

Butt Fusion

Butt fusion is what I use for most straight pipes and big pipes. This way gives me a smooth, strong joint. The joint is as strong as the pipe.

Process Steps

Here is how I do butt fusion:

1. I cut and clean the pipe ends. They must be flat and have no dirt or oil.

2. I put the pipes in clamps. This keeps them straight.

3. I heat both ends with a special plate. The plate is set between 400–450°F.

4. I take away the heater. I press the melted ends together with steady pressure.

5. I hold the pipes still and keep the pressure on. I let the joint cool without moving it.

6. I look at the joint. I check the bead and make sure it is lined up before I take off the clamps.

Tip: For bigger pipes, I use a data logger. It records the heater temperature, pressure, and time for each weld.

Key Parameters

I watch these things during butt fusion:

I never skip these checks. Good control of heat, pressure, and cooling makes the joint strong. I always keep the joint clamped until it is cool.

Electrofusion

If I work in a small space or need to fix a pipe, I use electrofusion. This way lets me join HDPE pipes without big machines. Electrofusion uses special fittings with heating wires inside.

Fitting Types

I pick from different electrofusion fittings. These include couplers, tapping tees, and saddles. Each fitting has wires inside. When I connect them to a control unit, the wires get hot. The control unit reads a barcode on the fitting. It sets the right fusion time.

Scraping and Clamping

First, I scrape the pipe surface. This removes the old layer. I use a scraper, not sandpaper, to get to clean HDPE. I mark how deep the pipe goes into the fitting and line it up.

I clamp the pipes tight so they do not move. Then I connect the control unit and start the fusion. The wires melt the pipe and fitting together. I keep the joint clamped while it heats and cools. When it is cool, I take off the clamps and check the weld.

Note: I always check the fitting’s markers to see if fusion is done. I keep records of each fusion cycle with a data logger.

Socket Fusion

Socket fusion is what I use for small pipes, up to 4 inches. This way is fast and good for short pipes and service lines.

Small Diameter Use

I use socket fusion when butt fusion will not work. It is good for homes, irrigation, and small jobs. The joint is strong and does not leak if done right.

Tool Requirements

I use a special socket fusion tool. It heats the outside of the pipe and the inside of the fitting at the same time. The heater gets to about 490–510°F. When both parts are hot, I push them together and hold them until cool.

I always make sure my tools are clean and set right. Training is important for good results.

Fusion Quality and Operator Qualification

I know training is very important. I make sure I am trained and certified to do fusion welding. For big jobs, I use a data logger (ASTM F3124) to record each weld. This gives me a record and helps me find problems early.

By following these steps, I can join HDPE pipes the right way. No matter which fusion method I use, I know my joints will be strong and last a long time.

Mechanical HDPE Coupling Techniques

Compression Fittings

When I want to join hdpe pipes fast, I use compression fittings. These work best for small pipes, up to 2 inches. I use them for service lines, irrigation, and temporary hdpe conduit runs. The best part is I do not need special tools or training. I slide the pipe ends into the fitting and tighten the nuts. This makes a tight, leak-proof seal.

Here is a table that shows the main types of mechanical hdpe couplings and their features:

I always make sure the fitting matches the pipe size and SDR. For high pressure, I sometimes add a stiffener so the pipe does not pull out. Compression fittings are good for quick repairs or temporary connections.

Tip: I use compression fittings for hdpe conduit in utility projects when I do not want to use heat fusion equipment.

Restrained Couplings

If I need stronger joints, I use restrained couplings. These have grip rings or teeth inside. They bite into the pipe and keep it from moving or coming apart. I use products like Victaulic Style 905 for plant skids, fast shutdowns, or joining pipes with different sizes.

Restrained couplings work for water and gas lines. I use them when I want a joint that can be taken apart and can handle shaking or ground movement. They do not need welding or fusion, so I save time. I always follow the manufacturer's rules for SDR and pressure.

Grooved Couplings

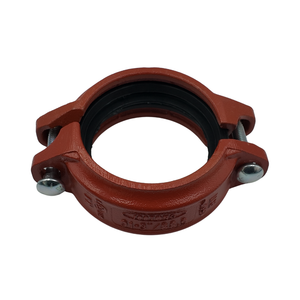

For some jobs, I use hdpe grooved couplings. These clamp around a groove cut into the pipe ends. I like them because I can change or fix pipes quickly. I use grooved couplings in plants or on skids where I need to move or replace pipe sections.

Grooved couplings make strong, flexible joints. They let the pipe move a little and handle vibration. This helps protect the hdpe pipe joint. I use them for water and low-pressure jobs. I always check the groove is the right depth and the coupling is tight.

Note: Mechanical couplings like these save me time and lower costs. I do not need special fusion tools or long cooling times. This makes them great for quick jobs or when I need to keep downtime short.

Flange Adapters

When I need to connect HDPE pipes to metal pipes, valves, or pumps, I use flange adapters. These adapters help me make strong, reliable connections between different materials. I often use them in water plants, pump stations, and industrial sites. Flange adapters work well for both pressure and non-pressure systems.

I always follow ASTM F2880 when I install flange adapters. This standard tells me how to choose the right adapter and how to bolt it down. I use a steel back-up ring with the adapter. The back-up ring matches the bolt pattern of the valve or pipe I am connecting to. I check that the bolts are tight and use the right torque. This helps prevent leaks at the joint.

Here is a simple table that shows how I use flange adapters:

Tip: I always re-check the bolts after a day. Sometimes, the gasket settles and the bolts need a little more tightening.

Flange adapters give me a demountable joint. I can take the connection apart if I need to replace a valve or change the system. This makes them very useful for maintenance and upgrades. I also use flange adapters when I install hdpe conduit in control rooms or mechanical spaces.

Transition Fittings

Sometimes, I need to join HDPE to other types of pipes, like steel or ductile iron. For these jobs, I use transition fittings. These fittings come from the factory with one end for HDPE and the other end for the different pipe material. I trust transition fittings because they give me a strong, leak-proof connection.

I use transition fittings when I build new systems or repair old ones. They help me connect hdpe conduit to steel risers or to underground metal pipes. I do not need to weld or thread the pipes. I just follow the instructions from the manufacturer. Most transition fittings use a mechanical grip or a threaded end to make the connection.

Here are some reasons why I choose transition fittings:

• They save me time on the job.

• They reduce the risk of leaks.

• They work for both pressure and non-pressure connections.

• They help me meet code requirements for mixed-material systems.

Note: I always check the pressure rating and SDR of the transition fitting. This makes sure the connection is safe and matches the rest of the system.

When I use the right fittings and follow the standards, I know my hdpe connections will last for many years. I always keep records of my work and check each joint before I finish the job.

Comparing HDPE Coupling Methods

Strength and Reliability

When I look at HDPE coupling methods, I think about strength first. Butt fusion makes the strongest joints. The weld is as strong as the pipe itself. I use butt fusion for pipes underground and for high pressure. Electrofusion also makes strong joints. It works well in small spaces or for fixing pipes. Electrofusion uses special parts and a control box to melt the pipe and fitting together. Socket fusion is good for small pipes and service lines. Mechanical couplings, like compression or HDPE Grooved Coupling, work well for low pressure or when I need to take the joint apart later.

I always watch out for things that can make joints fail. These problems include not cleaning the pipe, using the wrong repair parts, or not checking the pressure rating. I follow careful steps and use trained workers. I check the joints often and keep them in good shape to stop leaks. I use the right materials and change my welding or fusion steps if the weather is different.

Speed and Cost

Speed and cost are important for every job. Butt fusion takes longer because I have to set up the machine, line up the pipes, and let the joint cool. Electrofusion is faster for repairs and tie-ins. The special parts and control box help me work quickly, even in tight spots. Socket fusion is the fastest for small pipes. Mechanical couplings save time when I need a quick fix or a joint I can take apart. I do not need special welding tools for these. HDPE Grooved Coupling and compression fittings help me finish fast and keep work moving.

The cost depends on which way I use. Fusion welding tools cost more at first, but the joints last a long time. Mechanical couplings cost less for small jobs or repairs. I always think about speed, cost, and how long the joint will last before I pick a method.

Best Use Cases

I pick the HDPE coupling method that fits the job. Here is a simple table to help me choose:

I always check the pressure rating and SDR before I start. I use fusion for pipes under high pressure or underground. I use mechanical couplings for plant skids, transitions, or when I need to take the joint apart.

To stop problems, I do these things:

• I check the joints often.

• I clean the pipe before welding or fusion.

• I use only parts made for HDPE pipes.

• I train my team and make sure they know what to do.

• I change my steps if it is hot or cold outside.

By doing these things, I keep every HDPE Pipe Joint strong and safe. My work always meets the rules and works well.

HDPE Pipe Joint Quality Control

Quality control is a big part of every hdpe pipe installation I do. I always follow strict steps to make sure every joint is strong and leak-free. Good quality control keeps the system safe and working for years.

Inspection Standards

I start every job by checking that my team and I follow the right standards. I use ASTM F2620 for fusion procedures and ASTM F3124 for data logging. For flange joints, I follow PPI TN-38 to get the bolt torque right. I make sure everyone on my crew is trained and qualified for hdpe jointing. Before I start, I check that all tools are clean and working. I always inspect the pipe ends for dirt, oil, or damage before fusion. I keep the work area clean to avoid contamination.

Here is a quick checklist I use for inspection:

• Confirm operator qualification and training.

• Inspect pipe ends for cleanliness and roundness.

• Check alignment and clamping before fusion.

• Verify heater plate temperature and pressure settings.

• Review fusion records for each joint.

I never skip these steps. They help me catch problems early and avoid costly repairs later.

Testing Procedures

After installation, I test every hdpe pipe joint to make sure it is safe. I use several methods to check for leaks and weak spots.

1. I start with a visual inspection. I look for surface defects, misalignment, gaps, or burn marks. If I see any problems, I fix them right away.

2. I perform hydrostatic pressure testing. I fill the pipe with water and raise the pressure to 1.5 times the normal working pressure. I hold it for at least an hour and watch for leaks or drops in pressure.

3. Sometimes, I use pneumatic testing with air if water is not available. I take extra care because air testing can be dangerous.

4. For some jobs, I use ultrasonic testing. This lets me find hidden defects inside the joint without cutting the pipe.

5. On special projects, I send samples for tensile testing to check the strength of the fusion bond.

I always wear the right safety gear during testing. I keep detailed records of all tests and inspections.

Data Logging

I use data logging tools to track every fusion joint during installation. ASTM F3124 tells me what information to record. My data logger captures operator names, machine details, GPS locations, and all fusion parameters. It also stores pressure test results and keeps a backup copy of every record. This helps me trace every joint if there is ever a problem.

I use the data logger for butt fusion, electrofusion, and even manual fusion jobs. The system gives me graphs and alerts if something goes wrong during the process. I can sort and share records by job, machine, or operator. This makes it easy to prove that every hdpe joint meets the standards.

Tip: I always review my data logs at the end of each day. This helps me spot trends and fix issues before they become bigger problems.

Common Pitfalls to Avoid:

1. Poor alignment can weaken the joint. I always clamp pipes tightly and check direction before welding.

2. Too much or too little weld bead means the pressure or heat is off. I calibrate my tools and watch the bead shape.

3. Dirty pipe ends cause weak welds. I never touch milled ends and always use lint-free cloths.

4. Rushing the process or skipping steps leads to leaks. I follow every step, every time.

By following these quality control steps, I make sure every hdpe pipe installation is safe, strong, and built to last.

Selecting the Right HDPE Coupling

Decision Factors

When I pick the best HDPE coupling, I look at a few things. First, I check how much pressure the pipe will have. If the pressure is high, I use heat fusion. Butt fusion or electrofusion makes strong, leak-free joints. For pipes with less pressure or for short-term use, I use mechanical couplings. I also see how much space I have to work. If the area is small or I am fixing a pipe, I use electrofusion or mechanical fittings. These do not need big machines.

Sometimes, I need to take the joint apart later. If so, I pick flange adapters or restrained couplings. I always follow the rules for each method. For fusion, I use ASTM F2620. For mechanical fittings, I use ISO 17885. I think about cost too. Heat fusion tools cost more at first but last longer. Mechanical couplings are cheaper and faster for quick fixes.

Here is a simple chart I use to help me choose:

Tip: I always match the method to the pipe size, pressure, and where I am working.

Practical Tips

I have learned some tips to help every job go well. I train my team on the newest fusion ways. I make sure everyone follows the right steps. I keep all tools clean and set right. Before I start, I check the pipe ends. They must be round and clean. I never skip cleaning the pipe, especially for electrofusion.

New ways help me do better work and keep good records. Some new things I use are:

• Digital data logging to keep track of every weld and check quality.

• On-site fusion services with trained workers.

• Many fusion ways, like butt fusion, socket fusion, and electrofusion, for any job.

• ISO-certified shops that make custom HDPE systems and test them for leaks.

• Virtual design and 3D modeling to plan the job before I start.

For every job, I write clear rules in my project papers. For example:

Join HDPE pipe using butt fusion per ASTM F2620. Record all welds with digital data logging. Use mechanical couplings only where specified and ensure compliance with ISO 17885.

By doing these things and using the right tools, I make sure every job is safe and works well.

I pick the coupling method that fits the project. I use rules and tips from experts to make sure the joints are strong.

• I get trenches ready and choose fittings by pipe size, pressure, and where the pipes go.

• I let trained workers do the job and follow the maker’s instructions.

• I test the pressure and keep the area clean so nothing goes wrong.

For hard jobs, I read field guides and check the maker’s specs. This helps me not make mistakes and build systems that last many years.

FAQ

What is the strongest HDPE coupling method?

I always choose butt fusion for the strongest HDPE Pipe Joint. This method creates a weld as strong as the pipe itself. I use it for buried mains and high-pressure systems.

When should I use HDPE Grooved Coupling?

I use HDPE Grooved Coupling for plant skids, fast repairs, or when I need to change pipe sections quickly. This method lets me make flexible joints and handle vibration.

Can I join HDPE pipes without heat fusion?

Yes, I use mechanical HDPE coupling options like compression fittings, flange adapters, or restrained couplings. These work well for temporary, removable, or low-pressure joints.

How do I check if my HDPE Pipe Joint is good?

I inspect the weld bead, check alignment, and review data logs. I test the joint with water or air pressure. I always follow ASTM F2620 and keep records for every job.

What standards do I follow for HDPE coupling?

I use ASTM F2620 for fusion, ISO 17885 for mechanical fittings, and ASTM F2880 for flange adapters. These standards help me make safe, reliable HDPE Pipe Joints.

Can I connect HDPE to steel or PVC pipes?

I use transition fittings or flange adapters to join HDPE pipes to steel or PVC. These factory-made couplings give me a strong, leak-proof connection for mixed-material systems.

How do I avoid leaks in HDPE Pipe Joints?

I clean pipe ends, use the right fusion temperature, and clamp pipes tightly. I always follow the manufacturer's instructions and check the pressure rating for every HDPE coupling.

Is operator training important for HDPE coupling?

Yes, I make sure every worker is trained and qualified. Proper training helps me avoid mistakes and build HDPE Pipe Joints that last for years.
