Views: 0 Author: Maitolead Publish Time: 2026-04-03 Origin: www.maitoleadfitting.com
In modern construction, safety is no longer limited to the strength of walls, beams, and columns. Building service systems such as fire sprinkler pipes, HVAC ducts, cable trays, and mechanical piping also need protection, especially in areas exposed to seismic activity. This is where seismic bracing becomes essential.

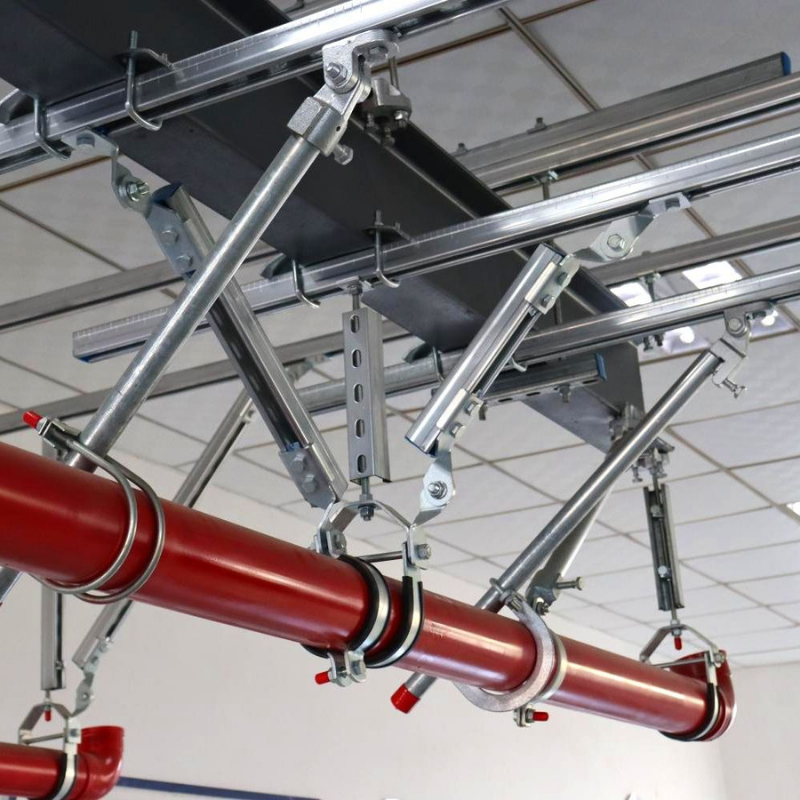

Seismic bracing is a system of brackets, clamps, channels, connectors, rods, and structural attachments used to stabilize suspended or mounted systems during seismic movement. A complete system usually includes multiple seismic sway bracing components working together to improve restraint performance, system stability, and installation reliability.
For fire protection systems, mechanical piping, and suspended utility lines, seismic bracing is not just an accessory. It is a critical part of a safe and reliable support system.
Seismic bracing is a support solution designed to help restrain non-structural systems against movement caused by earthquakes, vibration, and lateral forces. Its purpose is to control sway, reduce displacement, and help prevent failure of piping or equipment supports.
Unlike standard pipe support, which mainly carries vertical load, seismic bracing is designed to resist horizontal and dynamic forces. This is especially important in buildings where fire sprinkler systems, HVAC systems, and other service lines must remain secure during and after an earthquake.
In simple terms, standard supports hold the weight, while seismic bracing helps control the movement.
Seismic bracing is important because non-structural systems can become major sources of damage during earthquakes. Even if the main building structure remains stable, unsupported or poorly restrained pipes and support systems may shift, crack, fall, or disconnect.
This can lead to several serious problems:
damage to fire sprinkler piping
water leakage and flooding
failure of HVAC and mechanical systems
interruption of building operations
higher repair costs
increased safety risks for occupants
For fire protection systems in particular, the failure of sprinkler piping during a seismic event can create a critical safety issue. A properly designed seismic bracing system helps reduce these risks and improves the overall resilience of the building.
Seismic bracing is widely used in:
fire sprinkler systems
HVAC piping systems
mechanical pipe support systems
cable tray support systems
suspended utility systems
industrial piping installations
commercial and high-rise buildings
hospitals, airports, data centers, and infrastructure projects
Any installation with suspended or exposed service systems may require seismic restraint depending on project specifications and local code requirements.
A complete seismic bracing system is made up of several support and connection components. Each part has its own role in creating a stable and reliable restraint assembly.

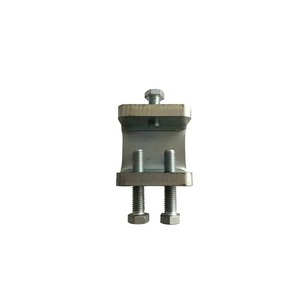

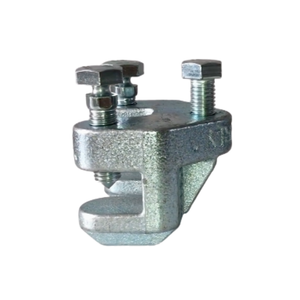

These connect the bracing system to the building structure. They are used to transfer seismic force from the service system to the supporting structure.

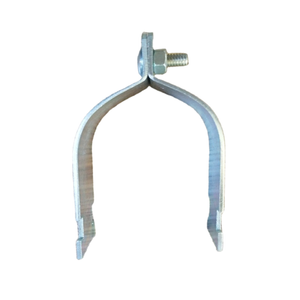

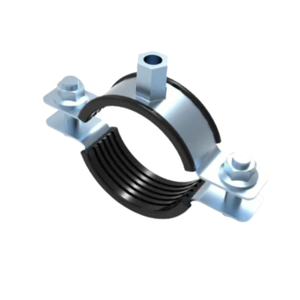

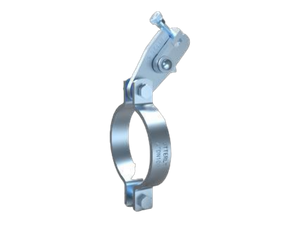

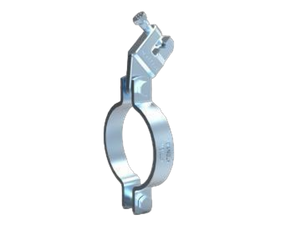

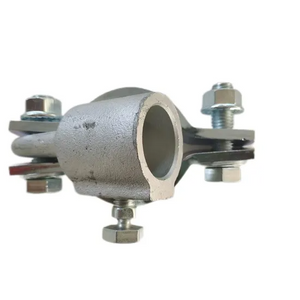

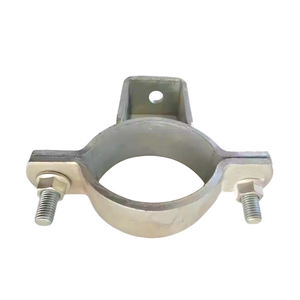

Pipe clamps secure the pipe itself and help connect the pipe to the brace assembly. Choosing reliable pipe clamps for seismic support is important for maintaining pipe stability during sway or earthquake-related movement.

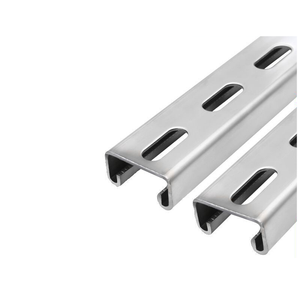

Strut channels form the framework for many support and restraint systems. They are widely used because they are adjustable, modular, and easy to install. In many modern projects, strut channel systems are used to build flexible frames for piping, equipment, and seismic restraint assemblies.

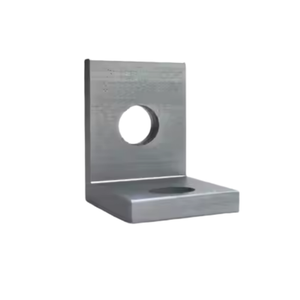

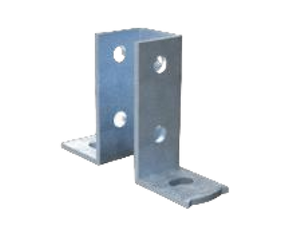

These are used to create frame connections, corner joints, and customized support assemblies. Different angle connectors for strut channels can help create strong and stable metal frames in seismic and pipe support systems.

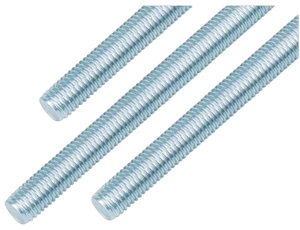

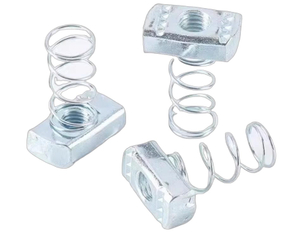

Threaded rods, spring nuts, washers, and other fasteners are used to connect and adjust support components. High-quality threaded rods for support systems are especially important in suspended installations where strength and adjustment flexibility are required.
Many buyers and project engineers confuse ordinary pipe support with seismic restraint. The difference is important.
Item | Standard Pipe Support | Seismic Bracing |
|---|---|---|
Main Purpose | Carry vertical load | Resist lateral and seismic movement |
Typical Function | Hold the pipe in position | Prevent sway, displacement, or failure |
Load Type | Static load | Dynamic and lateral load |
Common Use | General pipe hanging | Fire protection, HVAC, seismic zones |
System Requirement | Basic support | Specialized restraint solution |
This is why projects in seismic areas often require more than just hangers and supports. They need restraint systems specifically designed for movement control.
A properly selected seismic bracing system offers several advantages:
It helps reduce the risk of pipe movement, collapse, or disconnection during seismic events.
Important systems such as fire protection and mechanical piping are more likely to remain functional.
By limiting damage during earthquakes, seismic bracing helps lower repair expenses and downtime.
Using the right bracing components helps meet project requirements and industry expectations.
It improves the stability of suspended systems and helps distribute force more effectively.
When selecting seismic bracing products, buyers and engineers should usually consider:
pipe size range
material requirements
surface finish
indoor or outdoor environment
type of support structure
load requirements
project specifications
compatibility with other support components

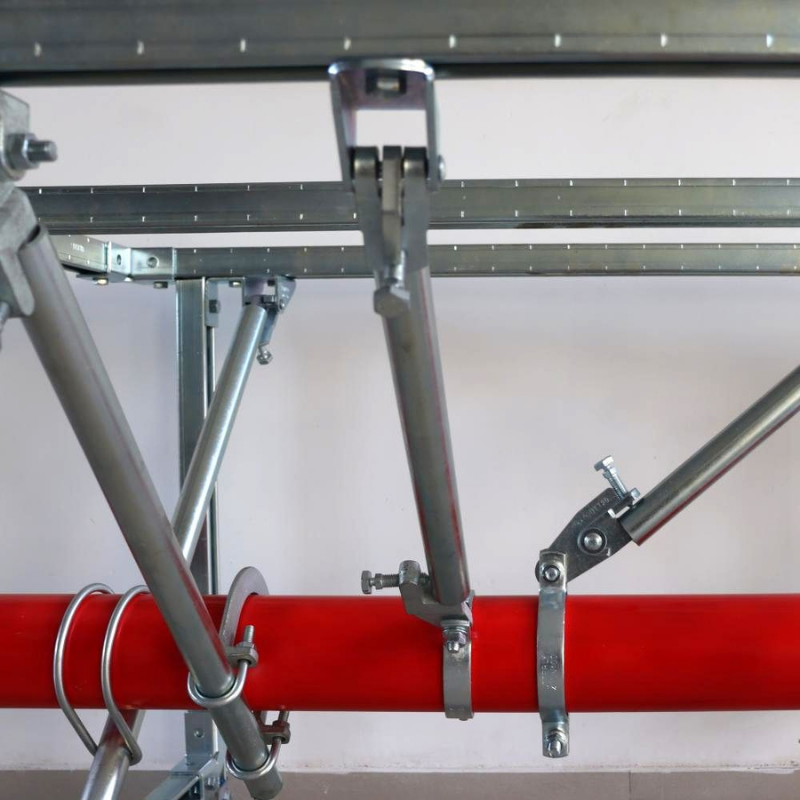

For example, a complete system may include structural attachments, beam adapters, sway bracing fittings, pipe clamps, strut channels, threaded rods, and fastening accessories. Choosing compatible components helps improve installation efficiency and overall system performance.
In fire protection systems, seismic bracing is especially important because sprinkler piping must remain secure and operational. In HVAC and mechanical systems, bracing helps protect suspended service lines from unwanted movement and structural stress.
This is why many contractors and project buyers look for complete support solutions instead of single products. A strong product range that includes pipe clamps for seismic support, strut channel systems, angle connectors for strut channels, threaded rods for support systems, and spring nuts for strut channels is often more valuable than buying isolated parts from different suppliers.
Seismic bracing is an essential part of modern building safety. It helps protect non-structural systems, improves the reliability of fire protection and mechanical installations, and reduces the risk of costly damage during seismic events.
For contractors, distributors, and project engineers, understanding seismic bracing is the first step toward choosing a safer and more complete support solution. Whether the application is fire sprinkler piping, HVAC systems, or industrial pipe support, the right seismic sway bracing components can make a significant difference in system stability and long-term performance.
Looking for reliable seismic bracing components for fire protection and MEP systems? Contact us for product details and project support.
