Ever wonder why two pipes with the same size still won’t connect cleanly? That surprise often comes down to the pipe end. Choose the wrong end type, and a “simple” install can turn into a leak or a delay.
Pipe end types affect how systems seal, how strong joints become, and how fast crews can build. They also influence safety, repair time, and overall project cost. When downtime is expensive, these small details stop being small.
In this post, you’ll learn the most common end pipe types used in real specifications. We’ll cover Plain End (PE), Beveled End (BE), Threaded End (TE), and Grooved ends, plus when each one makes sense. You’ll also get a clear way to identify, compare, select, and specify pipe end types with confidence.
People mix up pipe ends all the time. It happens on job sites and in purchase orders. Let’s clear up the language, fast.
A pipe end finish describes how the pipe end gets prepared. Think square cut, bevel, threads, or a machined groove. It tells you what the end “looks like” and how it can mate to other parts.
A connection method describes how two parts get joined in the field. Think butt weld, socket weld, threaded joint, bolted flange, or mechanical coupling. One finish can support several connection methods, depending on the system design.
| Term | What it describes | Common examples | What you verify |
|---|---|---|---|
| Pipe end finish | End preparation on the pipe | PE, BE, TE, grooved | Geometry, threads, groove, end condition |
| Connection method | Joint approach during assembly | Butt weld, socket weld, threaded, coupling | Compatibility, rating, install procedure |
PE often supports socket weld joints or slip-on flange joints.
BE aligns to butt weld joints for strong, permanent connections.
TE supports screwed joints, fast removal, quick swaps.
Grooved supports clamp-style couplings for rapid assembly.
Pipe ends exist to match hardware. If the end finish mismatches the mating part, assembly slows down. Leaks show up. Rework follows.
| Pipe end type | Common mating parts | Typical joint style | Where teams see it |
|---|---|---|---|
| Plain End (PE) | Socket-weld fittings, slip-on flanges, adaptors | Fillet weld or bolted joint | General piping, shop spools |
| Beveled End (BE) | Butt-weld fittings, welding neck flanges | Butt weld | Process plants, higher-pressure lines |
| Threaded End (TE) | Threaded fittings, couplings, valves | Screwed joint | Small-bore utility lines, maintenance-heavy areas |
| Grooved End | Mechanical couplings, gaskets, clamps | Grooved coupling joint | HVAC rooms, fire protection runs |
Equipment tie-ins follow the same logic. Pumps, tanks, heat exchangers, skids—they all expect a specific interface. Your end finish choice either fits, or it does not.
Seamless, longitudinal welded, spiral welded. Those terms describe how the pipe body got made. They do not describe how the pipe end connects during installation.
Manufacturing method affects the pipe wall and seam location.
Pipe end type affects field assembly and joint design.
Teams can order seamless pipe, plus a beveled end. Or welded pipe, plus threads.
So we keep the categories separate. It prevents spec errors and avoids wrong-stock deliveries.
In procurement talk, a joint (or length) means one piece from the mill. It stays a “joint” no matter the exact measured length.
Double joints mean two mill joints welded together before site work. Crews use them to reduce field weld count and speed installation.
| Length term | Typical range | Practical benefit | Trade-off |
|---|---|---|---|
| SRL (Single Random Length) | 16–22 ft (4.9–6.7 m) | Easier handling, flexible logistics | More joints across long runs |
| DRL (Double Random Length) | 35–45 ft (10.7–13.7 m) | Fewer field joints, faster line progress | Harder transport and staging |
NPS gives the nominal size label. It helps everyone speak the same “size language.” It does not guarantee wall thickness.
Schedule tells the wall thickness series. Higher schedule usually means thicker wall, heavier pipe, higher pressure capability.
NPS controls fit to many fittings and flanges.
Schedule controls strength, weight, weld prep needs, thread engagement.
End prep feasibility changes as walls get thicker or thinner.
Use a spec line teams can quote and buy:
NPS 4, Sch 40, material grade, end type (each end), quantity
If NPS appears alone, people guess. They guess wrong, often.
We all want the same thing. A joint that fits fast, seals well, stays safe. Pipe ends decide a lot of that. So we’ll put the main options side by side.
| End type | Abbrev | How it connects | Typical use | Pros | Cons | Best for |
|---|---|---|---|---|---|---|
| Plain End | PE | Socket-weld joints, slip-on flanges, adaptors | General piping, shop fabrication, tie-ins | Simple prep, easy sourcing, flexible pairing | Not a direct butt-weld prep; extra prep needed for butt weld | Standard runs, projects needing adaptable ends |
| Beveled End | BE / BW | Butt weld to fittings or welding neck flanges | Process piping, higher-pressure service, larger diameters | Strong permanent joint, good integrity, smooth bore transition | Needs welding skill, QA checks, slower install vs mechanical options | Permanent high-integrity systems, pressure-critical lines |
| Threaded End | TE | Screwed into threaded fittings, couplings, valves | Small-bore utility lines, maintenance zones | No welding, quick removal, simple field tools | Leak risk under vibration, thread damage risk, limits in severe service | Small lines, frequent disassembly, low-to-moderate service |
| Grooved End | Grooved | Mechanical coupling and gasket clamp around groove | HVAC rooms, fire protection systems, retrofit work | Fast install, easy rework, good for tight schedules | Needs compatible groove + coupling system; component-rated design | Speed-first builds, systems needing quick service access |
| Threaded & Coupled | T&C | Threaded end plus pre-installed coupling | Utility distribution, fast assembly requirements | Fewer loose parts, quicker fit-up vs separate coupling | Still inherits thread limits; coupling spec control needed | Repeatable small-bore installs, standardized field assembly |
| Socket Weld End | SW | Pipe inserts into socket; fillet weld seals it | Small-bore, higher-pressure lines | Strong joint for small sizes, compact footprint | Welding required; fit-up discipline needed | Small-bore pressure service, tight piping layouts |
| Bell End | Bell | Spigot inserts into bell; gasket or solvent weld system | Plastic pipe systems, water and drainage | Quick join, fewer fittings, simple alignment | System-specific parts; not universal across materials | Water/sewer or plastic networks using bell-and-spigot designs |
| Flange One End | FOE | Flanged tie-in on one end; other end per spec | Equipment tie-ins, prefab spools, skids | Clean bolted interface, fast equipment connection | Heavier, costlier, needs bolt-up clearance | Pumps, vessels, packaged equipment connections |
Abbrev tip: “Both ends” vs “one end” markings show up in real orders. They prevent surprises during fit-up.
Spec tip: End type alone fails. Pair it with size and wall series so everyone buys the same thing.
Start from the requirement. Then pick the end type. We can treat it like a quick routing tool.
| If you need… | Pick this end type | Why it fits | Watch-outs |
|---|---|---|---|
| Maximum joint strength, permanent connection | BE / BW | Butt weld joints deliver high integrity | Welding quality control, schedule impact |
| Fast field assembly, easy changes later | Grooved | Couplings speed install and simplify rework | System compatibility, component ratings |
| Frequent disassembly for maintenance | TE or T&C | Threads support quick removal and replacement | Vibration, thread damage, sealing discipline |
| Small-bore, higher-pressure service | SW or BE | Socket weld suits small sizes; BE suits welded systems | Fit-up control, welding procedure consistency |
| Flexible pairing across connection styles | PE | It matches sockets, slip-on flanges, adaptors | Extra prep for butt welding; sealing method clarity |
| Equipment tie-in via bolt-up interface | FOE | Flange simplifies equipment connections | Space for bolts, alignment control |
Pick the row closest to your system goal. Then confirm compatibility. Fittings, flanges, couplings, equipment nozzles. They all need a matching interface.
Plain End pipe looks simple. It is simple. It also shows up everywhere. If you buy pipe in bulk, you’ll see PE on plenty of specs.
A Plain End pipe has an end cut square to the pipe axis. No bevel. No threads. No groove. It comes ready for common shop work and standard field connections.
End face: straight, 90-degree cut
No special machining on the end
Often the default option in catalogs
PE gives you flexibility. You pick the connection style based on the system. The end stays plain. The mating parts do the rest.
A slip-on flange slides over the pipe. Then welds lock it in place. It suits many general piping runs. It also keeps alignment simpler during fit-up.
Common in shop fabrication and field tie-ins
Uses fillet welds around the pipe end
Works well when crews want fast positioning
Socket-weld parts accept the pipe end into a socket. It seats inside. Then a fillet weld seals the joint. This approach shows up a lot in smaller lines.
Compact joint geometry
Good control on alignment in small sizes
Requires clean insertion and proper fit-up
Sometimes we need movement tolerance or quick assembly. Adaptors help. A common setup uses a flange adaptor plus a sealing element. It handles slight misalignment and vibration better than rigid joints.
Useful in retrofit work and maintenance zones
Common near equipment, pumps, skid tie-ins
PE appears across many industries. You’ll see it often in smaller diameters and general service piping. Teams like it since it keeps options open. They can weld it, flange it, adapt it.
General plant utilities
Building services runs
Shop spools and field fit-up pieces
Short sections cut on site for tie-ins
PE connections often rely on fillet welds. Crews use them around slip-on flanges and socket-weld parts. It keeps the joint simple and repeatable.
| PE pairing | Typical weld type | What crews focus on |
|---|---|---|
| Slip-on flange | Fillet weld | Squareness, alignment, weld size |
| Socket-weld fitting/flange | Fillet weld | Insertion depth, gap control, clean surfaces |
Fit-up detail matters. Many shops leave a small stand-off gap, often around 1/8 inch, before welding in socket-style joints. It helps manage thermal expansion during welding. It also reduces stress at the socket bottom.

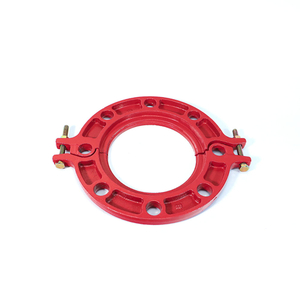

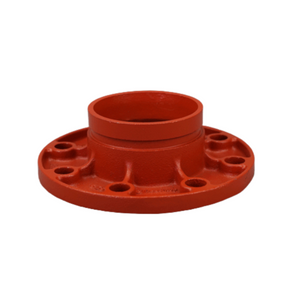

Mechanical options exist for PE too. A practical example uses a flange adaptor plus a rubber ring seal. The adaptor provides the bolt-up face. The seal handles the tightness. It fits systems needing quicker service access.
Good for maintenance-heavy areas
Useful when hot work gets restricted
Helpful near equipment connections
| Pros | Cons |
|---|---|
| Simple, common, easy to source | Not a direct butt-weld prep |
| Flexible, supports several connection styles | Joint performance depends on chosen mating hardware |
| Works well in shop fabrication and field cuts | Wrong sealing choice can cause leaks |
Ordering PE when the design expects BE. It forces extra end prep. It also slows the schedule.
Assuming “plain” means “no spec needed.” We still need size, schedule, material, end type per end.
Using the wrong sealing method. Some joints need gaskets, some need sealant, some need weld integrity.
Ignoring wall thickness limits. Socket-weld and flange choices change as schedule changes.
Yes, it can. PE just means the end arrives square-cut. If the job needs a butt weld, the pipe end can get beveled later. Shops do it often. They cut the bevel to match the weld prep standard used in the project.
When people say “serious piping,” they often mean welded piping. Beveled ends make those welds possible. They turn two pipe ends into a weld groove engineers can control.

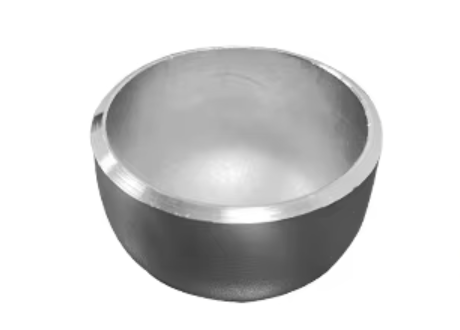

A Beveled End pipe has an angled cut on the end. It is not a square 90-degree cut. The angle creates a groove shape once two ends meet. Weld metal fills the groove. The joint becomes strong and permanent.
End face: angled, prepared for welding
Main purpose: support a consistent butt weld joint
Common in industrial and higher-duty systems
Angle matters. It controls access for the welding arc. It also controls penetration and defect risk. Most projects stick to a narrow angle band for reliability.
| Geometry item | Typical value teams see | Why it matters |
|---|---|---|
| Bevel angle | 30–37.5° | Balances weld access and groove volume |
| Common shop target | 30° (+5° / −0°) | Standardizable prep for repeatable fit-up |
| Root face (land) | ~1.6 mm (±0.8 mm) | Helps control burn-through and penetration |
People also ask, “Is 37.5° the standard?” Many specs treat it as a widely used international default. Some shops still run 30° targets for consistency. Both appear in real projects. Your WPS and piping spec decide the final call.
Two beveled ends face each other. They form a V-shaped groove. Weld passes fill it, layer by layer. The fit-up stage decides a lot of the final quality.
Fit-up gap: many crews work around 3–4 mm as a practical starting point
Alignment:
Cleanliness:
The gap matters since it affects penetration. Too tight, lack of fusion risk. Too wide, heat input climbs and distortion increases.
You’ll see BE described using other words. They usually point to the same concept.
Weld end
Butt weld end
BW end (common shorthand)
BE shows up when joint integrity matters more than speed. Larger diameters often push teams toward butt welding. Higher pressure service does too. It also supports smoother internal flow for many process systems.
Process plants and refineries
High-pressure steam and critical utilities
Large-bore piping runs and headers
Prefab spools needing consistent weld prep
| Pros | Cons |
|---|---|
| High joint strength and reliability | Welding labor, inspection effort, longer install time |
| Good fit for higher pressure, larger diameters | Requires qualified procedures and skilled welders |
| Supports smooth bore transitions in many systems | Prep accuracy matters; poor prep drives defects |
BE looks simple. QA still checks several items. It keeps welds repeatable across crews and shifts.
Bevel angle:
Root face:
Hi-lo (internal misalignment):
End squareness and ovality:
Surface condition:
WPS compliance:
Specs often reference a recognized standard for weld-end preparation. A common one is ASME B16.25 for buttwelding end details. It helps align vendors, shops, inspectors on the same geometry expectations.
Add one simple diagram or photo. It makes the concept click fast.
Show a welding neck flange meeting a beveled end pipe
Label bevel angle, root face, and fit-up gap
Highlight the butt weld bead profile after completion
Threaded ends feel convenient. They are. You screw parts together, no welding crew needed. It also means small details can make or break the seal.
A Threaded End pipe has screw threads cut on the pipe end. It mates to a threaded fitting, coupling, or valve. One side carries the external thread. The other part carries the internal thread. They tighten together and create a joint.
Male thread: on the pipe end or nipple end
Female thread: inside a fitting, coupling, or valve port
Typical use case: quick install, easy removal later
TE shows up most in small-bore piping. As diameter grows, threads become less practical. As pressure rises, welded joints often take over. Many teams treat TE as a “small line” tool. They reserve BE butt weld joints for bigger, higher-duty systems.
Small utility branches and instrument connections
Maintenance zones needing frequent disassembly
Temporary hookups and low-to-moderate service lines
Threads need standard definitions. Without them, parts may not even start. Two labels appear often in the field.
NPT — a common tapered pipe thread form used in many industrial systems
ASME B1.1 — unified inch screw thread definitions, general thread geometry language
You may also see ASME B1.20.1 mentioned in specs and vendor catalogs when teams call out NPT details.
NPT threads seal using a taper. As you tighten, the thread flanks press together. The joint “wedges” into a tighter fit. Many references describe the taper as 3/4-inch per foot. It helps explain why torque changes sealing behavior.
Taper creates interference as the joint tightens
Seal improves as contact pressure increases
Sealant often still used to fill tiny leak paths
Thread talk sounds technical, but it’s basic shapes. If geometry mismatches, parts bind, leak, or crack. These terms come up in inspection and failure reviews.
| Term | Plain-language meaning | Why it matters |
|---|---|---|
| Pitch | Distance between threads | Wrong pitch blocks engagement |
| Thread angle | V-shape angle of the thread | Mismatch ruins contact and sealing |
| Depth | How “tall” the thread profile is | Affects strength and sealing surface |
| Crest / Root | Top and bottom of the thread | Damage here drives leaks and galling |
| Major / Minor diameter | Largest and smallest thread diameters | Controls fit and interference |
| Pitch diameter | Functional “fit” diameter | Most critical for correct engagement |
Most threaded joints tighten clockwise. That is right-hand thread behavior. Left-hand threads exist too. They tighten the opposite direction. Specs and standards define it. It prevents accidental loosening in special cases.
Right-hand: clockwise to tighten, most common
Left-hand: counterclockwise to tighten, used for niche needs
| Pros | Cons |
|---|---|
| Fast assembly, no welding crew | Leak paths exist along thread helix |
| Easy disassembly for maintenance | Sensitive to vibration and repeated cycles |
| Simple tools, common fittings | Thread damage risk during install and removal |
TE works best in lower pressure and lower temperature service. Higher loads can distort the joint. Distortion can open leak paths. It also reduces the safety margin. Many designs avoid threaded joints in services involving poisonous fluids. They also avoid it in flammable service when better joint types fit the risk profile.
Lower pressure, lower temperature use cases fit best
Vibration can loosen joints and amplify leakage risk
Hazardous fluids raise the consequence of even small leaks
Threads can gall. They can seize. It happens when metal surfaces rub under pressure and heat during tightening. Stainless steel sees it often. Once it starts, the joint may lock up. Disassembly can tear the threads. Damaged threads lose strength. They also lose sealing performance. Corrosion resistance can drop too, especially if the surface gets torn.
Galling risk rises during dry assembly and over-torque
Repeated assembly cycles increase wear and damage
Seized joints often force replacement, not repair
We can reduce risk using disciplined assembly habits. It is not fancy. It is consistent work.
Clean threads before assembly, remove grit and metal chips
Use proper sealant suited to the service, apply evenly
Lubricate where appropriate, reduce friction and galling risk
Avoid cross-threading, start by hand, keep alignment straight
Stop over-torque, use controlled tightening practice
TE can be a great choice when we keep the service realistic and the installation controlled.
Sometimes speed wins. You need a system up today, not next week. Grooved ends help teams build fast, then service faster later.

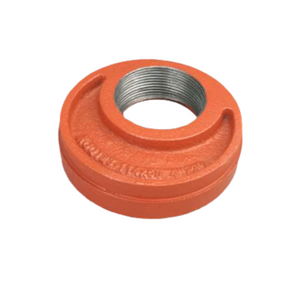

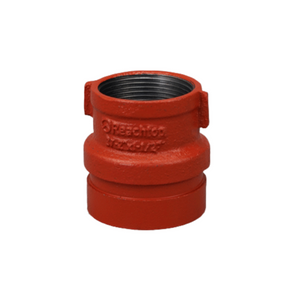

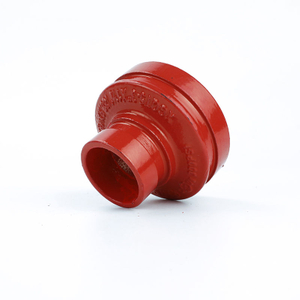

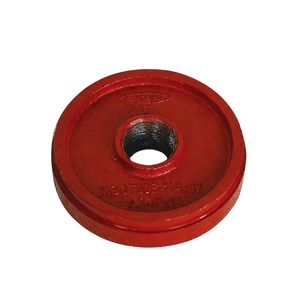

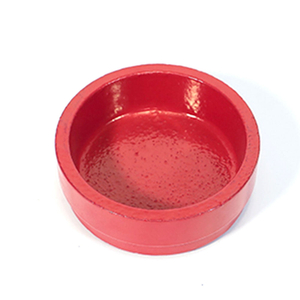

A Grooved End pipe has a machined ring groove near the pipe end. A mechanical coupling wraps around it. A gasket sits inside the coupling. When you tighten the bolts, the coupling grips the groove and compresses the gasket. The result: a sealed joint, no welding needed.
Groove: a precise channel cut or rolled into the pipe
Coupling: two housings clamp around the groove
Gasket: seals the joint as the clamp tightens
| Component | What it does | What you check |
|---|---|---|
| Groove | Provides a mechanical “lock” point | Groove dimensions, end condition |
| Coupling housing | Grips the groove, holds alignment | Model, pressure rating, bolt condition |
| Gasket | Creates the seal | Material, fit, damage, service compatibility |
Grooved systems show up in places needing fast installation and easy maintenance. You’ll see them a lot in building mechanical rooms. You’ll also see them in fire protection networks.
HVACR piping in commercial buildings

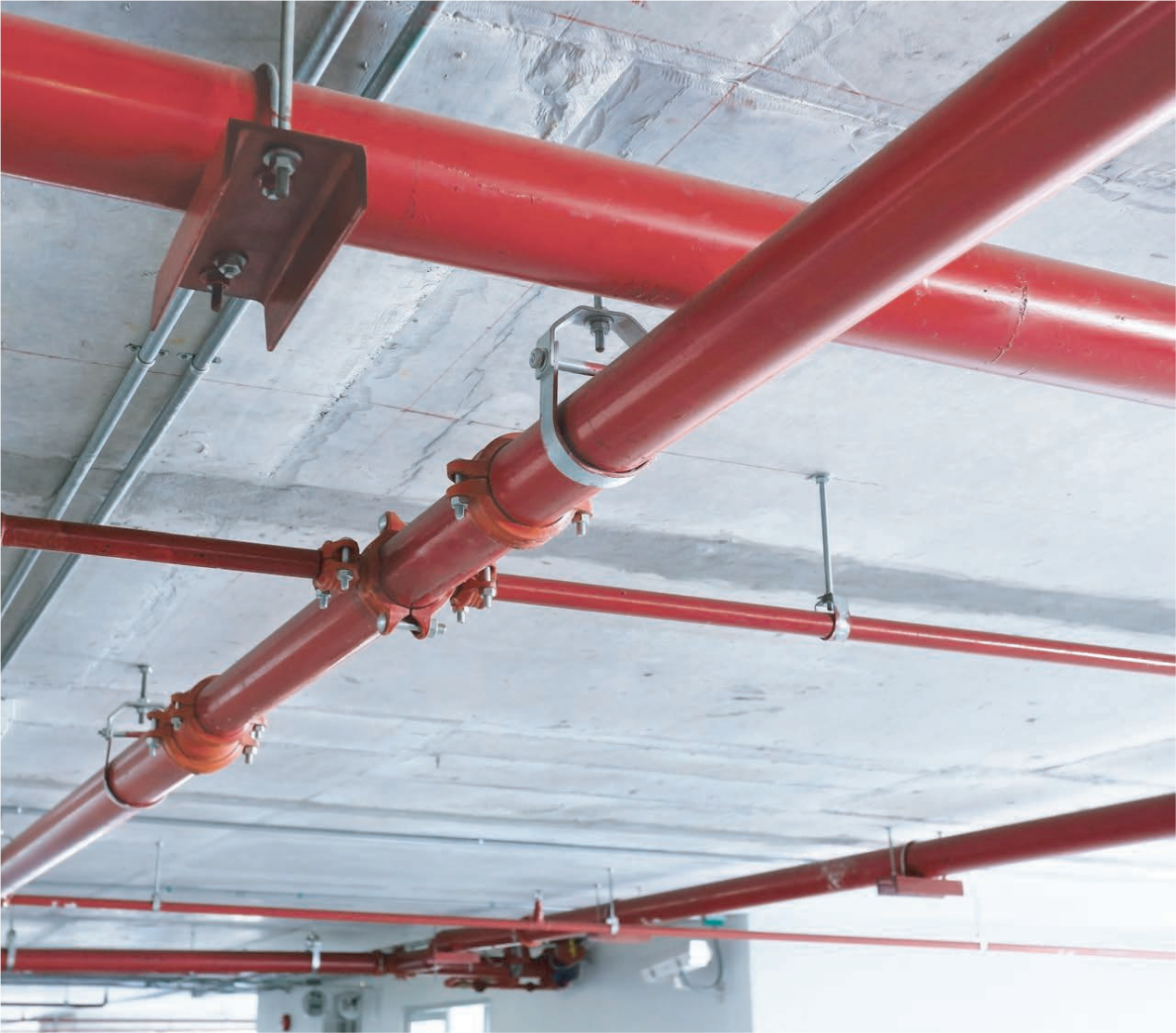

Firefighting and fire protection systems, sprinkler mains and branches
Retrofit projects, tight shutdown windows
Facilities where crews expect future changes
| Pros | Cons |
|---|---|
| Fast assembly, no hot work permits | Needs compatible groove and coupling system |
| Easy disassembly for maintenance | Component selection drives performance |
| Good for phased installs and rework | Incorrect gasket choice risks leaks |
| Reduces field welding labor | Groove quality control becomes critical |
Grooved often wins when weld labor runs short or schedule pressure climbs. It also wins in retrofit work. You can cut out a section and replace it fast. You can also avoid shutdown delays tied to welding, inspection, or rework.
Short outage windows, weekend shutdowns
Projects in occupied buildings
Sites restricting hot work
Teams planning frequent modifications
Grooved joints are “system joints.” Everything has to match. If one piece is wrong, the joint fails. So we check compatibility on three fronts.
Groove specification: correct dimensions and end condition for the coupling design
Coupling pressure rating:
Gasket material:
| Selection check | Ask this question | Why it matters |
|---|---|---|
| Groove | Is it cut or rolled to the correct spec? | Wrong geometry reduces grip, invites leakage |
| Coupling | Does its rating exceed the design conditions? | Underrated parts fail under load |
| Gasket | Does the elastomer fit the fluid and heat? | Wrong material swells, cracks, or leaks |
Grooved ends look simple on paper. In the field, they reward teams who treat them like a matched system, not a mix-and-match bin.
PE, BE, TE, grooved ends cover most jobs. Then real projects happen. We run into special end types built for speed, service, or specific systems. These options help you complete a “different types of end pipes” list. They also help you read specs without guessing.
| End type | Abbrev | Core idea | Where teams use it | Why it exists |
|---|---|---|---|---|
| Threaded & Coupled | T&C | Threaded end plus coupling already installed | Utility distribution, repetitive small-bore installs | Faster field work, fewer loose parts |
| Socket Weld End | SW | Pipe inserts into socket, then fillet welded | Small-bore higher-pressure lines | Strong joint in tight spaces |
| Bell End | Bell | Enlarged end accepts a spigot end | Plastic pipe, water and sewer | Quick joining, fewer fittings |
| Flange One End | FOE | Flange welded on one end of pipe | Equipment tie-ins, prefab spools, skids | Fast bolt-up connections |
T&C means one end arrives threaded and a coupling comes pre-attached. It reduces field steps. It also keeps the assembly more consistent across crews. No welding required. It still gives you disassembly later, similar to standard threaded systems.
Meaning: threaded pipe end, plus coupling already fitted
Why teams use it:
Why maintenance likes it:
You’ll see it often in utility distribution work. Gas distribution systems come up a lot. Crews value repeatable assembly and quick repairs.
SW uses a socket. The pipe slips into it. Then a fillet weld seals the joint. It fits small-bore work where teams want a strong welded connection. It also fits tighter layouts where butt weld prep and alignment get harder.
What it is:
How it seals:
Typical use:small-bore high pressure lines
| SW check | What we look for | Why it matters |
|---|---|---|
| Insertion depth | Proper seating in socket | Controls weld quality and joint strength |
| Fit-up gap practice | Consistent stand-off before welding | Helps manage heat expansion during welding |
| Weld profile | Correct fillet size and continuity | Reduces leak risk and fatigue issues |
Bell end means one pipe end gets enlarged. Another pipe end slides into it. A gasket or solvent weld approach often handles sealing, depending on the material system. You see it a lot in plastic piping. Water and sewer networks use it for speed and simpler alignment.
What it is:
Common materials:
Typical applications:
Bell end systems often reduce fitting count. Fewer fittings can mean fewer leak points and faster installs.
FOE means one end already has a flange welded on. The other end stays per spec, often plain or beveled. It helps at equipment boundaries. Think pumps, tanks, heat exchangers, packaged skids. Bolt-up connections save time during final tie-in. They also support easier removal later.
What it is:
Where it shows up:
Why it helps:
| FOE planning item | What we confirm | What it prevents |
|---|---|---|
| Flange rating and face | Matches equipment spec | Misfit, leaks, rework |
| Bolt-up clearance | Room for tools and studs | Install delays in tight areas |
| Spool orientation | Correct flange rotation alignment | Field cuts and forced offsets |
Specs love abbreviations. They save space. They also cause expensive mistakes when we guess. Let’s decode the common pipe end abbreviations and read a line item like a pro.
| Abbrev | Meaning | What it tells you | Typical connection |
|---|---|---|---|
| PE | Plain End | Square-cut end, no prep | Socket weld, slip-on flange, adaptors |
| PBE | Plain Both Ends | Both ends are plain | Same as PE, both ends |
| POE | Plain One End | One end is plain, other end differs | Mixed-end spool or nipple |
| BE | Beveled End | End prepared for butt welding | Butt weld |
| BBE | Beveled Both Ends | Both ends beveled | Butt weld, both ends |
| BOE | Beveled One End | One end beveled, other end differs | Transition piece, tie-in |
| TE | Threaded End | End has threads | Threaded fittings, couplings, valves |
| TBE | Threaded Both Ends | Both ends threaded | Threaded connections, both ends |
| TOE | Threaded One End | One end threaded, other end differs | Mixed-end nipple, adapter spool |
| Grooved | Grooved End | Machined groove for coupling | Mechanical coupling + gasket |
PE, BE, TE describe an end type.
PBE, BBE, TBE describe both ends.
POE, BOE, TOE describe one end.
This part is simple once you see the pattern. The middle letter tells you the end type. The “B” or “O” tells you how many ends get it.
| Pattern | Means | How to use it |
|---|---|---|
| ___BE | Threaded / Plain / Bevel + Both Ends | Use when both ends match |
| ___OE | Threaded / Plain / Bevel + One End | Use when ends differ, call out the other end too |
One-end labels need extra detail. If it says TOE, we still need to know the other end. It might be plain. It might be beveled. It might be flanged.

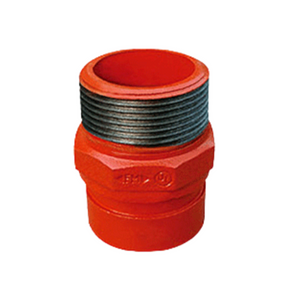

Reducers and special nipples create a new problem. One end has a larger diameter. The other end has a smaller diameter. Specs need a way to say which end gets the bevel or the threads. So we use “large end” and “small end” abbreviations.
| Abbrev | Meaning | Where it shows up | Why it exists |
|---|---|---|---|
| BLE | Bevel Large End | Reducers, special transition pieces | Bevel goes on the larger diameter side |
| BSE | Bevel Small End | Reducers, special transition pieces | Bevel goes on the smaller diameter side |
| TLE | Thread Large End | Reducing nipples, threaded transitions | Threads go on the larger diameter side |
| TSE | Thread Small End | Reducing nipples, threaded transitions | Threads go on the smaller diameter side |
These abbreviations stop confusion during fabrication. They also prevent wrong-end machining, especially on short parts.
Specs vary by company. The core structure stays consistent. We name size, wall series, end condition, then standards. Keep it readable. Keep it unambiguous.
NPS 4 Sch 40, BBE, ASME B16.25
NPS 1 Sch 80, TBE, NPT
NPS 6 Sch 10, Grooved End, coupling-rated system
Want a safer “mixed-end” format? Use two end calls on one line. It removes guesswork.
NPS 2 Sch 40, End A: BE, End B: PE
NPS 1-1/2 Sch 80, End A: TE, End B: BE
Once you read abbreviations this way, you can spot ordering gaps fast. It keeps installs smooth. It keeps returns rare.
Standards keep everyone aligned. Designers, suppliers, weld shops, inspectors. Without them, “BE” or “NPT” turns into arguments, delays, returns. We use standards so parts fit and joints perform as planned.
Butt-weld ends need controlled geometry. Angle, root face, end profile. A common reference for this work is ASME B16.25. It gives a shared baseline for how buttwelding ends should look.
Applies most to BE / BW end preparation
Helps suppliers machine consistent bevels
Helps inspectors verify geometry, not guess
| When you see… | Standard usually matters | What it controls |
|---|---|---|
| BE / BW ends | ASME B16.25 | Butt-weld end geometry expectations |
| Weld-end fittings and flange tie-ins | Project piping spec + welding procedures | Fit-up rules, inspection acceptance |
Threads look simple. They are not forgiving. Thread form, angle, pitch, tolerance. If one part differs, it binds or leaks. Standards define the thread language so parts mate correctly.
ASME B1.1 covers unified inch screw thread definitions used across many industrial products.
NPT often appears in piping specs. Teams commonly reference it using ASME B1.20.1 context in catalogs and procurement documents.
| Thread callout | What you should verify | Why it matters |
|---|---|---|
| “TBE, NPT” | Thread standard, taper form, gauge acceptance | Prevents mismatch, cross-threading, leakage |
| “TE” only | Thread type specified or implied | “TE” alone can hide a standard mismatch |
Procurement tip: don’t treat “NPT” as a casual label. Make sure vendors know the required standard and inspection method. It avoids field fit failures.
Purchasing errors often start here. People write the size. They skip wall thickness. Then fittings don’t match, weld prep changes, threads engage poorly. It becomes rework.
Use NPS + Schedule together. NPS gives the nominal size naming system. Schedule gives the wall thickness series. They work as a pair. If we only specify one, someone guesses the other.
NPS affects mating fit to many components
Schedule affects strength, weight, weld prep feasibility, thread engagement
End prep choices shift as wall thickness changes
| Spec element | Example | What it prevents |
|---|---|---|
| Size + wall series | NPS 4 Sch 40 | Wrong wall thickness, fit-up mismatch |
| End type clarity | BBE or TBE | Wrong end machining, wrong fittings |
| Standard callout | ASME B16.25 or NPT per relevant standard | Geometry drift, thread incompatibility |
When we combine NPS, Schedule, end type, and the right standard reference, vendors ship the correct item. Crews install it without improvising.
Picking a pipe end feels like a small decision. Then the install starts. If it’s wrong, crews pause, parts get re-ordered, leaks show up. We can avoid it using a simple selection process.
Start here. If we answer these questions, the end type usually becomes obvious.
Pressure and temperature: higher values push us toward welded joints and tighter standards
Hazard level:
Vibration and cycling:
Corrosion environment:
Install constraints:
Maintenance strategy:
Labor and schedule risk:
| Project reality | What it tends to favor | Why it happens |
|---|---|---|
| High pressure, high consequence service | Welded ends (BE, sometimes SW) | Joint integrity becomes the priority |
| Occupied building, no hot work | Grooved or threaded solutions | Permits and safety rules limit welding |
| Frequent valve swaps, instrument changes | TE or T&C | Disassembly speed matters more than permanence |
| Short outage window, retrofit work | Grooved | Mechanical coupling reduces install time |
Use this when you need a fast answer. Pick the requirement closest to your job. Then confirm compatibility in the spec.
| Requirement | Best-fit pipe end type | Why it fits | Common watch-outs |
|---|---|---|---|
| Permanent, high-pressure joint | BE | Butt weld joints deliver strong, long-life connections | Welding QA load, fit-up discipline, inspection time |
| Disassembly and maintenance access | TE or T&C | Threads support fast removal and replacement | Vibration sensitivity, thread damage, sealing control |
| Quick field assembly, minimal downtime | Grooved | Couplings install fast and support easy rework | Groove spec match, coupling rating, gasket selection |
| Small-bore, higher-pressure service | SW | Socket weld suits small sizes, compact geometry | Insertion practice, weld profile control, hot work needs |
If you pick Grooved, treat it like a matched system. Groove, coupling, gasket all aligned.
If you pick TE, keep the service realistic. Lower pressure, lower temperature fits best.
If you pick BE, plan inspection capacity. It affects schedule.
Rules of thumb help when information is incomplete. They are not a substitute for a design spec. Still, they keep you out of trouble most days.
Threaded ends tend to small-bore work. As size grows, threads become harder to seal and handle.
BE becomes more common as pressure rises. Welded joints scale better for high integrity service.
Grooved wins on speed. It shines during retrofits, outages, labor shortages.
Exceptions appear fast.
Hot work restrictions can push even medium-duty lines toward grooved couplings.
High vibration areas can push you away from TE, even on small sizes.
Maintenance strategy can override everything. If they must swap parts weekly, they need serviceable joints.
| Industry / setting | Common end types | Why teams lean there | What to double-check |
|---|---|---|---|
| Fire protection systems | Grooved | Fast install, easy modification, common coupling ecosystems | Coupling rating, gasket compatibility |
| Oil & gas / process plants | BE | Joint integrity, long-term reliability, higher pressures | WPS compliance, bevel prep consistency |
| Facilities maintenance zones | TE / T&C | Serviceability, quick swaps, minimal specialty labor | Thread type callout, sealant practice, vibration exposure |
| HVAC mechanical rooms | Grooved | Retrofit-friendly, quick shutdown work, limited hot work | Groove spec, alignment, gasket selection |
Most pipe end mistakes look small on paper. Then they hit the field. Crews stop, inspectors flag issues, schedules slip. These pitfalls show up again and again, even on experienced teams.
The classic problem: the pipe end type does not match the mating hardware. It sounds basic. It still happens, often during rush ordering or last-minute substitutions.
Pipe arrives PE, fittings arrive butt-weld only
Pipe arrives BE, flanges arrive slip-on, crew has to improvise
Pipe arrives grooved, couplings selected for a different groove style or rating
Pipe arrives TE, valve ports use a different thread form or size
| Mismatch scenario | What happens in the field | What we do to prevent it |
|---|---|---|
| PE pipe ordered for a butt-weld design | Extra bevel prep, rework, schedule slip | Call out BE/BBE where butt weld required |
| Grooved pipe, wrong coupling ecosystem | Coupling won’t seat, gasket pinches, leaks | Specify groove spec + coupling rating + gasket material |
| TE pipe, mismatched thread standard | Cross-threading, binding, leak paths | State NPT or other thread type explicitly |
Simple habit helps. Always check ends and mating parts on one screen. Pipe, fitting, flange, valve, coupling. If one item differs, the joint changes.
Size alone is not enough. Wall thickness changes everything. It affects weld prep geometry, fit-up behavior, and even which joint type stays practical.
Thin wall can distort during welding, especially on long runs
Thick wall can need different bevel prep and more weld passes
Thread engagement changes as wall thickness changes
Socket-weld fit-up feels different across schedules
We avoid this pitfall using one rule. Always specify NPS + Schedule. It keeps purchasing and fabrication aligned. It also prevents “looks right” assumptions on site.
“Threaded” is not one universal thing. Different standards exist. Thread geometry matters. Taper matters. If parts do not share the same standard, they do not assemble correctly.
One vendor ships a taper thread, another ships a straight thread
Pitch differs, parts bind, installers force it, threads strip
Seal depends on taper contact plus sealant practice, not magic
| Thread pitfall | Typical symptom | Fix in the spec |
|---|---|---|
| Thread type missing | Parts “almost” fit, then stop | State thread form, e.g., NPT |
| Sealing approach unclear | Slow weeps or immediate leaks | Define sealant or gasket practice per system |
| Repeated assembly, no anti-galling practice | Seizing, torn threads, scrap | Define assembly procedure, lubrication, torque discipline |
Also keep service risk in mind. Threads suit lower pressure and lower temperature service. Hazardous fluids raise consequence of small leaks. It changes the right answer.
Missing end finish callouts create silent failures. Purchasing fills the gap using defaults. Fabrication follows what they got. Field crews discover the mismatch during fit-up.
MTO lists “pipe” only, no end type per end
PO lists “threaded” but no standard, no ends count
Isometric shows a weld symbol, but the BOM calls the pipe plain
Use a repeatable format. It keeps every document consistent.
| Document | Minimum end info to include | Example |
|---|---|---|
| MTO / BOM | End type per end, size, schedule | NPS 4 Sch 40, BBE |
| PO | End type, standard reference where needed | NPS 1 Sch 80, TBE, NPT |
| Isometric | Match weld symbols and end types | Butt weld joint shown → pipe ends called BE |
If ends differ, call both ends. “One end” abbreviations help, but they still need the other end defined. End A, End B labeling removes confusion fast.
Specs should do one job. Remove guessing. If we write pipe end types clearly, purchasing buys the right part, fabrication preps it correctly, and the field crew installs it without rework.
Use this as your baseline. It fits POs, BOMs, and isometric callouts. Keep it consistent across documents.
[Item] Pipe, NPS [__], Sch [__], Material/Grade [__], Standard(s) [__], End A [__], End B [__], Length [__] (SRL/DRL or exact), Qty [__], Testing/QA [__] (if required), Marking/Traceability [__]
NPS + Schedule: size label plus wall series, prevents fit-up surprises
Material/Grade:
Standard(s):
End A / End B:
Length:
Testing/QA:
| Field | Why it matters | Common failure if missing |
|---|---|---|
| NPS + Schedule | Defines fit and wall thickness | Wrong wall, wrong weld prep, poor thread engagement |
| End A / End B | Defines end finish per side | Wrong end machining, wrong fittings ordered |
| Standard reference | Aligns vendor geometry and inspection | Bevel drift, thread mismatch, rejected deliveries |
These examples stay short on purpose. They show structure. You can drop them into a PO line item or a BOM row.
| End type | Copy-ready example | Notes teams usually add |
|---|---|---|
| PE (Plain End) | Pipe, NPS 2, Sch 40, ASTM/Grade [__], End A: PE, End B: PE, Qty [__] |
Length per spool plan, coating/lining if needed |
| BE / BBE (Beveled End) | Pipe, NPS 6, Sch 40, ASTM/Grade [__], End A: BE, End B: BE, ASME B16.25, Qty [__] |
NDE level, WPS reference in project spec |
| TE / TBE (Threaded End) | Pipe, NPS 1, Sch 80, ASTM/Grade [__], End A: TE, End B: TE, Thread: NPT, Qty [__] |
Thread gauge acceptance, sealant practice per spec |
| Grooved | Pipe, NPS 4, Sch 10, ASTM/Grade [__], End A: Grooved, End B: Grooved, Coupling-rated system [__], Qty [__] |
Groove spec, gasket material, coupling model/rating |
| T&C (Threaded & Coupled) | Pipe, NPS 2, Sch 40, ASTM/Grade [__], End A: T&C, End B: T&C, Thread: NPT, Qty [__] |
Coupling type and manufacturer, assembly procedure |
| SW (Socket Weld) | Pipe, NPS 1, Sch 80, ASTM/Grade [__], End A: PE (for SW fit), End B: PE (for SW fit), Joint: Socket weld per project spec, Qty [__] |
Socket-weld fittings spec, stand-off practice per WPS |
| Bell End | Pipe, Size [__], Class/Series [__], Material [PVC/Plastic __], End A: Bell, End B: Spigot/Plain, Seal system [gasket/solvent __], Qty [__] |
Pipe series, gasket type, installation standard |
| FOE (Flange One End) | Pipe spool, NPS 3, Sch 40, ASTM/Grade [__], End A: FOE (Flange rating/face __), End B: BE or PE [__], Qty [__] |
Flange rating, face type, bolt/stud material if bundled |
Mixed ends show up often. Use explicit End A / End B language. It avoids “one end” confusion. It also speeds receiving inspection.
Pipe, NPS 2, Sch 40, Material/Grade [__], End A: TE (NPT), End B: BE (ASME B16.25), Length [__], Qty [__]
Receiving inspection catches the expensive mistakes early. It also protects the install schedule. Use a quick checklist. Keep it consistent.
End finish verification:
Bevel geometry:
Thread quality:
Groove integrity:
Markings:
Quantity and lengths:
| What you find | What it usually means | What you do next |
|---|---|---|
| End type mismatch | Ordering gap or vendor substitution | Hold material, request disposition before fabrication |
| Damaged bevel or threads | Handling or transport issue | Segregate pieces, document, repair plan or replacement |
| Missing markings | Traceability risk | Escalate to QA, confirm cert package |
If you standardize the spec template and inspection checklist, people stop improvising. It keeps the system build predictable.
Real piping rarely stays “same end on both sides.” One side ties into equipment. The other side ties into a line run. Different hardware, different end needs. Mixed end types solve that problem.
Mixed ends show up for practical reasons. They let one pipe piece bridge two connection styles. It saves adapters. It reduces field cutting. It also keeps prefab spools cleaner.
Site tie-ins:
Transitions:
Prefab constraints:
Maintenance strategy:
| Situation | Common mixed-end choice | Why teams choose it |
|---|---|---|
| New welded line connecting to an older threaded valve | End A: TE, End B: BE | No extra adapters, fewer leak points |
| Mechanical room retrofit under a short shutdown | End A: Grooved, End B: Grooved or BE | Fast assembly, easy rework |
| Equipment nozzle connection plus field weld | End A: FOE, End B: BE | Quick bolt-up at equipment, strong weld at line run |
Mixed ends fail when labels get vague. “Threaded” alone is not enough. “One end” abbreviations help, but they still need the other end defined. The cleanest approach uses End A and End B. If you prefer abbreviations, use the one-end logic correctly.
TBE = threaded both ends. It means both ends get threads.
TOE = threaded one end. It means only one end gets threads.
BBE = beveled both ends. It means both ends get bevels.
BOE = beveled one end. It means only one end gets a bevel.
PBE = plain both ends. POE = plain one end.
Here is the trap. “TOE” does not tell you the other end type. It only tells you one end is threaded. We still need the second end called out.
| What someone writes | What it actually means | Risk | Better label |
|---|---|---|---|
| “TOE nipple” | One end threaded, other end unknown | Vendor guesses, wrong end prep arrives | End A: TE (NPT), End B: BE (ASME B16.25) |
| “TBE nipple” | Both ends threaded | Low risk, if thread standard missing | TBE, Thread: NPT |
| “BOE spool” | One end beveled, other end unknown | Shop preps wrong second end | End A: BE, End B: PE |
NPS 2 Sch 40, End A: TE (NPT), End B: BE (ASME B16.25), Length 6 in
NPS 1 Sch 80, TBE, Thread: NPT, Length 4 in
NPS 4 Sch 40, End A: Grooved, End B: BE, Coupling-rated system, Length per spool
Labeling discipline saves money. It keeps vendors from guessing. It keeps crews from re-prepping ends in the field.
The most common pipe end types are Plain End (PE), Beveled End (BE/BW), Threaded End (TE), and Grooved End. PE is square-cut. BE is angled for butt welding. TE uses screw threads for removable joints. Grooved ends use a machined groove plus a coupling and gasket for fast mechanical assembly. You may also see specialty ends like Threaded & Coupled (T&C), Socket Weld (SW), Bell End, and Flange One End (FOE).
They usually describe the same practical intent. “Beveled end” focuses on the pipe’s end preparation, an angled cut. “Butt-weld end” focuses on the joint method, a butt weld between two aligned ends or an end and a fitting. In specs, BE often implies a weld-end suitable for butt welding. If you see “butt-weld end,” verify the bevel standard and weld procedure used in your project.
Many projects use a bevel angle in the 30–37.5° range. Shops often target around 30° using a tolerance such as +5°/−0° for repeatability, plus a small root face (land) near 1.6 mm (±0.8 mm). Some specifications treat 37.5° as a widely used default. The best answer is: follow the project piping spec and the weld procedure requirements, then match inspection criteria.
Yes. “Plain end” means the pipe arrives square-cut, no bevel, no threads. If you need a butt weld joint, the end can be further prepared into a bevel before welding. Many shops do this during spool fabrication or field prep. The key is consistency: the bevel geometry should match the project standard and welding procedure. If the design expects BE, ordering BE up front usually reduces rework and delays.
Choose TE when you want quick assembly and easy disassembly, usually in small-bore, low-to-moderate service lines. Choose SW when you need a stronger welded connection in small sizes, often for higher pressure service. TE avoids welding but can leak under vibration or poor sealing practice. SW requires welding and fit-up discipline, but it delivers a robust joint. Your service conditions, maintenance plan, and site hot-work rules should drive the choice.
These abbreviations tell end type and how many ends get it. BBE = Beveled Both Ends. PBE = Plain Both Ends. TBE = Threaded Both Ends. BOE = Beveled One End. POE = Plain One End. TOE = Threaded One End. “One end” codes still require you to define the other end type. For clarity, many teams label End A and End B directly, especially for mixed-end nipples and transition spools.
Grooved ends are a common choice for fire protection because they support fast installation and easy modifications. The groove works with mechanical couplings and gaskets, so crews can assemble and disassemble sections quickly during maintenance or retrofits. It also helps in buildings where hot work restrictions slow down welding. Still, the “best” end depends on the system design, pressure rating, coupling selection, and the gasket material suited to the service environment.
Threaded joints have inherent leak paths along the thread profile. Under stress, vibration, or distortion, those paths can open and cause leakage. For toxic or flammable fluids, even a small leak can create a serious safety risk. Many designs avoid TE in higher-consequence service and prefer welded joints or engineered mechanical systems with defined ratings and sealing methods. If threads are used, it requires strict controls on thread standard, assembly practice, and sealing materials.
Galling happens when metal surfaces rub and weld microscopically during tightening, then tear. Stainless steel can be prone to it. Seizing can lock the joint, damage threads, and reduce corrosion resistance or hygienic performance. Reduce risk using clean threads, proper lubrication where appropriate, and correct sealant practice. Start threads by hand to avoid cross-threading. Avoid over-torque. Use compatible materials and controlled assembly procedures. Consistency matters more than brute force.
SRL and DRL describe typical mill pipe lengths used in ordering and logistics. SRL (Single Random Length) commonly falls around 16–22 ft (about 4.9–6.7 m). DRL (Double Random Length) commonly falls around 35–45 ft (about 10.7–13.7 m). DRL can reduce the number of field joints on long runs, but it can be harder to transport, stage, and handle. Your site constraints and installation plan should guide the choice.
At minimum, specify NPS and Schedule, material/grade, end finish for each end, applicable standards, quantity, and length requirements. NPS labels the size system. Schedule sets wall thickness, affecting strength, weld prep feasibility, and thread engagement. Add bevel standard for BE, thread type for TE (e.g., NPT), and coupling system details for grooved ends. Include QA needs as required, such as inspection level, thread gauging, or traceability markings.
Pipe end types decide how a system connects, seals, and stays reliable over time. Plain End (PE) works for flexible pairing, often in general service lines. Beveled End (BE/BW) supports butt welding and fits permanent, high-integrity joints. Threaded End (TE) helps small-bore lines where fast removal matters. Grooved ends speed up installation and simplify maintenance, common in HVAC and fire protection. Specialty ends like T&C, SW, bell end, and FOE fill real-world transition needs.
Turn this knowledge into a repeatable process your team can trust. Create a simple selection matrix based on pressure, temperature, hazard level, vibration, and maintenance needs. Standardize purchase order and BOM templates, using End A and End B callouts for clarity. Always specify NPS plus schedule, material grade, and relevant standards. Add receiving checks for bevels, threads, grooves, and markings. These steps reduce rework, speed up installs, and protect safety margins.
