Explore key differences between grooving and drilling pipe joining methods.
Features | Grooving (Grooved Couplings and Fittings) | Drilling (Lathe Grooving and Drilling Service) |
|---|---|---|
Primary function | Creates channel for pipe couplings | Makes holes for fasteners or access |
Process type | Roll or cut groove near pipe end | Drill precise holes with bits |
Tools used | Grooving machines and wrenches | Drilling machines, oil, grinders |
Installation speed | Fast, no welding needed | Slower, multiple steps required |
Safety considerations | No fire, safer for workers | Power tools, higher injury risk |
Pipe wall impact | Maintains pipe strength | Can weaken pipe if done wrong |
Seal reliability | Pressure-tight, leak-resistant seal | Depends on hole and fitting quality |
Maintenance ease | Easy disassembly and repair | More complex, needs frequent checks |
Typical applications | Fire protection, HVAC, water lines | Inspection, fasteners, medium pressure |
Cost and labor | Higher parts cost, lower labor cost | Lower parts cost, higher labor cost |
Many workers must pick between grooving and drilling to join pipes. Grooving makes a channel at the pipe end for grooved fittings. These fittings lock together in a grooved piping system. Drilling makes holes for fasteners or access points. Knowing these methods helps teams choose the best grooved piping system for safety and strength. Each way works best for different jobs and changes how fast and strong the installation is.
Grooving makes a channel at the end of a pipe. This helps join pipes fast and tight. You do not need welding. It makes putting pipes together quicker and safer.
Drilling puts holes in pipes for bolts or for checking inside. It helps with repairs and inspections. Drilling takes more time and needs more skill.
Grooved fittings are used in many places like fire safety and HVAC. They help stop leaks and let pipes move a little.
Grooving is safer for workers because it does not use fire or heat. Drilling needs careful use of power tools.
Use grooving when you want fast and strong pipe connections. Use drilling when you need exact holes for bolts or checking inside.
Grooving makes a channel close to the pipe’s end. This channel helps pipes connect fast and tight in a grooved piping system. Workers use two main ways: roll-grooving and cut-grooving.
Roll-grooving uses a machine to press a groove into the pipe wall. It does not take away any pipe material. This way works best for thin-wall pipes. It keeps the inside of the pipe clean.
Cut-grooving takes out a little pipe material to make the groove. This way gives the pipe a smooth inside surface. It is used when the pipe has a lining or coating that should not be damaged.
Step/Aspect | Roll-Grooving | Cut-Grooving |
|---|---|---|
Process | Cold forming, no material removed | Material removed to form groove |
Groove Characteristics | Indent on inside, recess on outside | Smooth inside surface |
Suitable Pipe Types | Thin-wall, carbon steel, copper, PVC | Thicker wall, lined or coated pipes |
Advantages | Fast, clean, economical | Preserves lining, smooth internal surface |
Grooved piping system installation does not need welding. This makes it a true no-weld way to install pipes.
Grooved fittings are very important in a grooved piping system. Each joint uses three main parts:
A rubber gasket fits into the groove at the pipe’s end. The gasket makes a tight seal.
Two metal housing pieces clamp around the gasket and groove. These housings line up the pipes and hold them together.
Bolts and nuts keep the housing tight. They squeeze the gasket to stop leaks.
This setup lets workers install pipes easily and quickly. The grooved piping system can use rigid or flexible couplings. Flexible couplings help with vibration and let pipes move a little. The system also handles pressure changes well. The seal stays tight even when fluid pressure goes up.
Many industries use grooved piping systems because they work well and save time. Common uses include:
Industry | Typical Applications |
|---|---|
Fire Protection | Sprinkler systems, emergency water lines |
HVAC Systems | Heating, cooling, and ventilation pipes |
Water Treatment | Drinking water, waste management |
Mining and Industrial | Fluid and material transport in tough environments |
Commercial Construction | Plumbing, water supply, heating in buildings |
Marine Systems | Corrosion-resistant piping on ships and rigs |
Food and Beverage | Clean, sealed fluid transport in production lines |
Grooved pipe fittings are easy to install. They stop leaks and let pipes bend a little. These features make them great for many jobs in different industries.
Drilling in pipe systems means making exact holes in pipes. These holes are made for different reasons. Workers use special drill bits and machines to make the holes. Drill pipes are made from strong metals like alloy steel or carbon steel. These pipes are very important for drilling. The pipes connect in sections that are about 30 to 33 feet long. They help hold the tools needed for drilling. The process must follow strict rules like API 5A and 5DP. These rules keep the work safe and high quality. Technicians check each drill pipe for wall thickness, thread strength, and size. Mud pumps move drilling fluids through the pipes. The fluids cool the drill bit and carry away dirt. This setup lets workers drill safely and quickly, even when pressure is high.
Drilling has many important jobs in pipe systems. Workers drill holes to put in fasteners like bolts or screws. These fasteners hold parts together. Holes are also made for inspection, cleaning, or fixing pipes. For example, a hole can be used for an access plug. This plug keeps water out and lets workers get inside for repairs. There are different drill bit styles for different jobs. The 135° split point works for hard metals. The 118° style is better for softer materials. Drilling lets workers add things to pipes without taking out big sections.
Tip: Drilling access points can help save time and lower costs during repairs.
There are many types of drilled connections, and each has its own job. The most common types are Internal Flush (IF), Full Hole (FH), Regular (REG), and Numbered Connection (NC). IF connections keep the inside of the pipe smooth. This helps fluids move easily. FH connections balance flow and pipe size. REG connections are stronger and used for bigger pipes. NC connections use standard threads so they fit well. Some special joints, like double-shouldered or metal-sealing types, are extra strong. They resist pressure and wear. These connections are very important in factories and other tough places. Pipes need to handle high stress, pressure, and rust. Picking the right connection keeps the system safe and working well.
Grooving and drilling use different steps and tools. Grooving makes a channel near the end of the pipe. Drilling makes holes for fittings or places to get inside. The table below shows how they are not the same in how you get ready and put pipes together:
Aspect | Grooving Preparation and Installation | Drilling Preparation and Installation |
|---|---|---|
Preparation | Make a groove by cutting or rolling | Mark the pipe, drill holes, clean and smooth the edges |
Tools | Grooving machines and wrenches | Drilling machines, oil, grinders, and measuring tools |
Installation Components | Grooved fittings and couplings | Mechanical tees or crosses, sealing rings, clamps |
Installation Steps | Make the groove, put on couplings, no welding needed | Drill holes, clean out bits, add fittings, tighten bolts |
Safety and Speed | Faster and safer, no hot work needed | More steps, sealing ring can get damaged if not lined up |
Pipe Wall Thickness | Can use pipes with thinner walls | Can make pipe weaker if not done right |
Grooved piping systems take less time to put together. Workers can connect grooved fittings fast. They do not need to weld or thread the pipes. Drilling takes more time. You must mark, drill, clean, and fit the parts. This makes mistakes more likely and slows things down.
Note: Grooved pipe joining is three to four times faster than welding or flanged systems. Grooving does not use fire or heat, so it is safer for people and the planet.
Grooving and drilling work differently for strength and leaks. Grooved fittings make a tight seal. The seal gets tighter when pressure goes up. This helps stop leaks and lets the pipe hold more pressure. Drilled connections depend on how good the hole and fitting are. If the hole is rough or the sealing ring is not straight, leaks can happen.
The table below shows how long it takes and what skills you need:
Aspect | Grooving (including drilling) | Traditional Welding/Flange Connections |
|---|---|---|
Installation Time | Only a few minutes for each fitting | Takes longer and is harder |
Skill Level Required | Low; most workers can do it after simple training | High; needs skilled welders |
Tools/Equipment Needed | Basic tools like a groove machine and wrench | Harder tools like welding machines and gas tanks |
Safety and Environment | Safer, no fire, fewer accidents | More danger from fumes and fire |
Installation Space | Needs little space, fits in corners | Needs more space, hard in small places |
Process Complexity | Simple, parts are ready from the factory | Harder, needs careful checks |

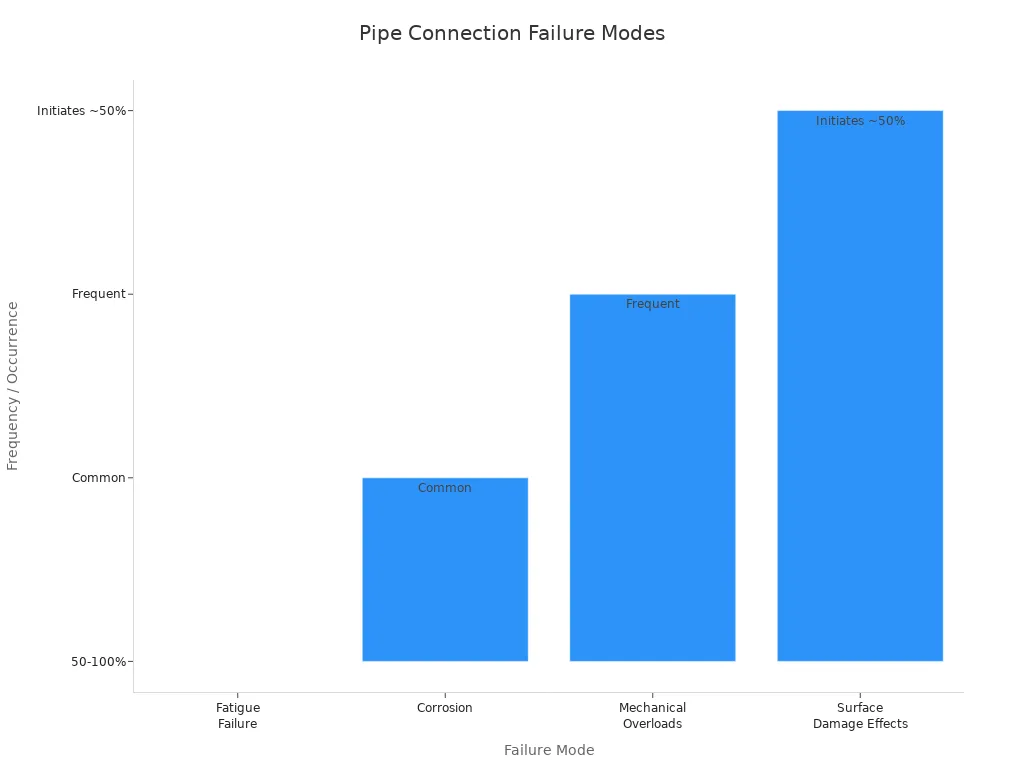

Both grooved and drilled pipe joints can fail from too much use. Damage, rust, and too much force can also cause problems. The chart below shows how often these problems happen:
Grooved pipes handle shaking and movement well. This helps stop leaks and makes them last longer. Drilled pipes can get weak if not done right. This makes them more likely to break when stressed.
Safety is very important when joining pipes. Grooving does not use fire, so there is less chance of a fire starting. Workers do not need hot work permits. There is less risk from smoke or burns. Drilling has more steps and uses more tools. This means workers can get hurt if they are not careful.
It is easier to fix grooved fittings. Workers can take them apart and put them back together fast. The tight seal helps stop leaks and means you do not have to check them as much. Drilled pipes may need more care. If the hole is rough or rust forms, you need to check them more.
Tip: Check pipe joints often to find early signs of damage or rust. This helps keep the system working well.
Grooved piping systems are safer and easier to take care of. That is why many industries like to use them.
Grooved fittings have many good points in today’s piping systems. Many workers pick them because they are easy to use and work well. Here are the main benefits:
You can put grooved couplings on very fast. They are up to five times quicker than welding and three times faster than flanged joints.
It is easy to fix or change them. Workers can take off and put back couplings fast, and often do not need to empty the pipes.
The design lets pipes turn all the way around. This helps stop problems with lining up the pipes.
The joints are tight and do not leak. They last as long as the system and do not need X-ray checks.
You spend less money on workers. Fewer hours are needed to finish the job.
Flexible couplings let the pipes move and shake. They also help when pipes get hot or cold.
Special gaskets make less noise and shaking. This makes the system more comfortable and steady.
Jobsites are safer because there are no flames or bad fumes.
Grooved fittings help the planet by making less waste and pollution.
Grooved fittings can be used with many pipe types like ductile iron, stainless steel, and PVC. They are easy to put in and fix, so people use them a lot in fire safety, HVAC, and water pipes.
But grooved fittings are not always the best choice. The groove must be made just right or leaks can happen. Gaskets can wear out after a while, and the first cost can be high.
Drilling is an old way to join pipes. It makes holes for bolts or places to get inside. Here are the good and bad things about drilling:
Pros | Cons |
|---|---|
Lasts a long time if you use the right thread paste | Can make pipe walls weak if done wrong |
Stops leaks well with pipe dope | Needs careful care and oiling |
Helps stop rust and corrosion | Takes more time and has more steps |
Works for medium pressure | Not good for very high pressure or heat |
Drilled pipe joints are used a lot in factories. Pipe dope keeps leaks away and protects the threads. But drilling takes longer and needs workers who know what they are doing. Pipes can shake loose, and some systems need special tools.
Money and work matter when picking grooving or drilling. Grooved fittings cost more for each joint, but they save money later because they are faster and easier to fix. Workers say they save days on big jobs by using grooved couplings instead of welding or soldering. Small teams can work well, and you do not need as much planning.
Drilling costs less for parts, but you pay more for work because it takes longer and needs skilled workers. Fixing drilled joints can also cost more, especially if there are leaks or rust.
Pick the best way based on how big the job is, how fast it must be done, and what the system needs. Grooved fittings are quick and flexible, but drilling is strong for some jobs.
Picking grooving or drilling depends on what the project needs. Each way has its own good points for joining pipes. Grooved piping system is best when you need to put pipes together fast. It also works well if you want strong seals and pipes that can bend a little. Drilling is better when you need exact holes for bolts or places to look inside.
Project teams should think about these things:
Pipe material: Some pipes, like carbon steel or ductile iron, are good for grooving. Other pipes might need drilling.
Pipe diameter: Big pipes often use grooved piping system for more strength.
Pressure rating: Grooving matches groove depth to how much pressure the system has, like PN16 or Class 150, so the seal stays tight.
Groove or hole size: Grooving needs to be very exact to keep pipes strong. Drilling is about making clean holes.
Machine type: Manual lathes or CNC machines change how good and fast grooving or drilling is.
Tool rigidity: Strong tools help keep the pipe surface nice and the pipe strong.
Note: Grooving is best when you need small channels with high accuracy and no loss of pipe strength. Drilling is picked when you need holes for bolts or checking inside.
The table below shows how project needs affect grooving:
Project Requirement | Influence on Grooving Choice |
|---|---|
Pressure Rating | Groove depth matches system pressure for proper sealing. |
Pipe Material | Works with carbon steel, stainless steel, and ductile iron. |
Application Type | Ideal for fire protection, HVAC, and industrial pipelines. |
Coupling Type | Must fit specific grooved coupling types for system integrity. |
Grooved fittings are great for some jobs. Teams pick them when they need to put pipes together quickly, want tight seals, and easy fixes. Grooved piping system is perfect for:
Fire protection systems, where you need to work fast and stop leaks.
HVAC pipelines, which need to bend and handle shaking.
Industrial pipelines, where pipes must last long and not rust.
Water supply lines in big buildings.
Grooved fittings like reducing couplings, concentric reducers, and eccentric reducers help with different jobs:
Reducing couplings and concentric reducers keep the pipe center and water flow steady. Reducing couplings use fewer parts and make switching sizes quick.
In vertical pipes, concentric reducers stop small pipes from sliding into big ones. Some reducing couplings have washers for extra strength.
Eccentric reducers are best for horizontal and suction pipes. They keep the bottom flat and stop air bubbles, which is important for fire pump suction lines.
NFPA 20 says you need eccentric reducers for suction pipes to stop air from getting trapped and keep water moving right.
Installers like different types. Some like concentric reducers for better flow. Others pick reducing couplings because they are easier to put in.
Eccentric drain caps help drain horizontal pipes with an off-center hole. Both types work for vertical pipes.
Tip: Grooved piping system saves time and work, so it is a top pick for big jobs and important systems.
Drilling is still needed for some pipe jobs. Teams use drilling when they need holes for bolts, checking, or getting inside. Drilling is good for:
Making places to clean or fix pipes.
Adding bolts or screws to hold pipe pieces together.
Putting in inspection plugs or drain caps.
Jobs with medium pressure, where drilled joints work well.
Drilling is used when the pipe type or design does not let you groove. It also helps when you need special holes for unique parts.
For hard or high-pressure jobs, ask an expert. Getting advice makes sure the way you pick is safe and works well.
Picking grooving or drilling depends on what the project wants, the pipe type, and system needs. Teams should think about how fast they can install, how strong the pipes will be, and how easy it is to fix them before choosing.
Grooving and drilling are two ways to connect pipes. Grooved Couplings and Grooved Fittings make pipe joints that are quick, flexible, and stop leaks. Drilling is used to make exact holes for bolts or places to get inside the pipe. Grooved systems help keep workers safe and save time because there is less fire danger and pipes go together faster. Experts say you should pick the joining method that fits the system’s needs, pressure, and where it will be used. Each project is different, so teams should think about what they need and talk to experts to make sure the pipes work well and last a long time.
Grooving makes a channel at the end of the pipe. This channel lets Grooved Couplings or Grooved Fittings connect pipes. Drilling makes holes in the pipe. These holes are for bolts or for checking inside. Grooving joins pipes fast and keeps them tight. Drilling helps add parts or lets workers look inside the pipe.
Use Grooved Couplings when you need to finish the job quickly. They also help stop leaks and make repairs easy. Drilled connections are better if you need to add inspection spots. They also work if the pipe cannot be grooved.
Grooved Fittings work best with ductile iron, carbon steel, and stainless steel pipes. Some plastic pipes and thin pipes cannot be grooved. Drilling works with more types of pipe materials.
Grooving is safer because it does not use heat or fire. Workers do not have to worry about flames or smoke. Drilling uses power tools, so workers must be careful to avoid getting hurt.
Grooved Couplings and Grooved Fittings can work in high-pressure systems if put in right. Drilled connections may not be good for very high pressure. They can leak or make the pipe weaker.
